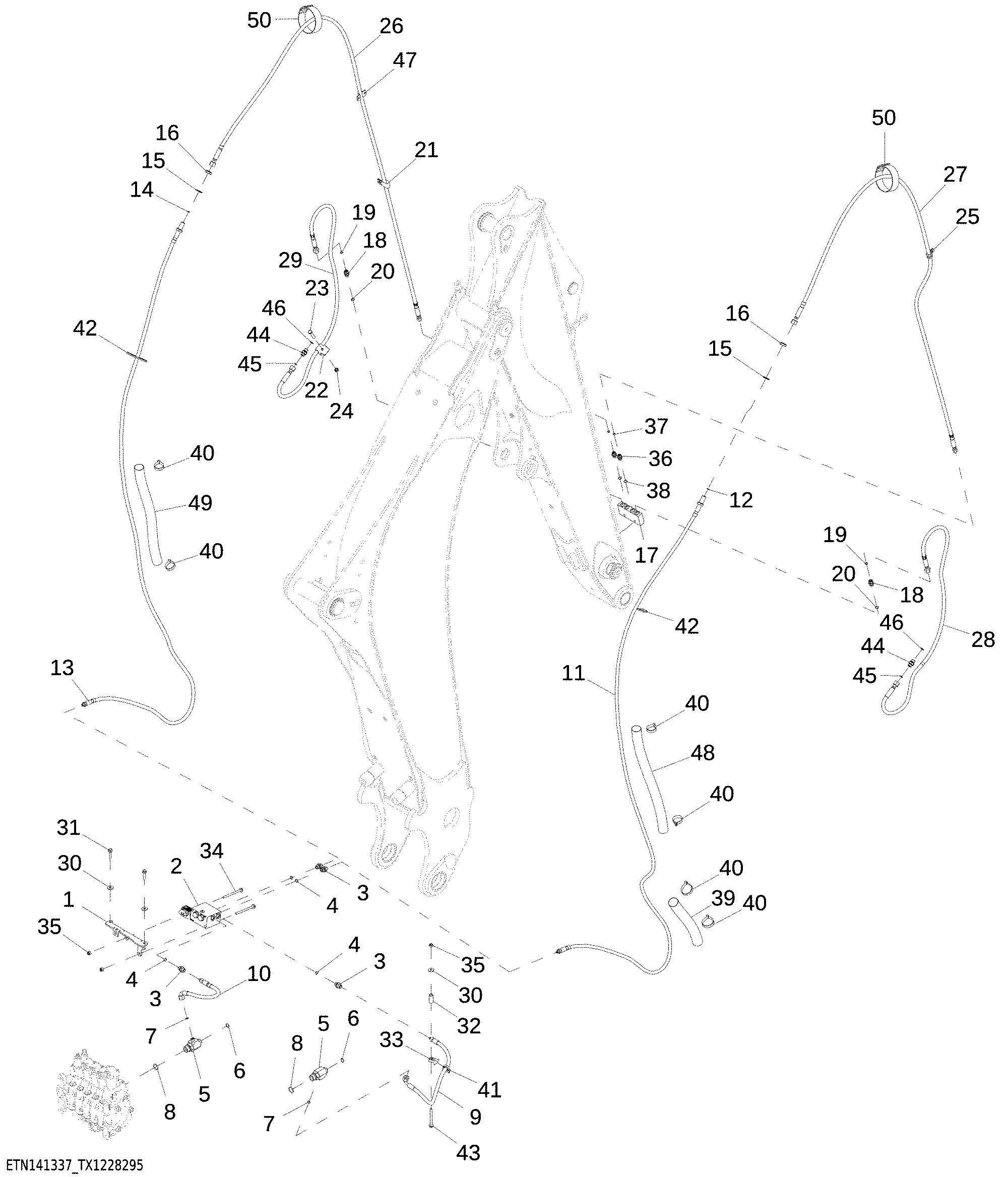

Standard Dipperstick Coupler Hydraulics

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT476344	1	Bracket	-
2	AT472865	1	Solenoid Valve	Components on Separate Page
3	62M1006	4	Adapter Fitting	-
4	51M7041	4	O-Ring	11.300 X 2.200 mm
5	38H5564	2	Tee Fitting	-
6	T77932	2	O-Ring	-
7	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
8	51M7047	2	O-Ring	23.600 X 2.900 mm
9	AT475625	1	Hydraulic Hose	ALSO ORDER 62H1042 OR 62M1010 AND T77613
9	62H1042	1	Adapter Fitting	-
9	62M1010	1	Fitting	-
9	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
10	AT459463	1	Hydraulic Hose	Coupler Valve to Frame Bracket
11	62M1010	1	Fitting	-
11	T77613	3	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
11	38H1285	1	Union Fitting	-
11	62H1042	1	Adapter Fitting	-
11	AT475629	1	Hydraulic Hose	ALSO ORDER 62H1042 OR 62M1010, 38H1285 AND (3) T77613
12	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
13	AT458643	1	Hydraulic Hose	Frame Bracket to Bulkhead Bracket
14	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
15	24H1391	2	Washer	25/32" X 1-5/16" X 0.060"
16	38H5091	2	Nut	11/16"
17	T369321	1	Manifold	Backhoe Hydraulic Coupler
18	38H5002	2	Adapter Fitting	-
19	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
20	51M7041	2	O-Ring	11.300 X 2.200 mm
21	R125461	1	Clamp	-
22	T159954	1	Clamp	-
23	19M7572	1	Cap Screw	M10 X 45
24	14M7274	1	Nut	M10
25	T74416	1	Clamp	-
26	AT475973	1	Hydraulic Hose	Bulkhead Bracket to Coupler Manifold
27	AT458644	1	Hydraulic Hose	Bulkhead Bracket to Coupler Manifold
28	AT459467	1	Hydraulic Hose	Bulkhead Bracket to Coupler Manifold
29	AT459468	1	Hydraulic Hose	Coupler Manifold To Coupler Cylinder
30	24H1887	3	Washer	11/32" X 1" X 0.134"
31	19M8317	2	Screw	M8 X 40
32	28H3379	1	Spacer	0.493" X 0.675" X 1-9/16"
33	H224072	1	Clamp	-
34	19M7873	2	Screw	M8 X 110
35	14M7298	3	Flange Nut	M8
36	38H5011	2	Adapter Fitting	-
37	T77814	2	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
38	51M7041	2	O-Ring	11.300 X 2.200 mm
39	T384168	1	Hose Guard	MAKE FROM T78606,CTL 371 mm
40	H224073	6	Tie Band	-
41	H224073	1	Tie Band	-
42	H77698	2	Tie Band	-
43	19M7913	1	Screw	M8 X 90
44	38H5037	2	Adapter Fitting	-
45	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
46	51M7042	2	O-Ring	13.300 X 2.200 mm
47	T392103	1	Support	-
48	-	1	Part 55	MAKE FROM PS-B-33,CTL 650 mm
49	-	1	Part 56	MAKE FROM PS-B-33,CTL 650 mm
50	T238029	2	Adjusting Strap	-
