Standard Dipperstick and Auxiliary Hydraulics

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H5152	1	Adapter Fitting	-
2	T77932	1	O-Ring	-
3	51M7047	1	O-Ring	23.600 X 2.900 mm
4	38H5192	1	Fitting	-
5	T77932	1	O-Ring	-
6	51M7045	1	O-Ring	19.300 X 2.200 mm
7	T162004	8	Clamp	-
8	T162005	2	Strap	-
9	19M7873	4	Screw	M8 X 110
10	AT432881	1	Hydraulic Hose	Auxiliary Return
11	T77858	1	O-Ring	-
12	AT448713	1	Hydraulic Hose	Auxiliary Return
13	T77858	1	O-Ring	-
14	AT456526	1	Hydraulic Hose	-
15	T77858	1	O-Ring	-
16	AT456526	1	Hydraulic Hose	-
17	T77858	1	O-Ring	-
18	AT439106	1	Oil Line	-
19	AT439107	1	Oil Line	-
20	03M7192	6	Bolt	M10 X 30
21	T160376	6	Clamp	-
22	24M7239	8	Washer	10.700 X 21 X 2.500 mm
23	14M7274	6	Nut	M10
24	T205637	1	Bracket	-
25	T205636	1	Bracket	-
26	T338070	2	Reducer	-
27	T77858	2	O-Ring	-
28	64M1008	2	Drain Plug	-
29	51M7047	2	O-Ring	23.600 X 2.900 mm
30	24H1263	2	Washer	1-1/4" X 2" X 0.060"
31	38H5094	2	Nut	1-3/16"
32	T24959	2	Clamp	-
33	24M7238	2	Washer	8.700 X 17 X 2 mm
34	19M7932	2	Cap Screw	M8 X 16
35	T400277	1	Support	-
36	38H5438	2	Adapter Fitting	-
37	T77932	2	O-Ring	-
38	51M7047	2	O-Ring	23.600 X 2.900 mm
39	38H5166	1	Elbow Fitting	-
40	T77932	1	O-Ring	-
41	51M7047	1	O-Ring	23.600 X 2.900 mm
42	AT432131	1	Hydraulic Hose	Bucket Cylinder Head End
43	AT439102	1	Hydraulic Hose	Head End
44	T77932	2	O-Ring	-
45	AT432883	1	Hydraulic Hose	Bucket Cylinder Rod End
46	AT439104	1	Hydraulic Hose	Rod End
47	T77932	2	O-Ring	-
48	AT434777	1	Hydraulic Hose	Bucket Cylinder Head End
49	AT434778	1	Hydraulic Hose	Bucket Cylinder Rod End
50	14M7298	4	Flange Nut	M8
51	T105773	1	Guide	-
52	C16054	1	Clamp	-
53	19M7572	2	Cap Screw	M10 X 45
54	24M7294	2	Washer	26 X 39 X 4 mm
55	38H5093	2	Nut	1"
56	T345677	1	Support	-

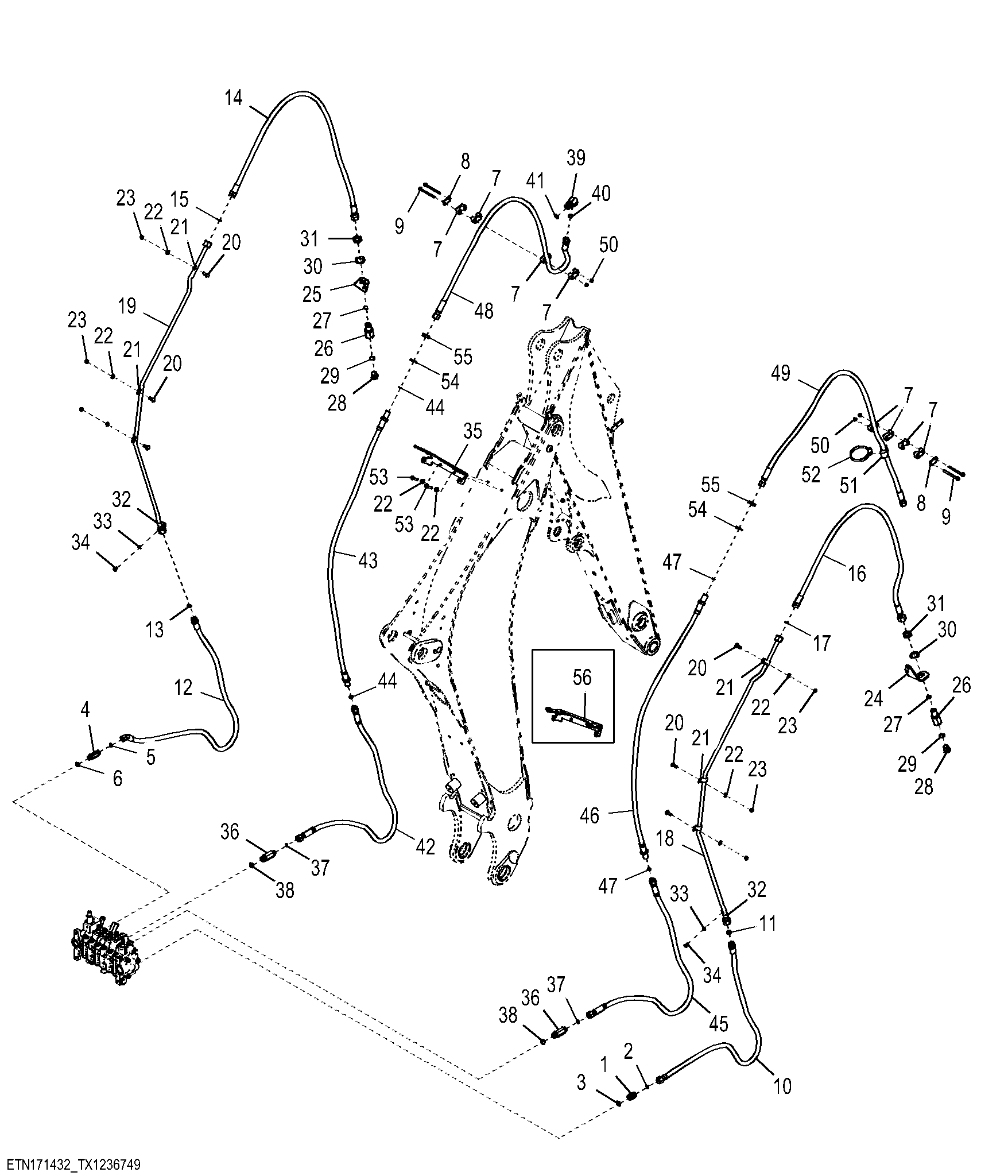

Standard Dipperstick and Auxiliary Hydraulics
