Открытый узел

Premium Radio

Premium Radio

Premium Radio

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

Premium Radio

Нет текстового описания

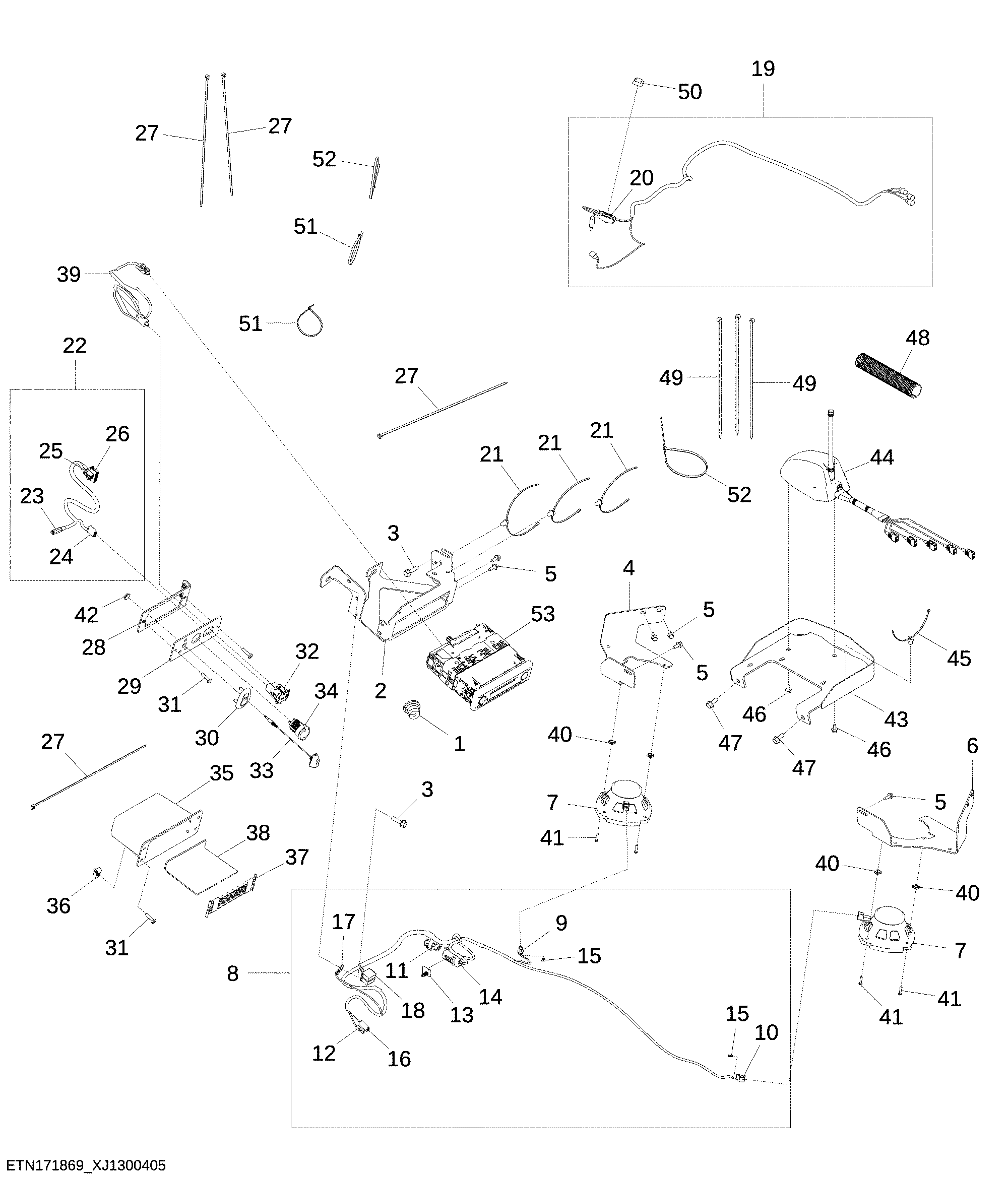

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R170990	1	Grommet	-
2	T390906	1	Bracket	-
3	19M7868	2	Screw	M8 X 30
4	T186444	1	Bracket	Speaker RH
5	19M7775	6	Screw	M6 X 16
6	T186443	1	Bracket	Speaker LH
7	AT342588	2	Speaker	-
8	AT476147	1	Wiring Harness	Premium Radio Harness
9	57M8174	1	Elec. Connector Housing	Speaker RH, B30
9	57M7501	2	Elec. Connector Terminal	-
10	57M8174	1	Elec. Connector Housing	Speaker LH, B31
10	57M7501	2	Elec. Connector Terminal	-
11	57M9772	1	Elec. Connector Housing	Antenna Power Harness Connector, X99B
11	57M10631	2	Elec. Connector Terminal	-
12	57M11263	1	Elec. Connector Housing	Overhead 12 V Power Port_2, X39–02
12	57M11213	1	Elec. Connector Terminal	-
13	57M9939	1	Elec. Connector Accessory	-
14	57M9746	1	Elec. Connector Housing	Cab Harness-To-Radio Harness Connector, X9A
14	57M9814	1	Elec. Connector Cavity Plug	-
14	57M9811	3	Elec. Connector Terminal	-
15	57M7724	2	Electrical Connector Assy	-
16	57M9452	1	Elec. Connector Housing	Overhead 12 V Power Port_1, X39–01
16	57M9454	1	Elec. Connector Terminal	-
17	57M10243	1	Elec. Connector Terminal	Battery Ground, W4
18	57M9127	1	Elec. Connector Terminal	Radio_AB Connector, A9–01
18	57M10226	7	Elec. Connector Terminal	-
18	57M8740	2	Elec. Connector Terminal	-
19	AT429473	1	Wiring Harness	Antenna Cable
20	57M9776	1	Elec. Connector Housing	-
21	T364089	3	Clamp	-
22	AT462197	1	Wiring Harness	Auxillary Radio Input
23	57M10442	1	Elec. Connector Housing	Microphone, B1
24	57M10443	4	Elec. Connector Terminal	-
24	57M10439	1	Elec. Connector Housing	Auxillary Input, A25
25	57M11029	1	Elec. Connector Housing	Radio, A24_2
25	57M10451	1	Elec. Connector Terminal	-
26	57M10661	1	Elec. Connector Housing	Radio, A24_3
26	57M8740	6	Elec. Connector Terminal	-
27	H77698	4	Tie Band	-
28	AT436365	1	Bracket	Radio Bracket Extension
29	T337571	1	Plate	-
30	T348574	1	Bezel	-
31	21M7310	6	Screw	M6 X 25
32	AXE11061	1	Electrical Connector Assy	-
33	AXE13430	1	Radio Accessory	-
34	GY20126	1	Socket Outlet	-
35	T337584	1	Air Duct	-
36	R134098	4	Nut	-
37	AT424464	1	Retainer	-
38	T339630	1	Pad	-
39	AL206901	1	Wiring Harness	Radio To USB Port
40	TT101176	6	Nut	-
41	T182888	6	Screw	-
42	H117239	3	Push Nut	-
43	AT446508	1	Bracket	Antenna Bracket
44	AT418063	1	Antenna	Active Multiband
44	AT427316	1	Antenna	-
45	T209627	1	Clamp	-
46	19M7774	2	Screw	M6 X 12
47	19M7866	2	Screw	M8 X 20
48	T355389	1	Conduit	-
49	E73003	3	Tie Band	-
50	T380249	1	Elec. Connector Accessory	-
51	H77698	2	Tie Band	-
52	H77698	2	Tie Band	-
53	AL232067	1	Radio	-
