Plumbing Kit, Backhoe Coupler

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BYT10078	1	Quick Coupler Kit	310SL HL 410L WHOLE GOODS
2	38H5091	2	Nut	11/16"
3	24H1391	2	Washer	25/32" X 1-5/16" X 0.060"
4	AT476344	1	Bracket	-
5	AT472865	1	Solenoid Valve	Backhoe Coupler Components on Separate Page
6	38H5037	6	Adapter Fitting	-
7	T77613	6	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
8	51M7042	6	O-Ring	13.300 X 2.200 mm
9	38H5564	2	Tee Fitting	-
10	T77932	2	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
11	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
12	51M7047	2	O-Ring	23.600 X 2.900 mm
13	AT475624	1	Hydraulic Hose	Backhoe Coupler Valve Port BH 310SL HL 410L, ALSO ORDER 62H1042 OR 62M1010 AND T77613
14	AT475625	1	Hydraulic Hose	Backhoe Coupler Valve Port BR 310SL HL 410L, ALSO ORDER 62H1042 OR 62M1010 AND T77613
15	62H1042	1	Adapter Fitting	-
15	T77613	3	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
15	38H1285	1	Union Fitting	-
15	62M1010	1	Fitting	-
15	AT475629	1	Hydraulic Hose	Backhoe Coupler Valve Port CH 410L, ALSO ORDER 62H1042 OR 62M1010, 38H1285 AND (3) T77613
16	24H1391	2	Washer	25/32" X 1-5/16" X 0.060"
17	38H5091	2	Nut	11/16"
18	T369321	1	Manifold	Coupler Plumbing
19	38H5002	2	Adapter Fitting	-
20	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
21	51M7041	2	O-Ring	11.300 X 2.200 mm
22	R125461	1	Clamp	-
23	T159954	1	Clamp	-
24	19M7572	1	Cap Screw	M10 X 45
25	14M7274	1	Nut	M10
26	T74416	1	Clamp	-
27	AT475973	1	Hydraulic Hose	Boom To Coupler Manifold Standard Dipperstick 410L
28	AT458644	1	Hydraulic Hose	Boom To Coupler Manifold Standard Dipperstick 410L
29	AT459467	1	Hydraulic Hose	Coupler Cylinder Port H 310SL HL 410L Coupler Manifold To Coupler Cylinder
30	AT459468	2	Hydraulic Hose	Coupler Cylinder Port R 310SL HL 410L Coupler Manifold To Coupler Cylinder
31	24H1887	3	Washer	11/32" X 1" X 0.134"
32	19M8317	2	Screw	M8 X 40
33	28H3379	1	Spacer	0.493" X 0.675" X 1-9/16"
34	H224072	1	Clamp	-
35	19M7873	2	Screw	M8 X 110
36	14M7298	3	Flange Nut	M8
37	38H5011	2	Adapter Fitting	-
38	T77814	2	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
39	51M7041	2	O-Ring	11.300 X 2.200 mm
40	-	1	Part 44	MAKE FROM T78606,CTL 371 mm
41	H224073	5	Tie Band	-
42	AT475633	1	Hydraulic Hose	Backhoe Coupler Valve Port CR 410L, ALSO ORDER 62H1042 OR 62M1010, 38H1285 AND (3) T77613
43	38H1285	2	Union Fitting	-
44	T77613	4	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
45	19M7913	1	Screw	M8 X 90
46	T392103	1	Support	Light Saddle Double Ended
47	T238029	1	Adjusting Strap	-
48	-	1	Part 52	MAKE FROM PS-B-33,CTL 650 mm (25.59 in)
49	-	1	Part 53	MAKE FROM PS-B-33,CTL 650 mm (25.59 in)
50	24H1391	2	Washer	25/32" X 1-5/16" X 0.060"
51	AT475629	1	Hydraulic Hose	-
52	AT475638	1	Hydraulic Hose	Backhoe Coupler Valve Port CR, ALSO ORDER 62H1042 OR 62M1010, 38H1285 AND (3) T77613
53	AT459189	1	Hydraulic Hose	Boom To Coupler Manifold Extendable Dipperstick 410L
54	AT475974	1	Hydraulic Hose	Boom To Coupler Manifold Extendable Dipperstick 410L
55	T271650	1	Clamp	-
56	24M7239	2	Washer	10.700 X 21 X 2.500 mm
57	19M7550	2	Cap Screw	M10 X 35
58	14M7296	2	Flange Nut	M10
59	38H5091	2	Nut	11/16"
60	T392103	1	Support	Light Saddle Double Ended
61	H77698	2	Tie Band	-
62	38H1285	1	Union Fitting	-
63	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
64	T238029	2	Adjusting Strap	-
65	AT475628	1	Hydraulic Hose	Backhoe Coupler Valve Port CH, ALSO ORDER 62H1042 OR 62M1010, 38H1285 AND (3) T77613
66	AT475632	1	Hydraulic Hose	Backhoe Coupler Valve Port CR, ALSO ORDER 62H1042 OR 62M1010, 38H1285 AND (3) T77613
67	24H1391	2	Washer	25/32" X 1-5/16" X 0.060"
68	38H5091	2	Nut	11/16"
69	AT475940	1	Hydraulic Hose	Boom To Coupler Manifold Extendable Dipperstick 310SL HL
70	AT475968	1	Hydraulic Hose	Boom To Coupler Manifold Extendable Dipperstick 310SL HL
71	T271650	2	Clamp	-
72	14M7296	2	Flange Nut	M10
73	19M8328	2	Screw	M10 X 25
74	AT459467	1	Hydraulic Hose	Bracket To Coupler Manifold
75	AT459468	1	Hydraulic Hose	Coupler Manifold To Coupler Cylinder
76	T392103	2	Support	Light Saddle Double Ended
77	H77698	2	Tie Band	-
78	H77698	2	Tie Band	-
79	38H1285	1	Union Fitting	-
80	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
81	T238029	1	Adjusting Strap	-
82	24M7239	2	Washer	10.700 X 21 X 2.500 mm
83	19M7550	2	Cap Screw	M10 X 35
84	R125461	1	Clamp	-
85	AT483705	1	Hydraulic Hose	Bracket To Coupler Manifold
86	AT483706	1	Hydraulic Hose	Bracket To Coupler Manifold
87	62M1006	4	Adapter Fitting	-
88	51M7041	4	O-Ring	11.300 X 2.200 mm
89	T384168	1	Hose Guard	-
90	H224073	2	Tie Band	-
91	T74416	2	Clamp	-
92	T271650	1	Clamp	-

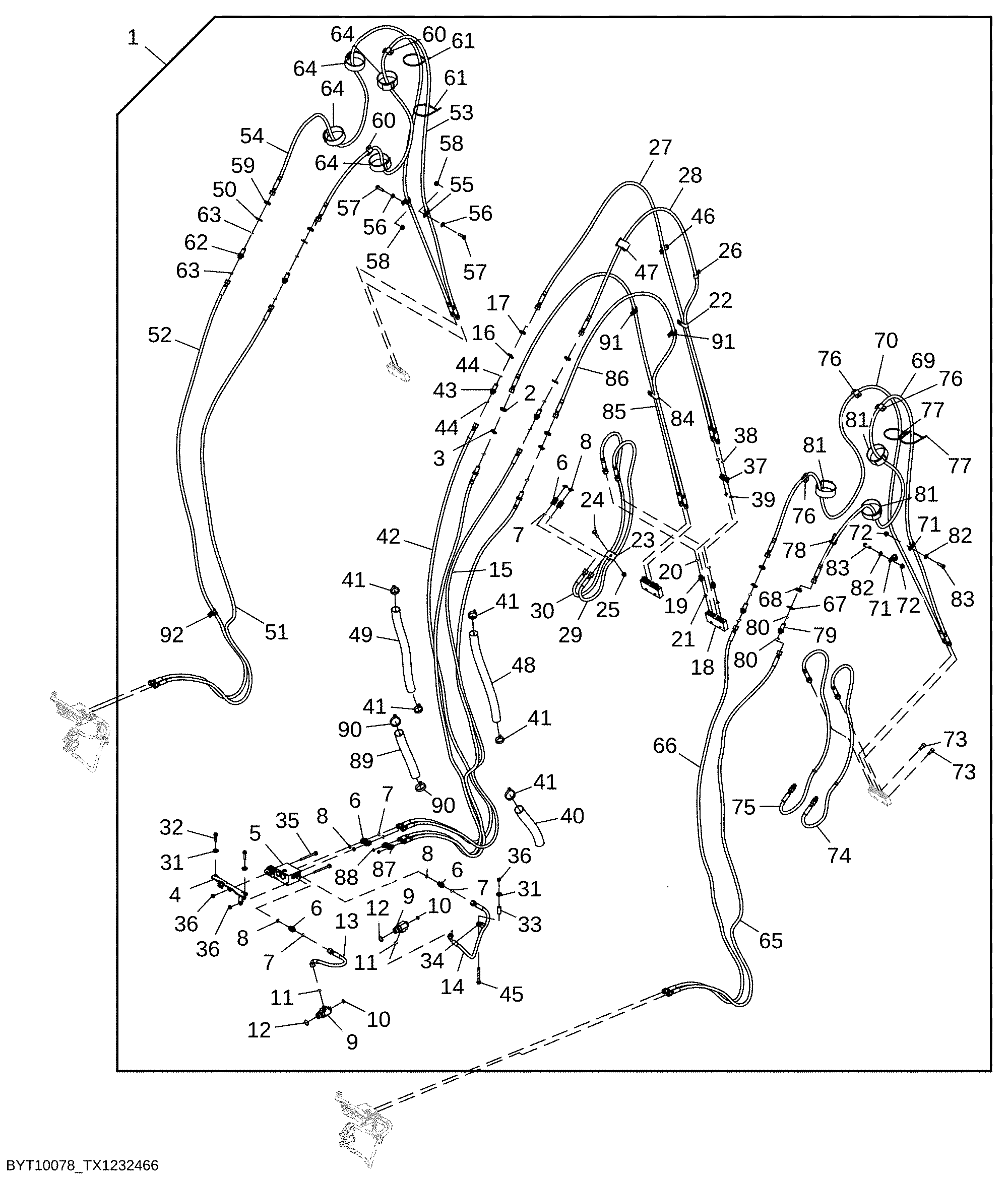

Plumbing Kit, Backhoe Coupler
