Открытый узел

Loader Auxiliary Kit, Single Liver

Loader Auxiliary Kit, Single Liver

Loader Auxiliary Kit, Single Liver

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

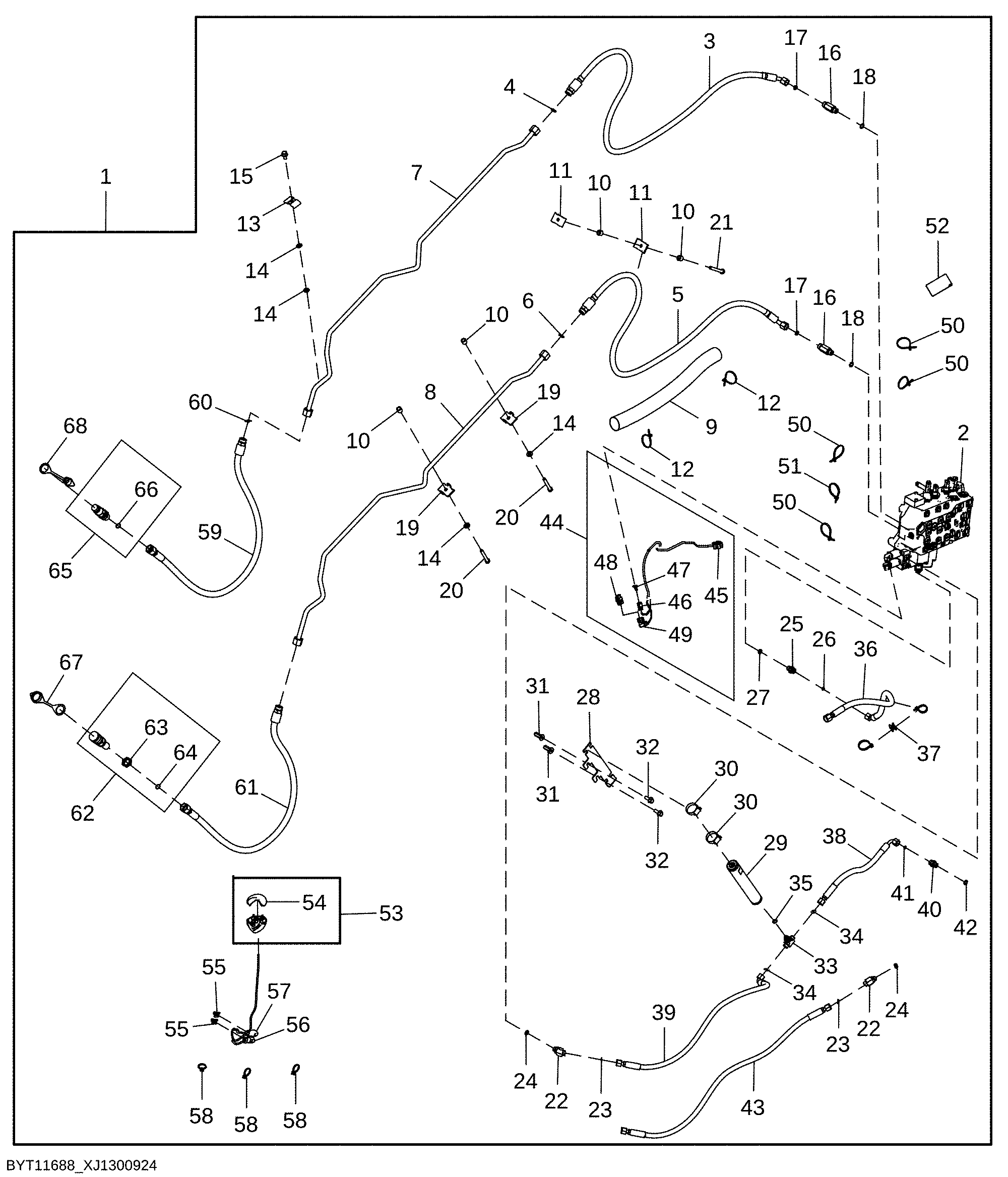

Loader Auxiliary Kit, Single Liver

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BYT11688	1	Valve Kit	WHOLE GOODS
2	AT519952	1	Control Valve	Components on Separate Page
3	AT484741	1	Hydraulic Hose	Loader Third Function Valve, INCLUDES T77932
4	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
5	AT484742	1	Hydraulic Hose	Loader Third Function Head, INCLUDES T77932
6	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
7	AT432171	1	Oil Line	-
8	AT432172	1	Oil Line	-
9	-	1	Part 9	MAKE FROM PS-B-35, CTL 609.6 mm
10	28H3381	4	Spacer	0.493" X 0.675" X 5/8"
11	R46919	2	Half Clamp	-
12	R44302	2	Tie Band	-
13	T217085	1	Clamp	-
14	T77932	4	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
15	19M7784	1	Screw	M10 X 20
16	38H5153	2	Adapter Fitting	-
17	T77857	2	O-Ring	-
18	51M7043	2	O-Ring	15.300 X 2.200 mm
19	T159954	2	Clamp	-
20	19M7875	2	Cap Screw	M10 X 70
21	19M8081	1	Cap Screw	M10 X 80
22	38H5154	2	Elbow Fitting	-
23	T77613	2	O-Ring	-
24	51M7042	2	O-Ring	13.300 X 2.200 mm
25	38H5037	1	Adapter Fitting	-
26	T77613	1	O-Ring	-
27	51M7042	1	O-Ring	13.300 X 2.200 mm
28	T300004	1	Bracket	-
29	T290050	1	Label	-
29	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
29	T26209	1	Ring	-
29	AT196760	1	Valve Kit	-
29	T215216	1	Label	-
29	T215217	1	Label	-
29	T180944	1	Label	-
29	AT376347	1	Accumulator Kit	-
29	AT225574	1	Hydraulic Accumulator	-
30	AR44217	2	Clamp	-
31	T148409	2	Nut	-
32	19M7785	2	Screw	M10 X 25
33	38H3016	1	Tee Fitting	-
34	T77613	2	O-Ring	-
35	R26448	1	O-Ring	-
36	AT484597	1	Hydraulic Hose	Auxiliary Single Lever Loader Control Drain
37	RE345761	1	Swivel	-
38	AT433739	1	Hydraulic Hose	Hydraulic Single Lever Loader Control Backhoe Valve To Acctuator
39	AT484596	1	Hydraulic Hose	Hydraulic Single Lever Loader Control Acctuator To Soleniod Valve
40	T340340	1	Check Valve	-
41	T77613	1	O-Ring	-
42	51M7042	1	O-Ring	13.300 X 2.200 mm
43	AT484598	1	Hydraulic Hose	Auxiliary Single Lever Loader Control Supply Pilot
44	AT494186	1	Wiring Harness	Auxiliary Control
45	57M9817	1	Elec. Connector Housing	Loader Auxiliary Solenoid Harness Connector, X82B
45	57M9814	1	Elec. Connector Cavity Plug	-
45	57M10631	3	Elec. Connector Terminal	-
46	57M8021	1	Electrical Connector Assy	Loader Auxiliary Solenoid 1, Y20
46	R78065	2	Elec. Connector Terminal	-
47	57M8022	1	Elec.Connect Locking Device	-
48	57M9772	1	Elec. Connector Housing	Loader Auxiliary Solenoid 2, Y21
48	57M10631	2	Elec. Connector Terminal	-
49	57M10155	1	Elec. Connector Accessory	-
50	R44302	4	Tie Band	-
51	R44302	1	Tie Band	-
52	T351612	1	Label	-
53	AT428490	1	Grip	-
54	T339747	1	Grip	-
55	57M9940	2	Elec. Connector Accessory	-
56	57M7628	1	Electrical Connector Assy	-
57	57M7629	1	Elec. Connector Housing	-
58	R44302	3	Tie Band	-
59	AT435061	1	Hydraulic Hose	To loader Coupler Plumbing, INCLUDES T77932
60	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
61	AT435061	1	Hydraulic Hose	To loader Coupler Plumbing, INCLUDES T77932
61	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
62	KV11305	1	Hyd. Quick-Connect Coupler	-
63	T80306	1	Nut	-
64	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
65	AT312876	1	Hyd. Quick-Connect Coupler	-
66	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
67	T188880	1	Cap	-
68	T188879	1	Cap	-
