Открытый узел

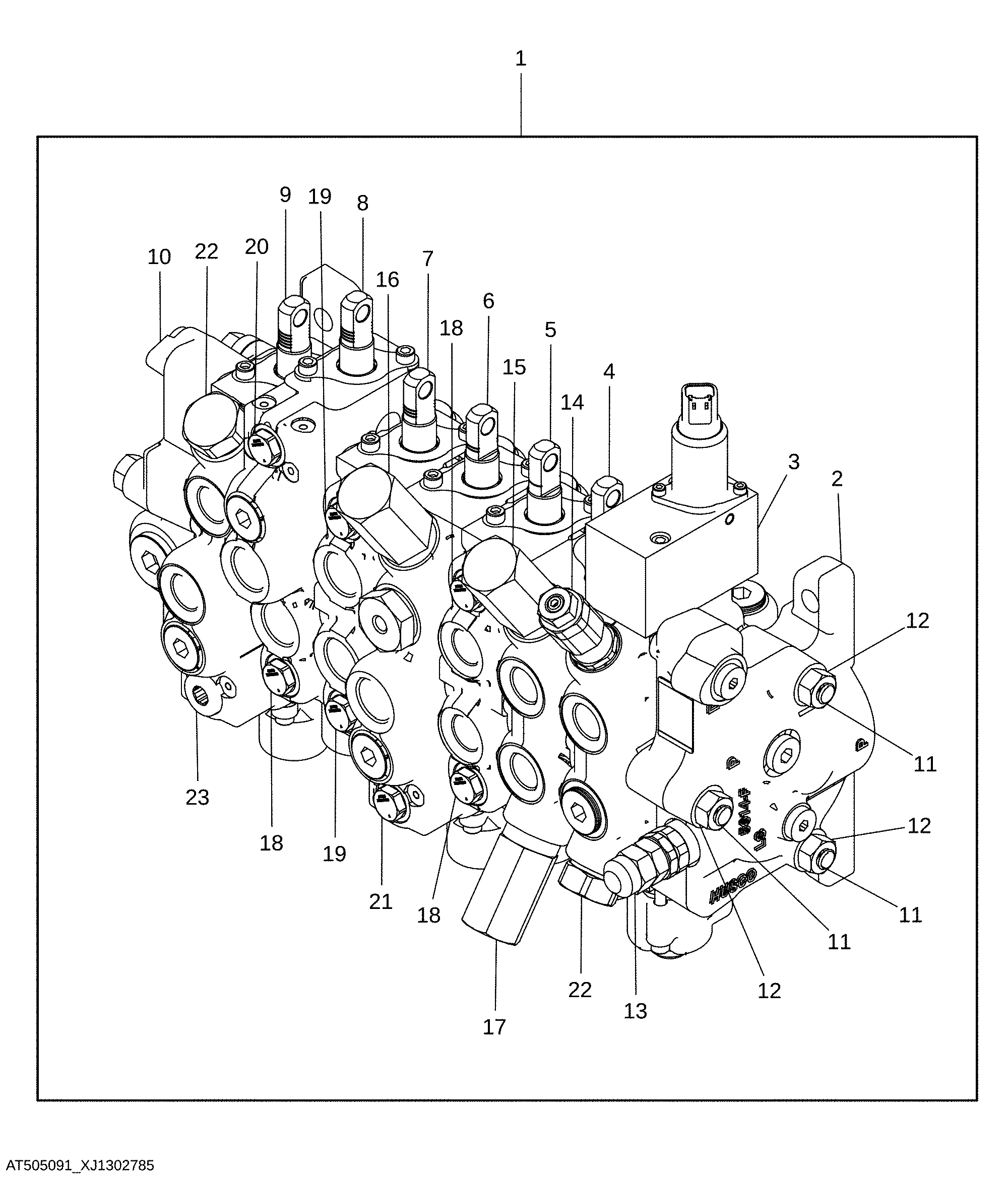

Hydrauliv Actuated control valve with selective flow,Extended and Pop Auxilliary Flow valve

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT505091	1	Manual Hydraulic Valve	Convenience Assembly Hydraulic Actuated Main Control Valve
2	AT444016	1	Hyd Actuated Control Valve	Inlet Valve Section, Components on Separate Page
3	AT519209	1	Hyd Actuated Control Valve	Swing Valve Section, Components on Separate Page
4	AT444075	1	Hyd Actuated Control Valve	Boom Valve Section, Components on Separate Page
5	AT444076	1	Hyd Actuated Control Valve	Swing Valve Section, Components on Separate Page
6	AT444077	1	Hyd Actuated Control Valve	Boom Valve Section, Components on Separate Page
7	AT444078	1	Hyd Actuated Control Valve	Bucket Valve Section, Components on Separate Page
8	AT444079	1	Hyd Actuated Control Valve	Crowd Valve Section, Components on Separate Page
9	AT444080	1	Hyd Actuated Control Valve	Components on Seperate Page
10	AT444017	1	Hyd Actuated Control Valve	Outlet Valve Section, Components on Separate Page
11	T170269	6	Nut	-
12	T352187	3	Rod	-
13	AT444010	1	Pressure Relief Valve	INCLUDES 51M7044
13	51M7044	1	O-Ring	17.300 X 2.200 mm
14	AT444008	2	Pressure Relief Valve	INCLUDES 51M7044
14	51M7044	2	O-Ring	17.300 X 2.200 mm
15	AT444009	1	Pressure Relief Valve	INCLUDES 51M7044
15	51M7044	2	O-Ring	17.300 X 2.200 mm
16	AT485803	1	Pressure Relief Valve	Components on Seperate Page
17	AT444007	3	Pressure Relief Valve	INCLUDES 51M7044
17	51M7044	3	O-Ring	17.300 X 2.200 mm
18	R79060	1	O-Ring	-
18	AT314538	1	Seal Kit	-
18	R111235	1	Back-Up Ring	-
18	AT328991	1	Pressure Relief Valve	INCLUDES AT314538, T107887, R111235, R79060
18	T107887	1	O-Ring	-
19	AT328991	1	Pressure Relief Valve	INCLUDES AT314538, T107887, R111235, R79060
19	AT314538	1	Seal Kit	-
19	T107887	1	O-Ring	-
19	R111235	1	Back-Up Ring	-
19	R79060	1	O-Ring	-
20	T352420	1	O-Ring	-
20	T77857	1	O-Ring	-
20	51M7044	1	O-Ring	17.300 X 2.200 mm
20	AT424429	1	Fitting Plug	INCLUDES 51M7044, T77857, T352420
21	AT221396	1	Flow Control Hyd. Valve	INCLUDES AT314538, T107887, R111235, R79060
21	AT314538	1	Seal Kit	-
21	T107887	1	O-Ring	-
22	AT359012	1	Pressure Relief Valve	INCLUDES AT314538, T107887, R111235, R79060
22	AT314538	1	Seal Kit	-
22	T107887	1	O-Ring	-
22	R111235	1	Back-Up Ring	-
22	R79060	1	O-Ring	-
23	AT182377	1	Pressure Relief Valve	Components on Seperate Page

Hydrauliv Actuated control valve with selective flow,Extended and Pop Auxilliary Flow valve

Нет текстового описания
