Extendable Dipperstick Plumbing with Auxiliary Hydraulics

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT327155	1	Hose Support	-
2	T400277	1	Support	-
3	19M7786	2	Screw	M10 X 30
4	38H5076	2	Adapter Fitting	-
5	T77857	2	O-Ring	-
6	51M7045	2	O-Ring	19.300 X 2.200 mm
7	38H5152	1	Adapter Fitting	-
8	T77932	1	O-Ring	-
9	51M7047	1	O-Ring	23.600 X 2.900 mm
10	38H5166	1	Elbow Fitting	-
11	T77932	1	O-Ring	-
12	51M7047	1	O-Ring	23.600 X 2.900 mm
13	AT432128	1	Hydraulic Hose	Extension Cylinder Head End
14	AT432131	1	Hydraulic Hose	Bucket Cylinder Head End
15	AT432881	1	Hydraulic Hose	Auxiliary Return, INCLUDES T77858
16	AT432882	1	Hydraulic Hose	Extension Cylinder Rod End
17	AT432883	1	Hydraulic Hose	Bucket Cylinder Rod End
18	AT432993	1	Hydraulic Hose	Extension Cylinder Head End
19	AT432993	1	Hydraulic Hose	Extension Cylinder Rod End
20	AT432994	1	Hydraulic Hose	Auxiliary Pressure, INCLUDES T77858
21	AT432994	1	Hydraulic Hose	Auxiliary Return, INCLUDES T77858
22	AT432995	1	Hydraulic Hose	Bucket Cylinder Head End
23	AT432996	1	Hydraulic Hose	Bucket Cylinder Rod End
24	AT434109	1	Hydraulic Hose	Extension Cylinder Head End
25	AT434109	1	Hydraulic Hose	Extension Cylinder Rod End
26	AT439102	1	Hydraulic Hose	Bucket Cylinder Head End, INCLUDES T77932
27	AT439103	1	Hydraulic Hose	Extension Cylinder Head End, INCLUDES T77857
28	AT439104	1	Hydraulic Hose	Bucket Cylinder Rod End, INCLUDES T77932
29	AT439105	1	Hydraulic Hose	Extension Cylinder Rod End, INCLUDES T77857
30	AT448713	1	Hydraulic Hose	Auxiliary Pressure, INCLUDES T77858
31	AT439106	1	Oil Line	Auxiliary Return
32	AT439107	1	Oil Line	Auxiliary Pressure
33	T105773	1	Guide	-
34	T162004	16	Clamp	-
35	T162005	4	Strap	-
36	19M8456	8	Cap Screw	M8 X 100
37	14M7426	4	Lock Nut	M8
38	H77698	4	Tie Band	-
39	T165889	4	Screw	-
40	C16054	1	Clamp	-
41	R46919	4	Half Clamp	-
42	28H3381	2	Spacer	0.493" X 0.675" X 5/8"
43	19M8637	2	Cap Screw	M10 X 40
44	14M7274	8	Nut	M10
45	24M7294	4	Washer	26 X 39 X 4 mm
46	38H5093	4	Nut	1"
47	24M7396	4	Washer	21 X 34 X 3 mm
48	38H5092	4	Nut	13/16"
49	03M7192	6	Bolt	M10 X 30
50	T160376	6	Clamp	-
51	24M7239	6	Washer	10.700 X 21 X 2.500 mm
52	T338070	2	Reducer	-
53	T77858	2	O-Ring	-
54	24H1263	2	Washer	1-1/4" X 2" X 0.060"
55	38H5094	2	Nut	1-3/16"
56	T24959	2	Clamp	-
57	24M7238	2	Washer	8.700 X 17 X 2 mm
58	19M7932	2	Cap Screw	M8 X 16
59	64M1008	2	Drain Plug	-
60	51M7047	2	O-Ring	23.600 X 2.900 mm
61	38H5192	1	Fitting	-
62	T77932	1	O-Ring	-
63	51M7045	1	O-Ring	19.300 X 2.200 mm

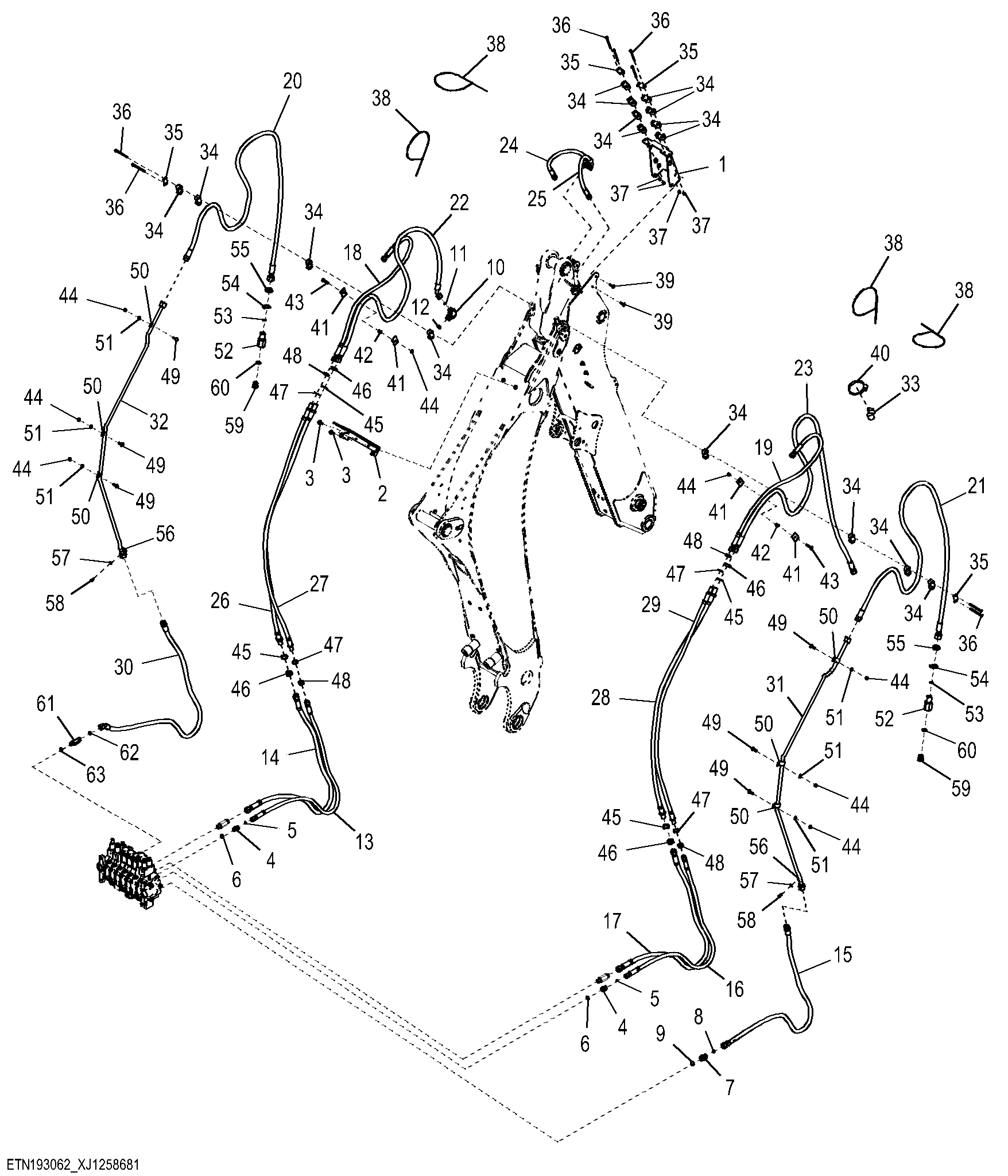

Extendable Dipperstick Plumbing with Auxiliary Hydraulics
