Открытый узел

Bucket and Extendable Dipperstick Hydraulics

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT327155	1	Hose Support	-
2	T400277	1	Support	-
3	19M7786	2	Screw	-
4	38H5076	1	Adapter Fitting	-
5	51M7126	1	O-Ring	-
6	51M7045	1	O-Ring	-
7	AT432128	1	Hydraulic Hose	Extension Cylinder Head End
8	AT432131	1	Hydraulic Hose	Bucket Cylinder Head End
9	AT439102	1	Hydraulic Hose	Bucket Cylinder Head End, INCLUDES T77932
9	T77932	2	O-Ring	-
10	T77932	2	O-Ring	-
11	AT439103	1	Hydraulic Hose	Extension Cylinder Head End, INCLUDES T77857
11	T77857	2	O-Ring	-
12	T77857	2	O-Ring	-
13	AT432882	1	Hydraulic Hose	Extension Cylinder Rod End
14	AT432883	1	Hydraulic Hose	Bucket Cylinder Rod End
15	AT439104	1	Hydraulic Hose	Bucket Cylinder Rod End, INCLUDES T77932
15	T77932	2	O-Ring	-
16	T77932	2	O-Ring	-
17	AT439105	1	Hydraulic Hose	Extension Cylinder Rod End, INCLUDES T77857
17	T77857	2	O-Ring	-
18	T77857	2	O-Ring	-
19	AT432993	1	Hydraulic Hose	Extension Cylinder Head End
20	AT432993	1	Hydraulic Hose	Extension Cylinder Rod End
21	AT432995	1	Hydraulic Hose	Bucket Cylinder Head End
22	AT432996	1	Hydraulic Hose	Bucket Cylinder Rod End
23	AT434109	1	Hydraulic Hose	Extension Cylinder Head End
24	AT434109	1	Hydraulic Hose	Extension Cylinder Rod End
25	T105773	1	Guide	-
26	T162004	8	Clamp	-
27	T162005	4	Strap	-
28	19M7185	8	Cap Screw	-
29	14M7426	4	Lock Nut	-
30	T165889	4	Screw	-
31	C16054	1	Clamp	-
32	R46919	4	Half Clamp	-
33	28H3381	2	Spacer	-
34	19M8637	2	Cap Screw	-
35	14M7274	2	Nut	-
36	24M7294	4	Washer	-
37	38H5093	4	Nut	-
38	24M7396	4	Washer	-
39	38H5092	4	Nut	-
40	38H5166	1	Elbow Fitting	-
41	51M7127	1	O-Ring	-
42	51M7047	1	O-Ring	-
43	T345677	1	Support	-

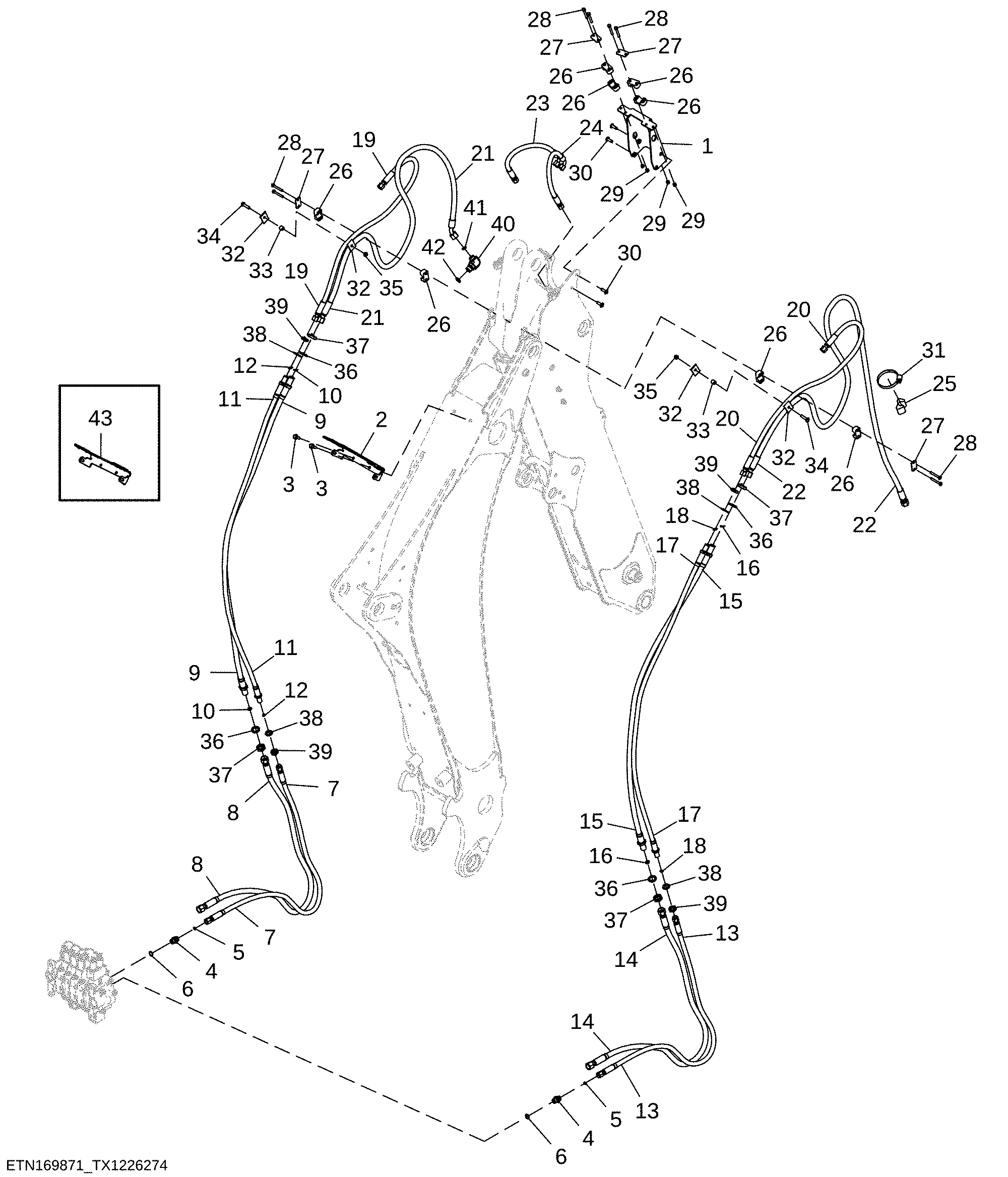

Bucket and Extendable Dipperstick Hydraulics

Нет текстового описания
