Открытый узел

Backhoe Valve, Five Function Manual with Auxiliary

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT431693	1	Mounting Parts	-
2	AT431880	1	Manual Hydraulic Valve	Components on Separate Page
2	64M1022	1	Drain Plug	-
2	51M7047	1	O-Ring	23.600 X 2.900 mm
2	64M1017	2	Drain Plug	-
2	51M7041	2	O-Ring	11.300 X 2.200 mm
3	24M7240	6	Washer	13 X 25 X 3 mm
4	19M7361	3	Cap Screw	M12 X 50
5	14M7275	3	Nut	M12
6	T187044	2	Washer	-
7	19M7816	4	Screw	M12 X 65
8	24M7240	4	Washer	13 X 25 X 3 mm
9	14M7275	4	Nut	M12
10	T166223	2	Guide	-
11	24M7239	3	Washer	10.700 X 21 X 2.500 mm
12	19M7572	2	Cap Screw	M10 X 45
13	14M7274	1	Nut	M10
14	T170269	6	Nut	-
15	T352185	3	Rod	-
16	AT444016	1	Hyd Actuated Control Valve	Inlet Section Components on Separate Page
17	AT444075	1	Hyd Actuated Control Valve	Auxiliary Section Components on Separate Page
18	AT444076	1	Hyd Actuated Control Valve	Swing Section Components on Separate Page
19	AT444077	1	Hyd Actuated Control Valve	Boom Section Components on Separate Page
20	AT444078	1	Hyd Actuated Control Valve	Bucket Section Components on Separate Page
21	AT444079	1	Hyd Actuated Control Valve	Crowd Section Components on Separate Page
22	AT444017	1	Hyd Actuated Control Valve	Outlet Section Components on Separate Page

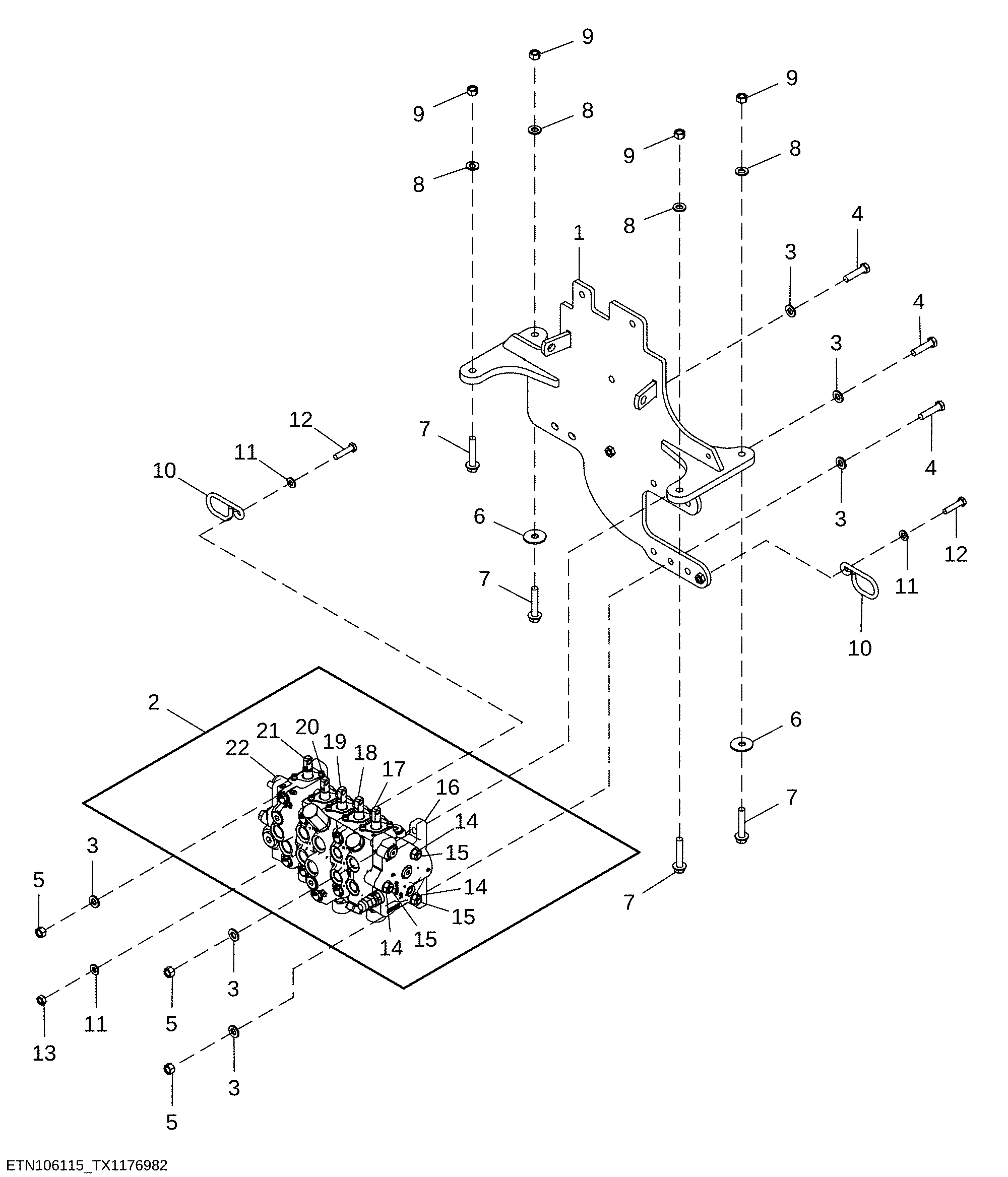

Backhoe Valve, Five Function Manual with Auxiliary

Нет текстового описания
