Backhoe, Six Function Pilot Control Valve with Extension and Selective Flow

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT500037	1	Hyd Actuated Control Valve	Convenience Assembly Six Function
2	AT444016	1	Hyd Actuated Control Valve	Inlet Section Components on Separate Page
3	AT519209	1	Hyd Actuated Control Valve	Selective Flow Section Components on Separate Page
4	AT444064	1	Hyd Actuated Control Valve	Swing Section Components on Separate Page
5	AT444072	1	Hyd Actuated Control Valve	Boom Section Components on Separate Page
6	AT444063	1	Hyd Actuated Control Valve	Bucket Section Components on Separate Page
7	AT444073	1	Hyd Actuated Control Valve	Crowd Section Components on Separate Page
8	AT519213	1	Hyd Actuated Control Valve	Extendable Section Components on Separate Page
9	AT444017	1	Hyd Actuated Control Valve	Outlet Section Components on Separate Page

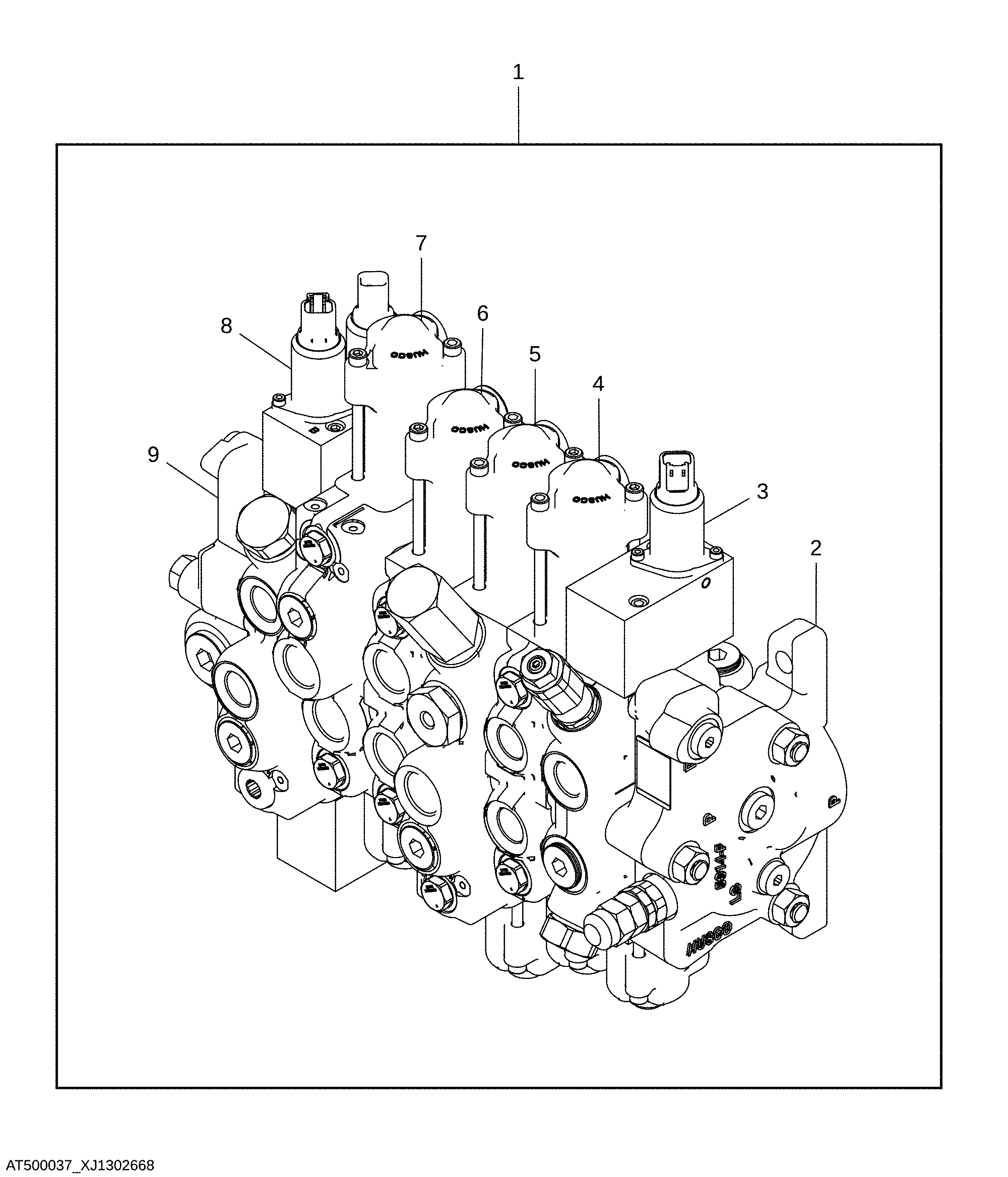

Backhoe, Six Function Pilot Control Valve with Extension and Selective Flow

Нет текстового описания
