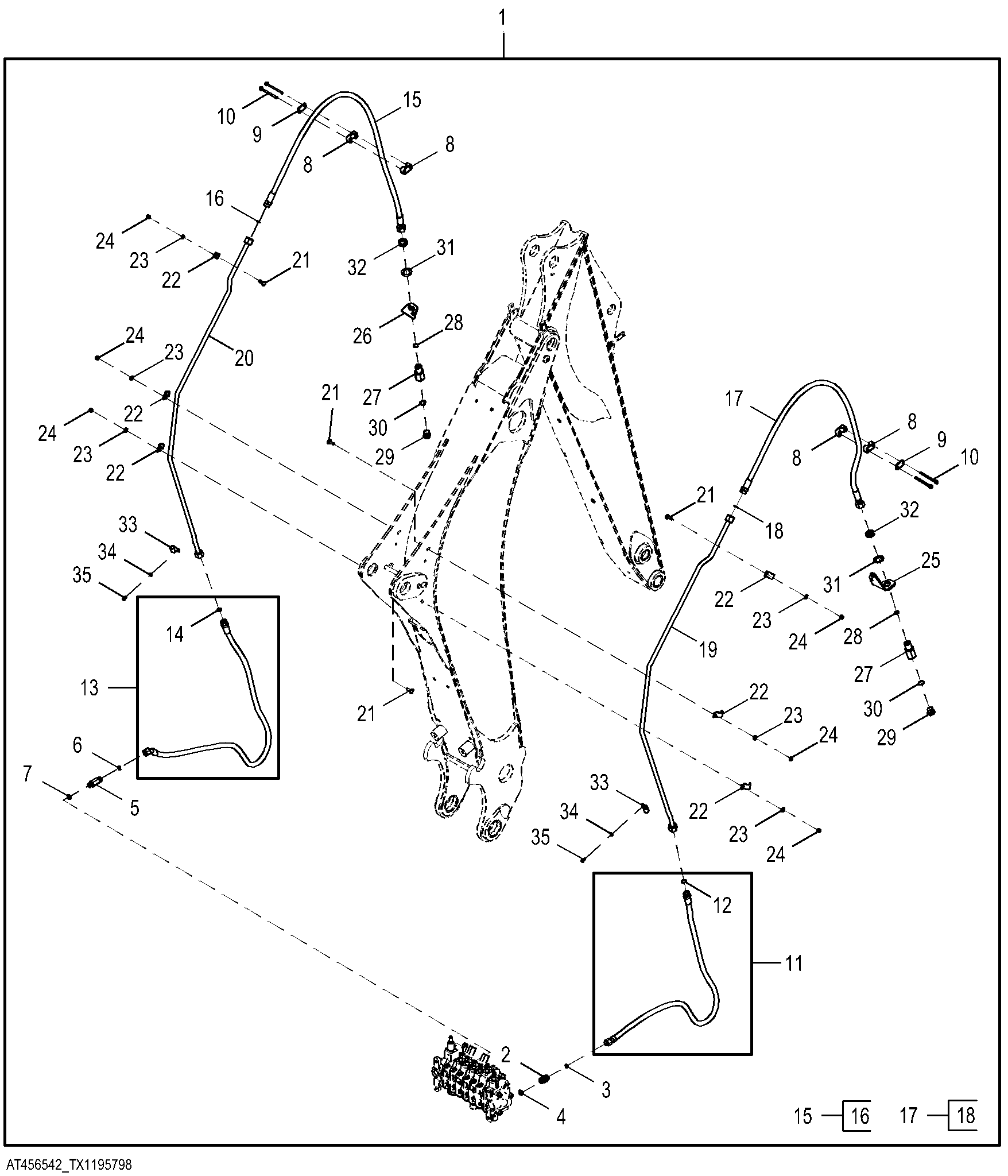

Auxiliary Plumbing For Selective Flow - Standard Dipperstick

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT456542	1	Hose Kit	Whole Goods
2	38H5152	1	Adapter Fitting	-
3	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
4	51M7047	1	O-Ring	23.600 X 2.900 mm
5	38H5192	1	Fitting	-
6	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
7	51M7045	1	O-Ring	19.300 X 2.200 mm
8	T162004	4	Clamp	-
9	T162005	2	Strap	-
10	19M7873	4	Screw	M8 X 110
11	AT432881	1	Hydraulic Hose	Auxiliary Return Backhoe Valve To Clamp
12	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
13	AT448713	1	Hydraulic Hose	Auxiliary Return Backhoe Valve To Clamp
14	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
15	AT456526	1	Hydraulic Hose	Fabricate
16	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
17	AT456526	1	Hydraulic Hose	Fabricate
18	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
19	AT439106	1	Oil Line	Hydraulic Auxiliary Oil Line
20	AT439107	1	Oil Line	Hydraulic Auxiliary Oil Line
21	03M7192	6	Bolt	M10 X 30
22	T160376	6	Clamp	-
23	24M7239	6	Washer	10.700 X 21 X 2.500 mm
24	14M7274	6	Nut	M10
25	T205637	1	Bracket	-
26	T205636	1	Bracket	-
27	T338070	2	Reducer	-
28	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
29	64M1008	2	Drain Plug	-
30	51M7047	2	O-Ring	23.600 X 2.900 mm
31	24H1263	2	Washer	1-1/4" X 2" X 0.060"
32	38H5094	2	Nut	1-3/16"
33	T24959	2	Clamp	-
34	24M7238	2	Washer	8.700 X 17 X 2 mm
35	19M7932	2	Cap Screw	M8 X 16

Auxiliary Plumbing For Selective Flow - Standard Dipperstick
