Auxiliary and Single Lever Loader Control Plumbing

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T300004	1	Bracket	-
2	AT225574	1	Hydraulic Accumulator	Charged
2	T290050	1	Label	Accumulator Russian
2	T215217	1	Label	Accumulator Spanish
2	T215216	1	Label	Accumulator French
2	T180944	1	Label	Accumulator English
2	T26209	1	Ring	-
2	AT196760	1	Valve Kit	Gas Valve
2	AT376347	1	Accumulator Kit	Uncharged Accumulator
3	TY22468	2	Clamp	-
4	T148409	2	Nut	-
5	19M7785	2	Screw	M10 X 25
6	38H3016	1	Tee Fitting	-
7	T77613	2	O-Ring	-
8	R26448	1	O-Ring	-
9	38H5208	1	Adapter Fitting	-
10	T77613	1	O-Ring	-
11	51M7041	1	O-Ring	11.300 X 2.200 mm
12	T340340	1	Check Valve	-
13	T77613	1	O-Ring	-
14	51M7042	1	O-Ring	13.300 X 2.200 mm
15	38H5105	1	Tee Fitting	-
16	T77613	2	O-Ring	-
17	28H3389	1	Spacer	0.423" X 0.675" X 1"
18	38H5154	1	Elbow Fitting	-
19	T77613	1	O-Ring	-
20	51M7042	1	O-Ring	13.300 X 2.200 mm
21	38H5037	1	Adapter Fitting	-
22	T77613	1	O-Ring	-
23	51M7042	1	O-Ring	13.300 X 2.200 mm
24	T74416	1	Clamp	-
25	AT484596	1	Hydraulic Hose	Hydraulic SLLC Accumulator to Solenoid Valve Fabricate
26	AT484597	1	Hydraulic Hose	Auxiliary SLLC Drain Fabricate
27	19M8292	1	Screw	M10 X 50
28	AT436962	1	Hydraulic Hose	Auxiliary Pressure Manual Backhoe Valve Fabricate
29	AT433739	1	Hydraulic Hose	SLLC Backhoe Valve to Accumulator
30	RE345761	1	Swivel	-
31	E73003	1	Tie Band	-
32	E73003	1	Tie Band	-

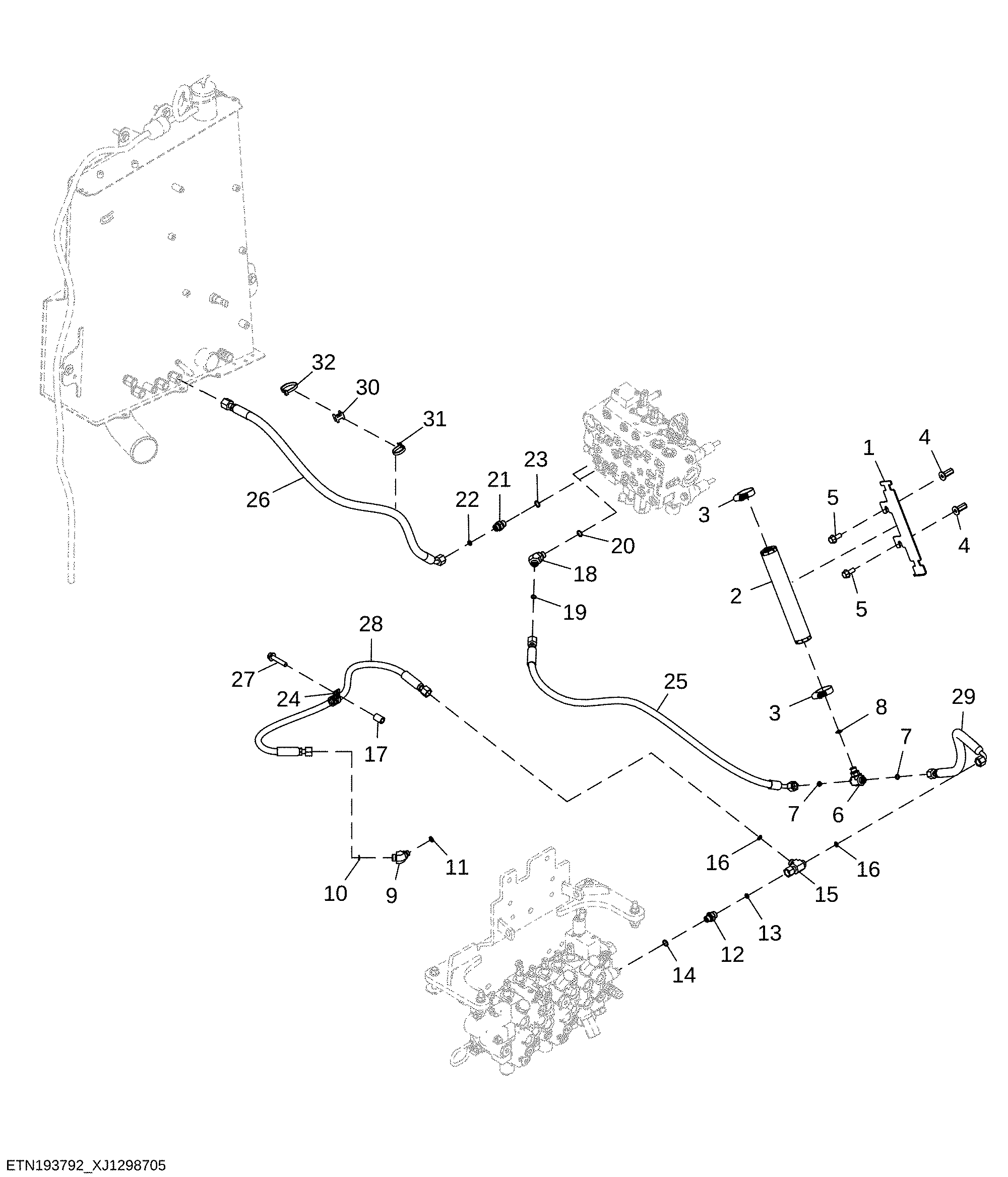

Auxiliary and Single Lever Loader Control Plumbing
