Большое обновление пильных узлов

Смотреть

Тип техники

Бренд

Машина

Большое обновление пильных узлов

Смотреть

Открытый узел

Loader Coupler Hydraulics (247551 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	28H1697	2	Spacer	0.493" X 0.675" X 3/4"
2	T190979	1	Half Clamp	-
3	24M7239	7	Washer	10.700 X 21 X 2.500 mm
4	19M7742	2	Cap Screw	M10 X 65
5	AT312547	1	Solenoid Hydraulic Valve	Components On Separate Page
6	19M7638	2	Cap Screw	M10 X 130
7	38H1160	3	Adapter Fitting	-
8	T77613	3	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
9	R26448	3	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
10	62H1053	2	Adapter Fitting	-
11	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
12	62H1001	1	Adapter Fitting	-
13	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
14	38H1212	1	Adapter Fitting	-
15	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
16	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
17	AT309743	1	Hydraulic Hose	Fabricate
18	AT309742	1	Hydraulic Hose	Fabricate
19	AT393477	1	Hydraulic Hose	Fabricate
20	AT393478	1	Hydraulic Hose	Fabricate
21	T148409	2	Nut	-
22	R46919	3	Half Clamp	-
23	28H3381	1	Spacer	0.493" X 0.675" X 5/8"
24	19M7550	1	Cap Screw	M10 X 35
25	14M7274	1	Nut	M10
26	T185089	1	Sleeve	-
27	AT396047	1	Hydraulic Hose	Fabricate
28	-	1	Part 28	MF T78606, CTL 254.00 mm (10.00 in)
29	-	1	Part 29	MF T78606, CTL 254.00 mm (10.00 in)
30	R44302	6	Tie Band	-
31	AT321189	1	Oil Line	-
31	T225291	2	Nut	-
32	AT321190	1	Oil Line	-
32	38H1354	2	Tube Nut	-
33	RE60701	1	Diagnostic Coupling	-
34	R77175	1	Cover	-
35	T217085	3	Clamp	-
36	19M7784	3	Screw	M10 X 20
37	38H1004	1	Elbow Fitting	ALSO ORDER T77613 AND R26448
38	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
39	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
40	AT321218	1	Hydraulic Hose	Pressure To Pump Fabricate
40	38H1354	2	Tube Nut	-
41	38H1168	1	Adapter Fitting	ALSO ORDER T77614 AND R26448
42	T77814	1	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
43	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")

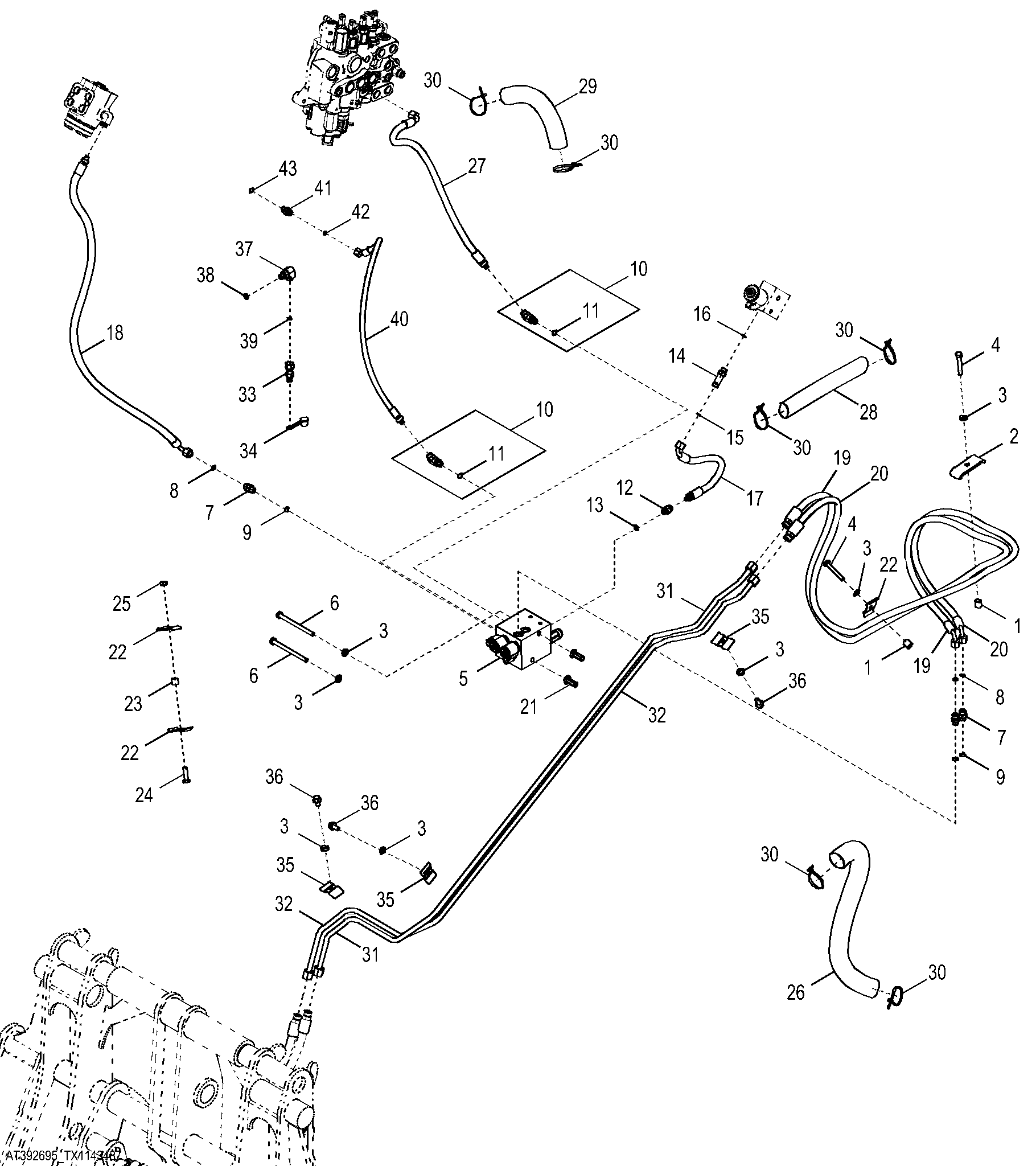

Loader Coupler Hydraulics (247551 - )

Нет текстового описания
