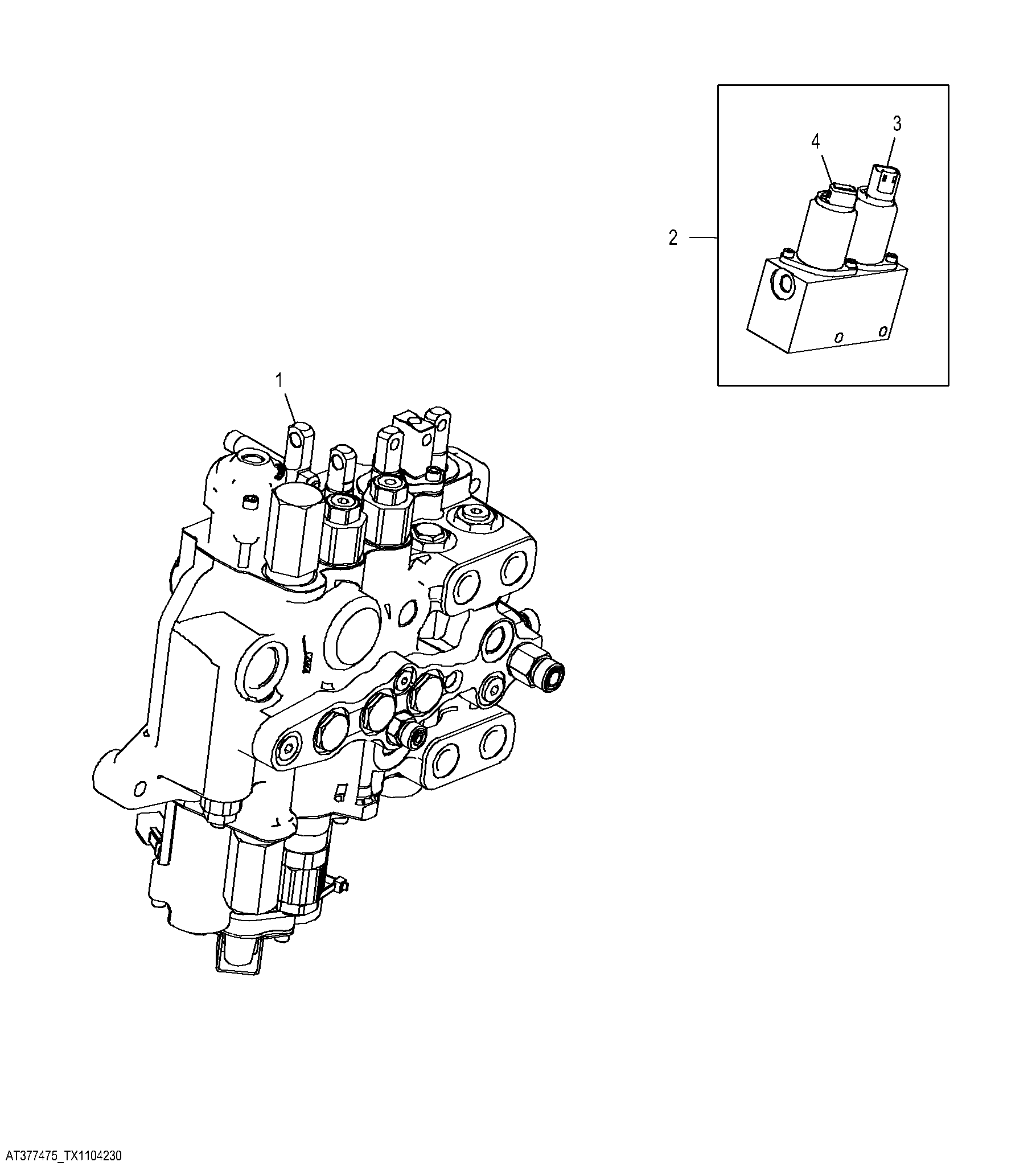

Loader and Stabilizer Valve, Five Function with Electrohydraulic Auxiliary (Use For AT377479)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT377479	1	Control Valve	Use Until Exhausted Five Function Components Listed On Separate Page, NLA, ORDER AT426703 ALSO ORDER RE154027, R111292, R26448, AT319092, T77857, AND AT328992
1	AT426703	1	Control Valve	Requires Five Function Components Listed On Separate Page, RE154027, R111292, R26448, AT319092, T77857, AND AT328992
2	AT381636	1	Flow Control Hyd. Valve	-
3	AT335739	1	Elec.Proportional Valve	-
3	AT368250	1	Seal Kit	Not Illustrated
4	AT386503	1	Elec.Proportional Valve	-
4	AT368250	1	Seal Kit	Not Illustrated
5	RE154027	1	Adapter Fitting	Not Illustrated Components On Separate Page
6	R111292	1	Disk	Not Illustrated Components On Separate Page
7	R26448	1	O-Ring	Not Illustrated Components On Separate Page
8	AT319092	1	Check Valve	Not Illustrated Components On Separate Page
9	T77857	1	O-Ring	Not Illustrated Components On Separate Page
10	AT328992	1	Flow Control Hyd. Valve	Not Illustrated Components On Separate Page

Loader and Stabilizer Valve, Five Function with Electrohydraulic Auxiliary (Use For AT377479)

Нет текстового описания
