Load Sense Relief Valve with ElectroHydraulic Auxiliary

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT196924	1	Seal Kit	Not Illustrated
1	AT386337	2	Check Valve	SUB FOR AT349056
2	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
3	AT386336	2	Check Valve	-
3	AT196924	1	Seal Kit	Not Illustrated
4	R111292	1	Disk	-
5	RE154027	1	Adapter Fitting	ORDER AT300839
5	AT300839	1	Fitting	-
5	51M7041	1	O-Ring	11.300 X 2.200 mm, Not Illustrated, USE WITH RE154027
5	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070"), Not Illustrated, USE WITH RE154027
5	T70177	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64"), Not Illustrated, USE WITH AT300839
5	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070"), Not Illustrated, USE WITH AT300839
6	T161835	6	Compression Spring	-
7	T76502	3	Fitting	-
8	R26906	3	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
9	R111493	1	Fitting Plug	-
10	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
11	AT365949	1	Valve Kit	-
12	R111493	1	Fitting Plug	-
13	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
14	T160617	1	Spring	-
15	AT319092	1	Check Valve	-
16	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
17	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
18	AT328992	1	Flow Control Hyd. Valve	224.08 bar (3250 psi), ORDER AT448281
18	AT448281	1	Flow Control Hyd. Valve	224.08 bar (3250 psi)
19	-	1	Part 27	NLA; ORDER AT199671
20	-	1	Part 28	NLA; ORDER AT199671
21	-	1	Part 29	NLA; ORDER AT199671
22	-	1	Part 30	NLA; ORDER AT199671
23	-	1	Part 31	NLA; ORDER AT199671
24	-	1	Part 32	NLA; ORDER AT199671
25	-	1	Part 33	NLA; ORDER AT199671
26	AT199671	1	Seal Kit	-

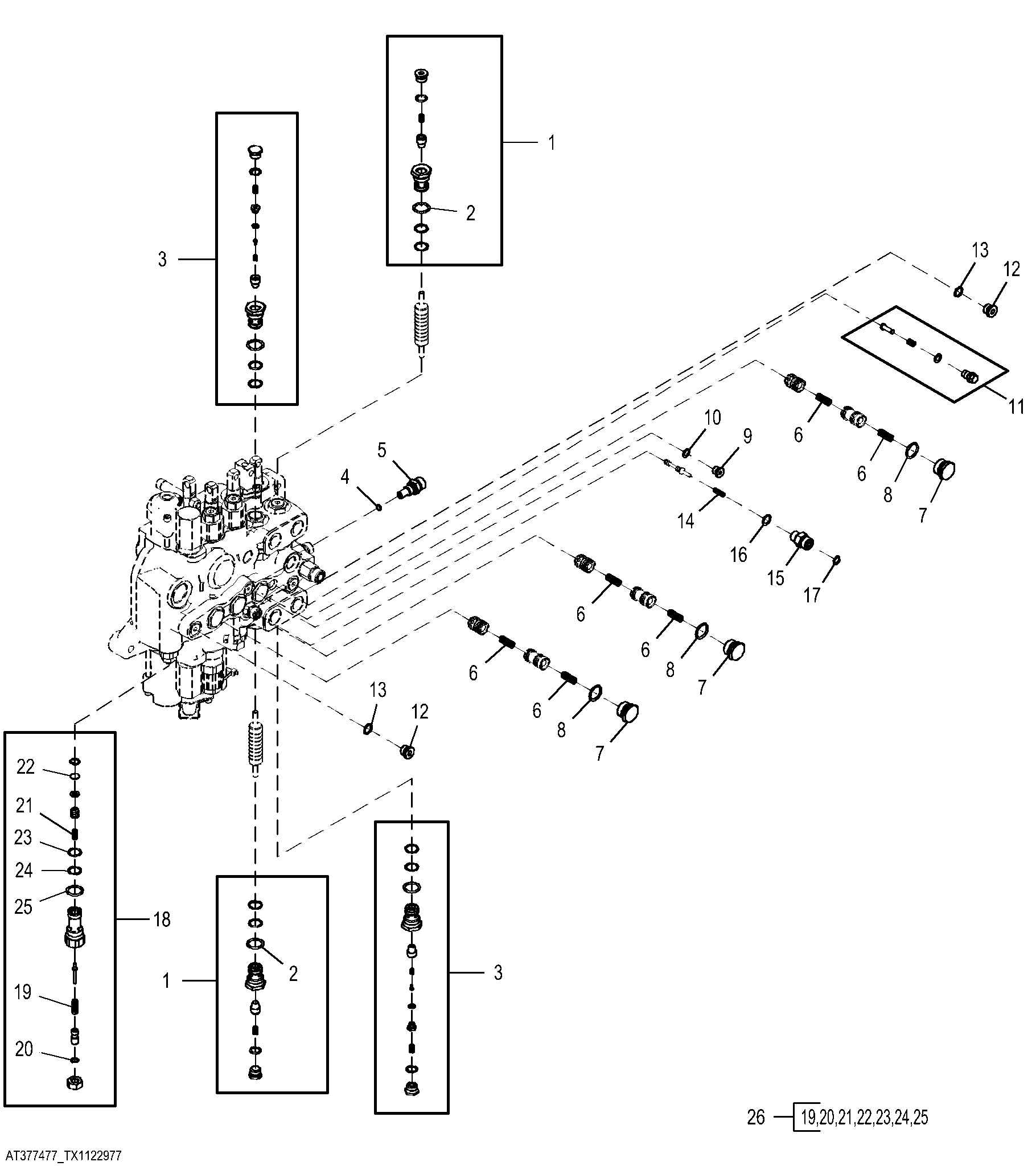

Load Sense Relief Valve with ElectroHydraulic Auxiliary
