Hydraulic Loader Coupler Kit ( - 247550)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT417185	1	Software	Software Available Through John Deere Custom Performance Website
1	AT403260	1	Control	NLA
2	T190979	1	Half Clamp	-
3	24M7239	7	Washer	10.700 X 21 X 2.500 mm
4	R46919	3	Half Clamp	-
5	AT312547	1	Solenoid Hydraulic Valve	Components On Separate Page
6	19M7638	2	Cap Screw	M10 X 130
7	38H1160	3	Adapter Fitting	-
7	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
7	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
8	38H1212	1	Adapter Fitting	-
8	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
8	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
9	62H1053	2	Adapter Fitting	-
10	62H1001	1	Adapter Fitting	-
11	T148409	2	Nut	-
12	28H3381	1	Spacer	0.493" X 0.675" X 5/8"
13	19M7550	1	Cap Screw	M10 X 35
14	14M7274	1	Nut	M10
15	T185089	1	Sleeve	-
16	AT309742	1	Hydraulic Hose	Load Sense Steering Fabricate
17	AT309743	1	Hydraulic Hose	Hydraulic Tank Fabricate
18	AT339270	1	Hydraulic Hose	Fabricate, ALSO ORDER 62H1042 AND T77613
19	AT393477	1	Hydraulic Hose	Work Hose Fabricate
20	AT393478	1	Hydraulic Hose	Work Hose Fabricate
21	AT396047	1	Hydraulic Hose	Load Sense To Loader Valve Fabricate
22	-	1	Part 27	MAKE FROM T78606 CTL, 254.00 mm (10.00 in)
23	T153422	1	Hose Guard	-
24	T153422	1	Hose Guard	-
25	19M7742	2	Cap Screw	M10 X 65
26	28H1697	2	Spacer	0.493" X 0.675" X 3/4"
27	R44302	8	Tie Band	-
28	AT321189	1	Oil Line	Outboard
29	AT321190	1	Oil Line	Inboard
30	T217085	3	Clamp	-
31	19M8324	3	Cap Screw	M10 X 16
32	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
32	38H1016	1	Tee Fitting	-
32	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
33	RE60701	1	Diagnostic Coupling	Diagnostic Receptacle
34	R77175	1	Cover	-
35	AT375572	1	Wiring Harness	Solenoid Valve
36	57M7254	1	Elec. Connector Housing	-
37	57M7289	1	Elec.Connect Locking Device	-
38	57M9734	1	Elec. Connector Housing	-
39	57M8021	1	Electrical Connector Assy	-
40	57M8022	1	Elec.Connect Locking Device	-
41	AH217348	1	Hydraulic Cylinder	Components On Separate Page, NLA, ORDER AHC14445 ALSO ORDER 38H5154, 51M7042, AND T77613
42	AT307106	2	Pin Fastener	-
43	T205017	2	Pin	-
44	24M7346	4	Washer	11 X 20 X 2 mm
45	19M8499	2	Cap Screw	M10 X 60
46	14M7274	2	Nut	M10
47	T162396	2	Lubrication Fitting	-
48	24M7240	4	Washer	13 X 25 X 3 mm
49	14M7275	2	Nut	M12
50	19M7753	2	Cap Screw	M12 X 70
51	T213143	2	Label	Worksite Pro
52	T213288	1	Bracket	Cylinder Guard
53	24M7238	8	Washer	8.700 X 17 X 2 mm
54	19M8008	4	Cap Screw	M8 X 35
55	14M7273	4	Nut	M8
56	38H1045	1	Elbow Fitting	-
56	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
56	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
57	38H1160	1	Adapter Fitting	-
57	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
57	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
58	AT309746	1	Hydraulic Hose	Loader Coupler Cylinder Fabricate
59	AT309747	1	Hydraulic Hose	Loader Coupler Cylinder Fabricate
60	T252811	1	Guard	-

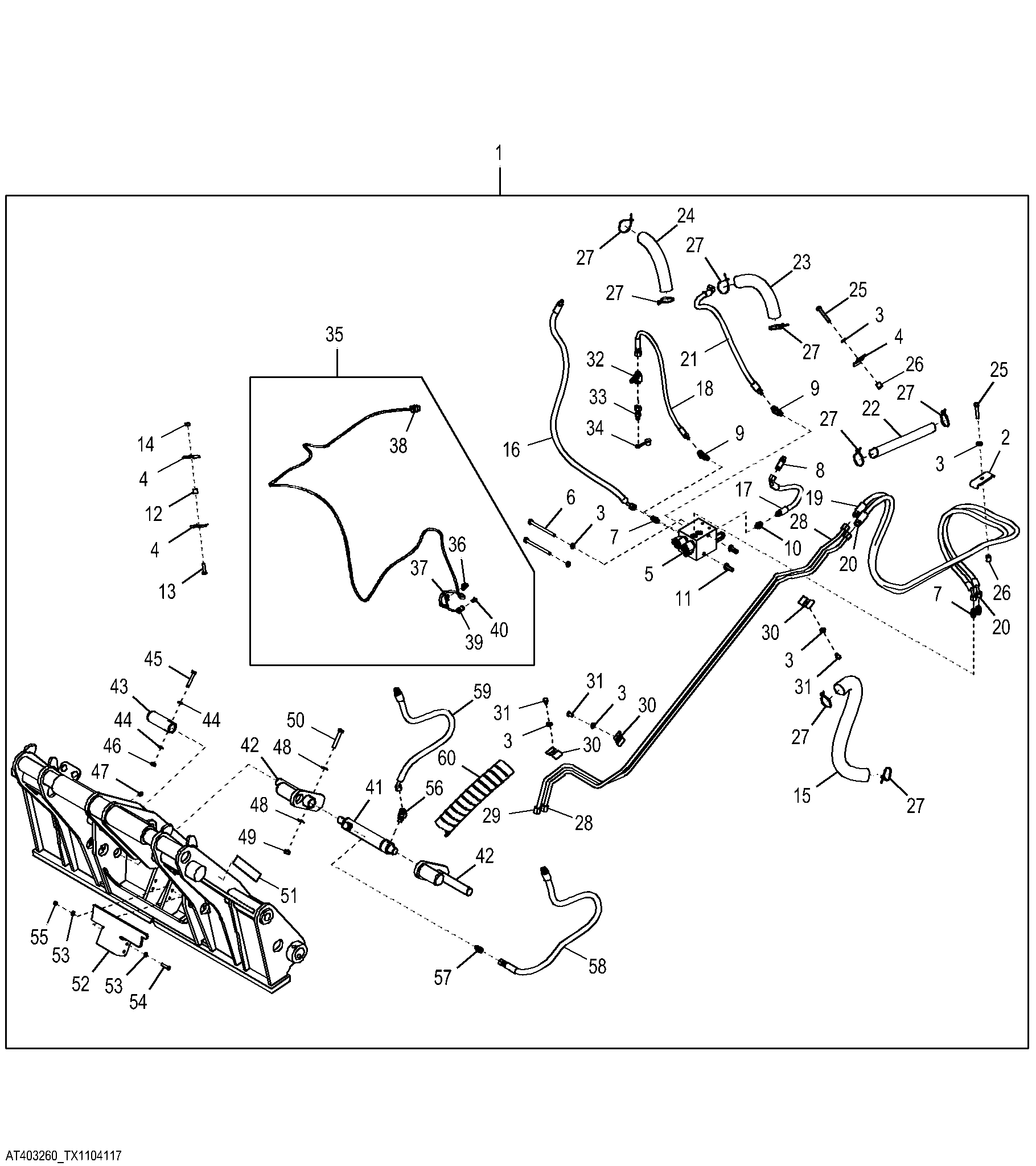

Hydraulic Loader Coupler Kit ( - 247550)
