Большое обновление пильных узлов

Смотреть

Открытый узел

Cooling Package (Engine 4045HT054, 4045HT063, 4045HT072, 4045HT073, 4045HT086, 4045HT087-)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT369969	1	Radiator	High Temperature Circuit
2	L100802	1	Fitting	-
3	AT323961	1	Adapter Fitting	-
4	51M7040	1	O-Ring	9.300 X 2.200 mm
5	51M7041	1	O-Ring	11.300 X 2.200 mm
6	AT386411	1	Channel	-
7	T290121	1	Deflector	-
8	T300045	1	Latch	-
9	AT44188	2	Rivet	-
10	AT386412	1	Channel	-
11	T290121	1	Deflector	-
12	T300045	1	Latch	-
13	AT44188	2	Rivet	-
14	T279747	4	Pin Fastener	-
15	R122267	6	Clamp	-
16	AT428806	1	Radiator	Low Temperature Circuit, SUB FOR AT373586
17	AT323961	2	Adapter Fitting	-
18	51M7040	2	O-Ring	9.300 X 2.200 mm
19	L100802	1	Fitting	-
20	51M7041	1	O-Ring	11.300 X 2.200 mm
21	AT386413	1	Channel	-
22	T279751	1	Latch	-
23	AT44188	6	Rivet	-
24	T300045	1	Latch	-
25	T300046	1	Catch	-
26	T290122	1	Deflector	-
27	AT386414	1	Channel	-
28	T279751	1	Latch	-
29	AT44188	6	Rivet	-
30	T300045	1	Latch	-
31	T300046	1	Catch	-
32	T290122	1	Deflector	-
33	T292811	1	Deflector	-
34	19M7865	2	Screw	M8 X 16
35	R315012	6	Screw	-
36	AT369971	1	Intercooler	Charge Air Cooler
37	T122389	2	Bushing	-
38	19M7804	2	Screw	M10 X 40
39	AT397149	1	Handle	-
40	AT56660	4	Rivet	-
41	AT386012	1	Bracket	-
42	T300046	2	Catch	-
43	AT44188	4	Rivet	-
44	AT406957	1	Fuel Cooler	NLA, ORDER AT420970 ALSO ORDER T287877, AR77962, AND AT423330 ALSO TY22503 CTL, 205.00 cm (6.70 ft) AND TY22503 CTL, 61.00 cm (2.00 ft)
44	AT420970	1	Fuel Cooler	SUB FOR AT406957
44	AT440359	1	Fuel Cooler	REQUIRES (4) R131664 SUB FOR AT420970 AND AT406957
45	21M7572	4	Socket Head Screw	M8 X 20, USE WITH AT420970, OR AT406957
45	R131664	4	Cap Screw	USE WITH AT440359
46	AT397150	1	Latch	-
47	24H1682	2	Washer	13/32" X 7/8" X 0.120"
48	T287877	1	Reducer	Not Illustrated Components On Separate Page
49	AR77962	1	Hose Clamp	Not Illustrated Components On Separate Page
50	AT423330	1	Hose	Not Illustrated Components On Separate Page
51	TY22503	1	Hose	Not Illustrated Components On Separate Page
52	TY22503	1	Hose	Not Illustrated Components On Separate Page

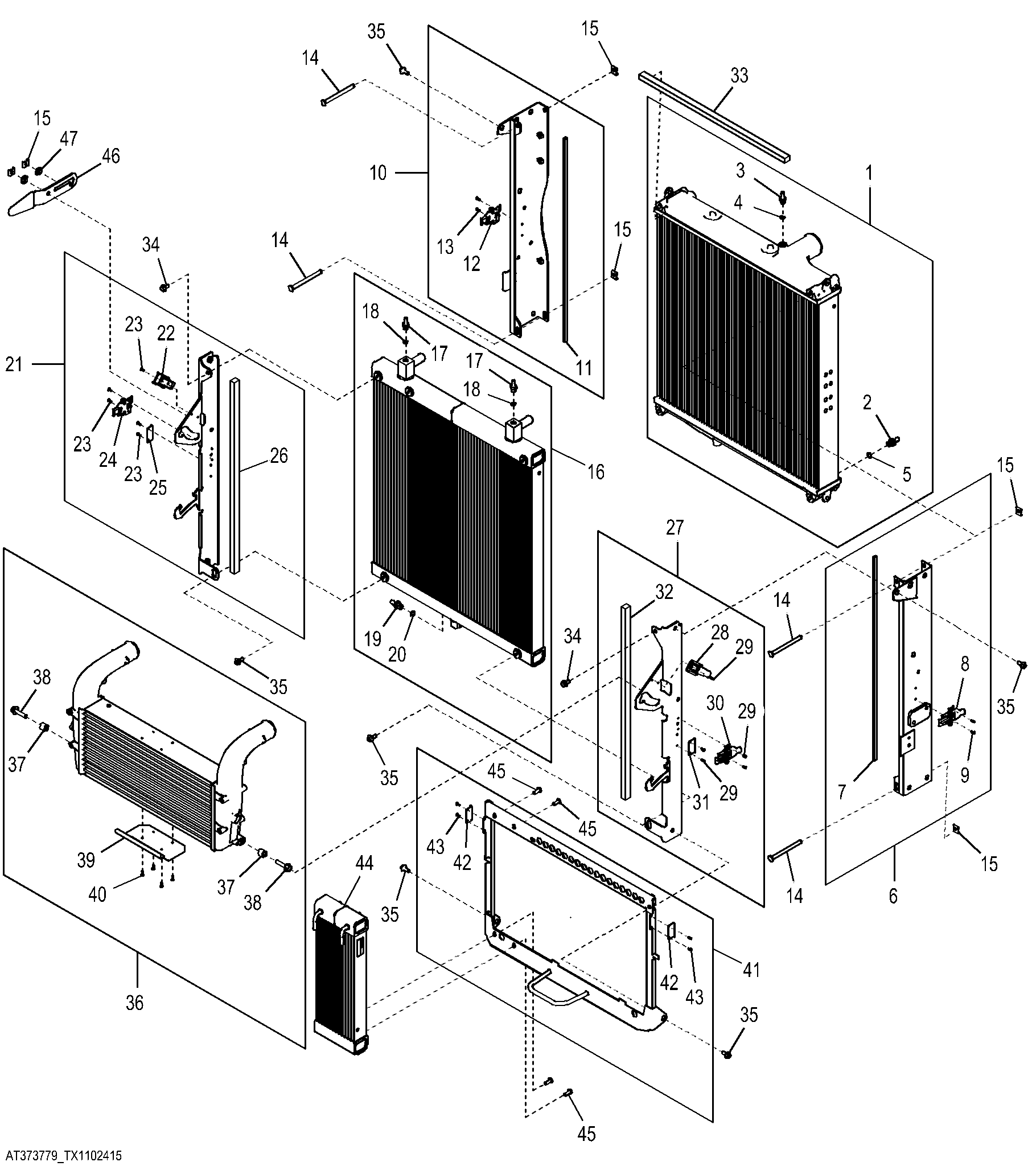

Cooling Package (Engine 4045HT054, 4045HT063, 4045HT072, 4045HT073, 4045HT086, 4045HT087-)
