Transmission, Dipstick and Tube (Engine 4045TT095, 4045TT094-)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT335997	1	Transmission	With MFWD, NLA, ORDER PG200330
1	PG200330	1	Transmission Reman	With MFWD, INCLUDES PG200132 AND RE63751; REMAN FOR AT310585 AND AT335997
1	AT314916	1	Transmission	Without MFWD, NLA, ORDER PG200329
1	AT335998	1	Transmission	Without MFWD, NLA, ORDER PG200329
1	PG200329	1	Transmission Reman	Without MFWD, INCLUDES PG200132 AND RE63751; REMAN FOR AT335998 AND AT314916
1	AT310583	1	Torque Converter	2.53 SR, With Engine 4045TT094 or 4045TT095, ORDER PG200132
1	RE63751	1	Pipe Plug	Use without Speed Sensor, INCLUDES T113570 AND R104558
1	T113570	1	Drain Plug	-
1	R104558	1	O-Ring	15 X 2 mm (0.591" X 0.079")
1	AT310585	1	Transmission	With MFWD, NLA, ORDER PG200330
2	AT311103	1	Dipstick Tube	-
3	R29463	1	O-Ring	31.344 X 3.531 mm (1-15/64" X 0.139")
4	24M7238	2	Washer	8.700 X 17 X 2 mm
5	19M7932	2	Cap Screw	M8 X 16
6	AT351228	1	Dipstick	SUB FOR AT303695
7	T216078	1	Plate	-
8	T162675	1	Clamp	-
9	19M8017	1	Cap Screw	M12 X 20
10	24M7239	2	Washer	10.700 X 21 X 2.500 mm
11	19M7938	1	Cap Screw	M10 X 20
12	14M7274	1	Nut	M10

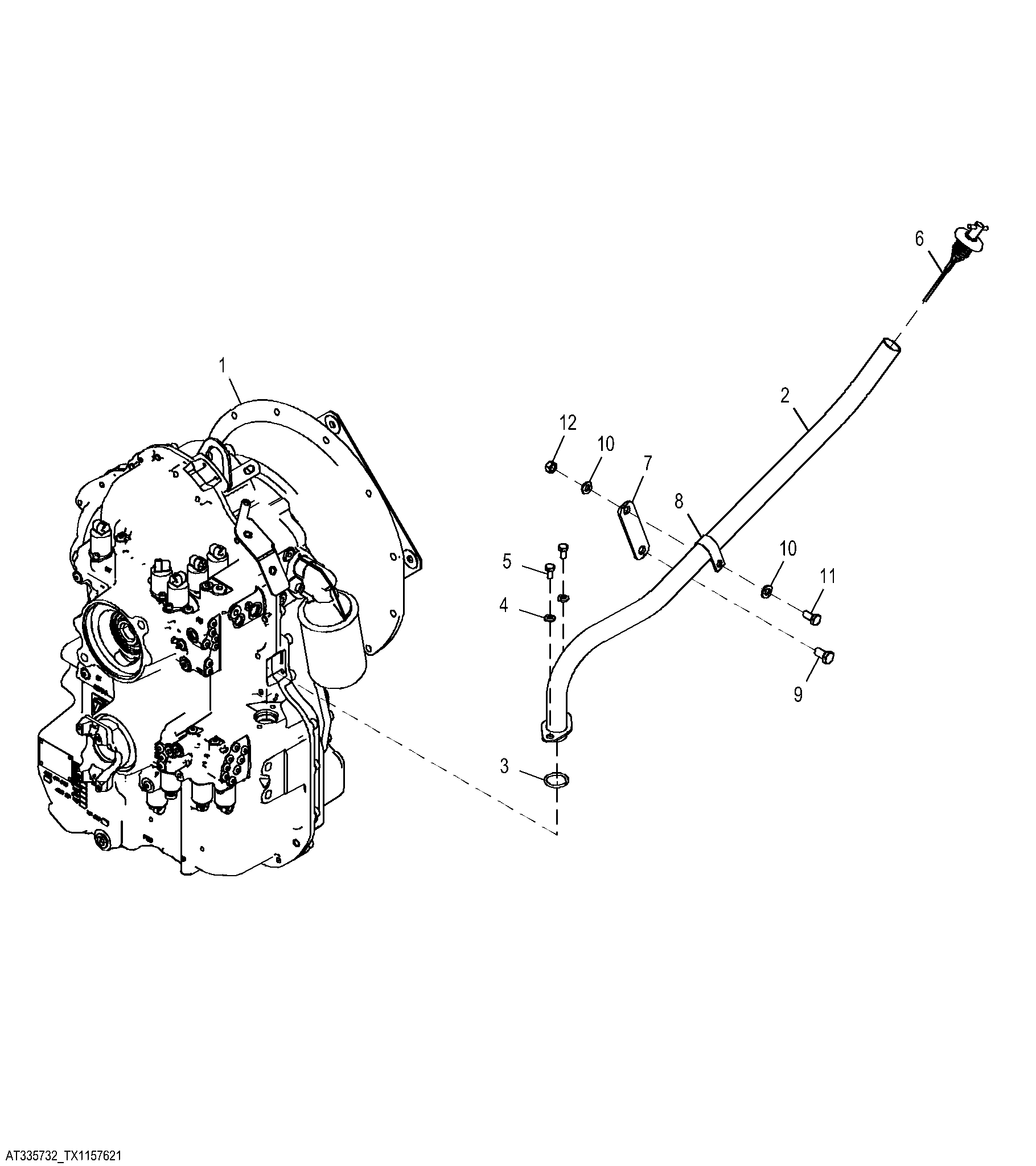

Transmission, Dipstick and Tube (Engine 4045TT095, 4045TT094-)

Нет текстового описания
