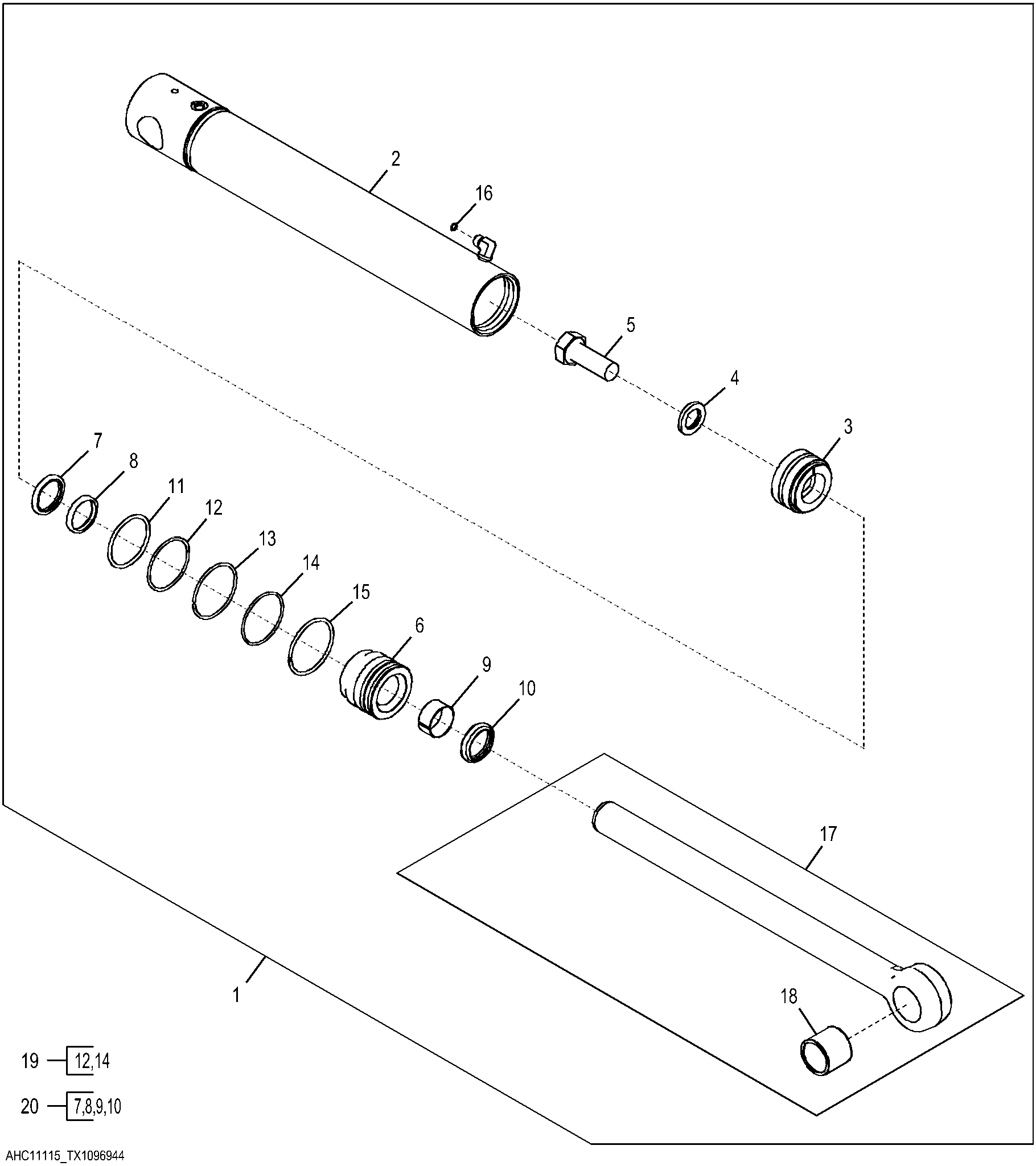

Stabilizer Cylinder (Standard Stabilizer) (208446 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AHC11116	1	Hydraulic Cylinder	109.20 cm (42.992 in), Arm Length Measured From Center Hole To Center Hole Right Hand Components Listed On Separate Page, NLA, ORDER AHC14416 ALSO ORDER 38H5035, 51M7042, AND T77613
1	AHC14415	1	Hydraulic Cylinder	Components Listed On Separate Page, SUB FOR AHC11115
1	AHC14416	1	Hydraulic Cylinder	Components Listed On Separate Page, SUB FOR AHC11116
1	38H5035	1	Elbow Fitting	Not Illustrated
1	51M7042	1	O-Ring	13.300 X 2.200 mm, Not Illustrated
1	T77613	1	O-Ring	Not Illustrated
1	AHC11115	1	Hydraulic Cylinder	109.20 cm (42.992 in), Arm Length Measured From Center Hole To Center Hole Left Hand Components Listed On Separate Page, NLA, ORDER AHC14415 ALSO ORDER 38H5035, 51M7042, AND T77613
2	AHC11285	1	Hydraulic Cylinder Barrel	Left Hand Components Listed On Separate Page, NLA, ORDER AHC14415 ALSO ORDER 38H5035, 51M7042, AND T77613
2	AHC11287	1	Hydraulic Cylinder Barrel	Right Hand Components Listed On Separate Page, NLA, ORDER AHC14416 ALSO ORDER 38H5035, 51M7042, AND T77613
3	AH205060	1	Piston	-
4	H145175	1	Washer	-
5	19M8353	1	Cap Screw	M30 X 80
6	HC10929	1	Hydr. Cylinder Rod Guide	-
7	AH146561	1	Seal	-
8	H152203	1	Seal	-
9	H208987	1	Wear Ring	-
10	AHC10164	1	Seal	-
11	F1430R	1	O-Ring	-
12	R79101	1	Back-Up Ring	-
13	H180103	1	Snap Ring	-
14	H181114	1	O-Ring	-
15	H206859	1	Snap Ring	-
16	T77613	1	O-Ring	-
17	AH147902	1	Hydraulic Cylinder Rod	-
18	H154404	1	Bushing	-
19	AH212097	1	Hydraulic Cylinder Kit	Bore Does Not Include The Two Outter Injected Nylon Piston Seals
20	AHC16954	1	Hydraulic Cylinder Kit	Rod, SUB FOR AHC11573

Stabilizer Cylinder (Standard Stabilizer) (208446 - )
