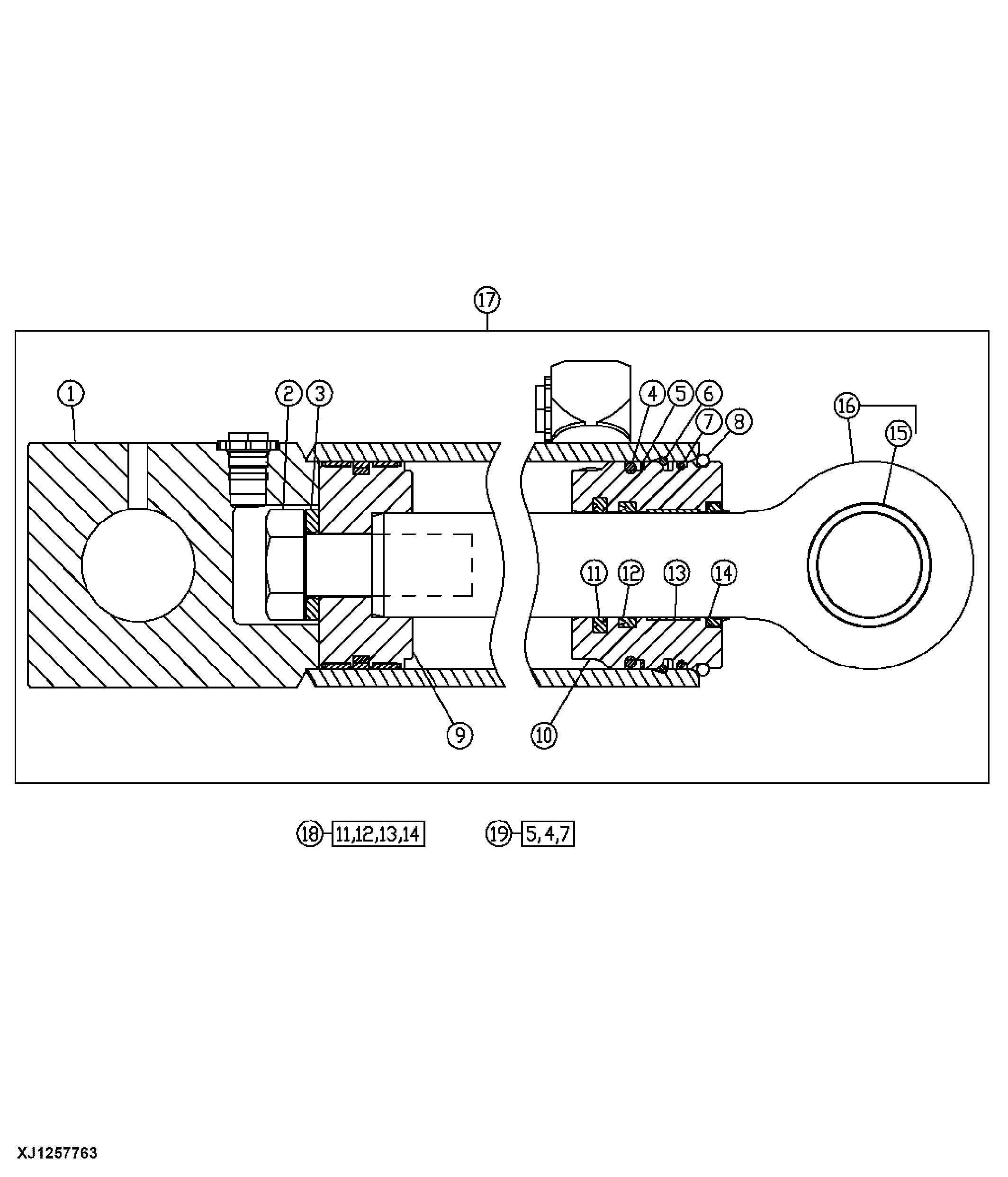

Stabilizer Cylinder and Repair Kit, Extended Stabilizer ( - 208445)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH219544	1	Hydraulic Cylinder Barrel	Right Hand, NLA, ORDER AHC14418 ALSO ORDER 38H5035, 51M7042, AND T77613
1	AH219543	1	Hydraulic Cylinder Barrel	Left Hand, NLA, ORDER AHC14417 ALSO ORDER 38H5035, 51M7042, AND T77613
4	F950R	1	O-Ring	88.265 X 5.334 mm (3.475" X 0.210")
5	R81862	1	Back-Up Ring	91.490 X 98.850 X 1.780 mm (3.602" X 3.892" X 0.070")
6	H180094	1	Snap Ring	-
7	-	1	Part 6	-
8	H180080	1	Snap Ring	-
9	AH205062	1	Piston	-
10	H208995	1	Hydr. Cylinder Rod Guide	-
11	AH146561	1	Seal	-
12	H152203	1	Seal	-
13	H208987	1	Wear Ring	-
14	AH146557	1	Seal	-
15	H154404	1	Bushing	50.300 X 60.080 X 51 mm (1.980" X 2.365" X 2.008")
16	AH147902	1	Hydraulic Cylinder Rod	-
17	AH219541	1	Hydraulic Cylinder	Left Hand, NLA, ORDER AHC14417 ALSO ORDER 38H5035, 51M7042, AND T77613
17	AH219542	1	Hydraulic Cylinder	Right Hand, NLA, ORDER AHC14418 ALSO ORDER 38H5035, 51M7042, AND T77613
17	AHC14417	1	Hydraulic Cylinder	Left Hand Components On Separate Page, SUB FOR AH219541 AND AHC11117
17	AHC14418	1	Hydraulic Cylinder	Right Hand Components On Separate Page, SUB FOR AH219542 AND AHC11118
18	AH210484	1	Hydraulic Cylinder Kit	Rod
19	AH212102	1	Hydraulic Cylinder Kit	Bore

Stabilizer Cylinder and Repair Kit, Extended Stabilizer ( - 208445)
