Открытый узел

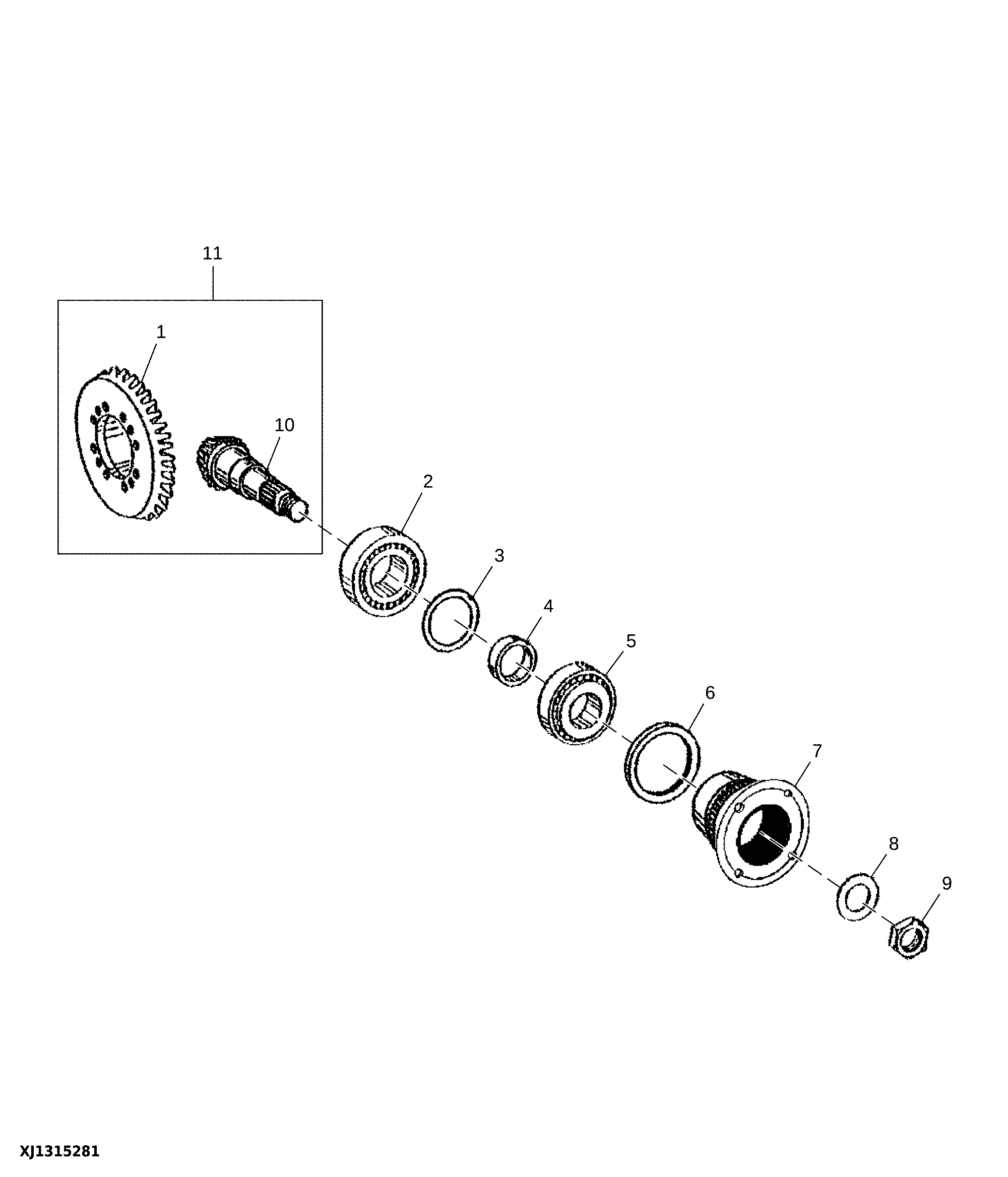

Rear Spiral Bevel Input Pinion and Ring Gear Set

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T258088	1	Ring Gear	Z=31, NLA; ORDER T293141
1	T293141	1	Bevel Gear	Z=31
1	T230866	1	Ring Gear	Z=31, NLA; ORDER T293141
2	AT400190	1	Tapered Roller Bearing	SUB FOR AT176491
3	R75834	1	Shim	TK = 0.5 mm
3	T228669	1	Shim	TK = 1.55 mm
3	R75404	1	Shim	TK = 0.3 mm
3	R75403	1	Shim	TK = 0.2 mm
3	R75405	1	Shim	TK = 0.1 mm
3	T228664	1	Shim	TK = 0.75 mm
3	T228665	1	Shim	TK = 0.65 mm
3	T228666	1	Shim	TK = 1.25 mm
3	T228667	1	Shim	TK = 1.35 mm
3	T228668	1	Shim	TK = 1.45 mm
3	T228671	1	Shim	TK = 1.65 mm
3	T228672	1	Shim	TK = 1.75 mm
3	T228673	1	Shim	TK = 1.85 mm
3	T159314	1	Shim	TK = 1.4 mm
3	T159310	1	Shim	TK = 1.2 mm
3	T159315	1	Shim	TK = 1.3 mm
3	T159309	1	Shim	TK = 1.5 mm
3	AT321706	1	Shim	TK = 0.6 mm
3	T159313	1	Shim	TK = 1.6 mm
3	T159308	1	Shim	TK = 1.8 mm
3	T159307	1	Shim	TK = 2.0 mm
3	AT321705	1	Shim	TK = 0.7 mm
3	AT321704	1	Shim	TK = 0.8 mm
3	AT321703	1	Shim	TK = 0.9 mm
3	AT321702	1	Shim	TK = 1.0 mm
3	AT321701	1	Shim	TK = 1.7 mm
3	T159311	1	Shim	TK = 1.9 mm
4	T293119	1	Shim	TK = 16.9 mm
4	T293120	1	Shim	TK = 16.92 mm
4	T293121	1	Shim	TK = 16.94 mm
4	T293122	1	Shim	TK = 16.96 mm
4	T293123	1	Shim	TK = 16.98 mm
4	T293124	1	Shim	TK = 17 mm
4	T293125	1	Shim	TK = 17.02 mm
4	T293126	1	Shim	TK = 17.04 mm
4	T293127	1	Shim	TK = 17.06 mm
4	T293128	1	Shim	TK = 17.08 mm
4	T293129	1	Shim	TK = 17.1 mm
4	T293130	1	Shim	TK = 17.12 mm
4	T293131	1	Shim	TK = 17.14 mm
4	T293132	1	Shim	TK = 17.16 mm
4	T293133	1	Shim	TK = 17.18 mm
4	T293134	1	Shim	TK = 17.2 mm
4	T293135	1	Shim	TK = 17.22 mm
4	T293136	1	Shim	TK = 17.24 mm
4	T293137	1	Shim	TK = 17.26 mm
4	T293138	1	Shim	TK = 17.28 mm
4	T293139	1	Shim	TK = 17.3 mm
4	T293140	1	Shim	TK = 17.4 mm
4	T293108	1	Shim	TK = 16.68 mm
4	T293118	1	Shim	TK = 16.88 mm
4	T293097	1	Shim	TK = 16 mm
4	T293098	1	Shim	TK = 16.1 mm
4	T293099	1	Shim	TK = 16.2 mm
4	T293100	1	Shim	TK = 16.3 mm
4	T293101	1	Shim	TK = 16.4 mm
4	T293102	1	Shim	TK = 16.5 mm
4	T293103	1	Shim	TK = 16.56 mm
4	T293104	1	Shim	TK = 16.6 mm
4	T293105	1	Shim	TK = 16.62 mm
4	T293106	1	Shim	TK = 16.64 mm
4	T293109	1	Shim	TK = 16.7 mm
4	T314054	1	Shim	TK = 16.89 mm
4	T293117	1	Shim	TK = 16.86 mm
4	T293116	1	Shim	TK = 16.84 mm
4	T293115	1	Shim	TK = 16.82 mm
4	T293114	1	Shim	TK = 16.8 mm
4	T293113	1	Shim	TK = 16.78 mm
4	T293112	1	Shim	TK = 16.76 mm
4	T293111	1	Shim	TK = 16.74 mm
4	T293110	1	Shim	TK = 16.72 mm
4	T293107	1	Shim	TK = 16.66 mm
5	AL79794	1	Tapered Roller Bearing	-
6	T228722	1	Guard	-
7	T218489	1	Flange	-
8	T159316	1	Washer	-
9	T228709	1	Nut	-
10	T230865	1	Pinion	Z=10, NLA; ORDER T293142
10	T293142	1	Pinion	Z=10
11	AT519287	1	Bevel Gear	-

Rear Spiral Bevel Input Pinion and Ring Gear Set

Нет текстового описания
