Открытый узел

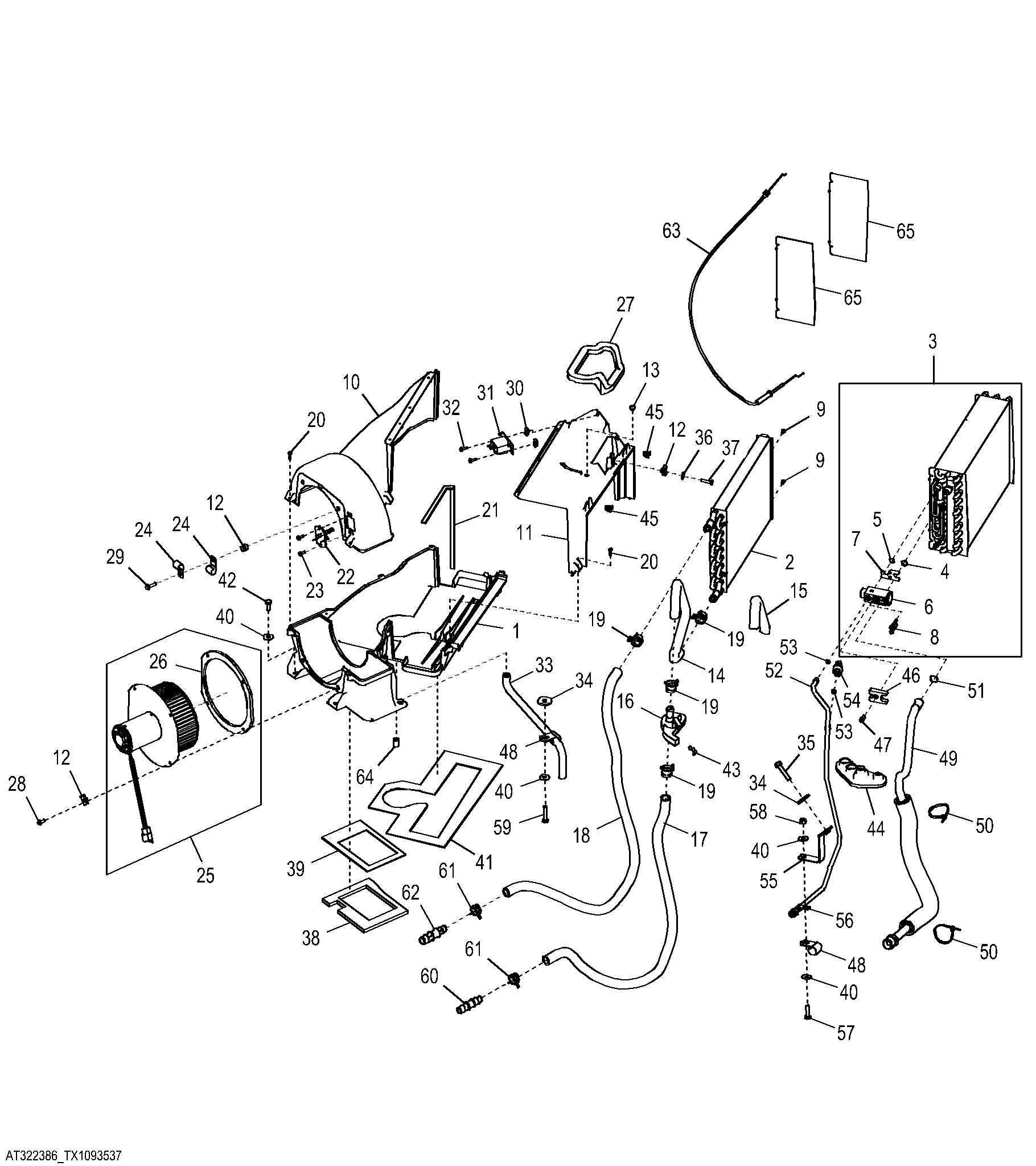

Heater and Air Conditioning with Pressurizer

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T164618	1	Housing	Bottom
2	AT392550	1	Core	Heater, SUB FOR AT362074
3	AT392552	1	Evaporator	-
3	AT362075	1	Evaporator	NLA, ORDER AT392552
4	R183411	1	O-Ring	13.995 X 1.778 mm (0.551" X 0.070")
5	R183410	1	O-Ring	10.820 X 1.778 mm (0.426" X 0.070")
6	RE174764	1	Valve	Expansion, USE WITH AT362075, SUB FOR AT189639
6	RE283957	1	Valve	Expansion, USE WITH AT392552
7	T181522	1	Plate	-
8	PT11778	2	Bolt	M5 X 38
9	19M7775	4	Screw	M6 X 16
10	T205969	1	Housing	-
11	T164620	1	Housing	-
12	M84972	5	Nut	-
13	T178971	1	Grommet	-
14	T185789	1	Radiator Hose	-
15	T186766	1	Hose Guard	-
16	AT193500	1	Hand Operated Valve	Water
17	-	1	Part 19	MAKE FROM T60811 CTL 2.75 ft
18	-	1	Part 20	MAKE FROM T60811 CTL 3.17 ft
19	T184924	4	Hose Clamp	-
20	T178118	13	Cap Screw	-
21	T184369	2	Isolator	-
22	AT456900	1	Resistor	SUB FOR AT210515 AND AT433236
23	37H91	2	Screw	0.190" X 1/2"
24	AH89557	2	Clip	-
25	AT456707	1	Blower Motor	Pressurizer Blower, SUB FOR AT365428 AND AT400506
26	T184368	1	Seal	-
27	T184370	1	Isolator	-
28	T178251	3	Cap Screw	-
29	19M7863	1	Screw	M6 X 25
30	R50279	2	Nut	-
31	RE198074	1	Temperature Switch	Air Conditioning Thermostat Switch
32	37M7073	2	Screw	-
33	AT186304	1	Hose	Drain Hose One Way Valve, INCLUDES
33	T184415	1	Plug	Heater Only
34	24H1296	2	Washer	11/32" X 1-3/8" X 0.134"
35	19M7799	1	Screw	M8 X 45, SUB FOR 19M7922
36	24M7139	1	Washer	6.400 X 18 X 1.600 mm
37	19M7933	1	Cap Screw	M6 X 25
38	T185843	1	Isolator	-
39	T185842	1	Isolator	-
40	24M7207	7	Washer	8.400 X 24 X 2 mm
41	T185845	1	Isolator	-
42	19M7881	6	Screw	M8 X 20
43	L57881	1	Clip	-
44	T166297	1	Grommet	-
45	R120160	4	Clip	-
46	R125223	1	Plate	-
47	19M8553	1	Screw	M6 X 16
48	T70659	2	Clamp	-
49	AT191990	1	Refrigerant Hose	-
50	R44302	2	Tie Band	-
51	T143169	1	O-Ring	-
52	AT303214	1	Line	Liquid Refrigerant
53	R10093	2	O-Ring	-
54	RE157329	1	Switch	-
55	AT325288	1	Bracket	-
56	T13814	1	Clamp	-
57	19M7513	1	Cap Screw	M8 X 30
58	14M7298	1	Flange Nut	M8
59	19M7922	1	Cap Screw	M8 X 40
60	T160492	1	Fitting	-
61	R117721	2	Clamp	-
62	T245447	1	Fitting	-
63	AT186289	1	Cable	-
64	T178971	1	Grommet	Heater Only Cap
65	T184414	2	Sheet	Heater Only

Heater and Air Conditioning with Pressurizer
