Fuel Filter and Lines without Air Conditioning (Engine 4045HT054, 4045HL288-)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT199908	1	Fuel Cooler	-
2	19M7898	2	Screw	M10 X 130
3	T249320	2	Bushing	-
4	-	1	Part 4	MAKE FROM T315545, CTL 2.71 m (106.800 in)
5	-	1	Part 5	MAKE FROM M87571, CTL 112.78 cm (44.400 in)
6	-	1	Part 6	MAKE FROM M87571, CTL 76.20 mm (3.000 in)
7	T237868	2	Clamp	-
8	24M7239	2	Washer	10.700 X 21 X 2.500 mm
9	19M7550	2	Cap Screw	M10 X 35
10	38H5008	2	Adapter Fitting	-
11	T77613	2	O-Ring	-
12	51M7040	2	O-Ring	9.300 X 2.200 mm
13	RE46686	2	Fitting Plug	-
14	T74416	1	Clamp	-
15	24M7238	1	Washer	8.700 X 17 X 2 mm
16	19M7932	1	Cap Screw	M8 X 16
17	AT335148	1	Hydraulic Hose	Fabricate
18	AT335146	1	Hose	-
19	R44302	1	Tie Band	-
20	AH77869	1	Clip	-
21	19M7572	1	Cap Screw	M10 X 45
22	28H3383	1	Bushing	0.493" X 0.675" X 3/4"
23	TY22462	2	Clamp	-
24	AR77962	2	Hose Clamp	-
25	T238878	2	Fuel Line	-
26	R97021	4	Clamp	-
27	T239581	1	Bracket	-
28	R115350	1	Grommet	-
29	T239654	1	Hose Support	-
30	RE530385	1	Filter	Primary Fuel Filter and Water Separator with Low Pressure Fuel Pump
31	RE526834	1	Filter Kit	Retaining Ring Filter Assembly
32	RE51650	1	Sediment Bowl	-
33	RE541922	1	Filter Element	-
34	RE516512	1	O-Ring Kit	-
35	RE516553	1	Seal Kit	-
36	RE519696	1	Sensor	Water In Fuel
37	57M9556	1	Elec. Connector Accessory	Lock
38	57M7256	1	Elec. Connector Housing	Water In Fuel
38	R104919	2	Elec. Connector Terminal	-
38	57M7258	2	Elec. Connector Seal	-

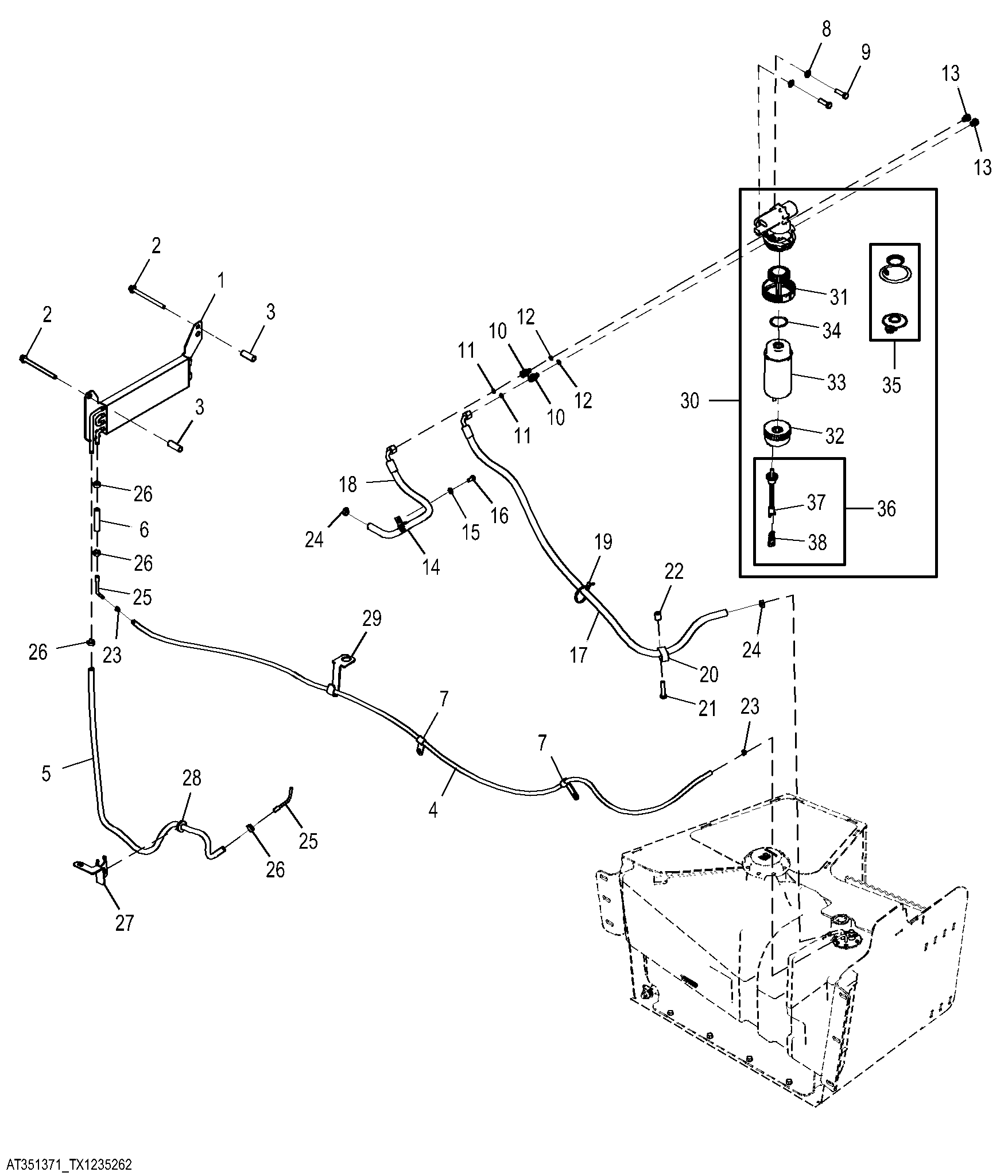

Fuel Filter and Lines without Air Conditioning (Engine 4045HT054, 4045HL288-)

Нет текстового описания
