Открытый узел

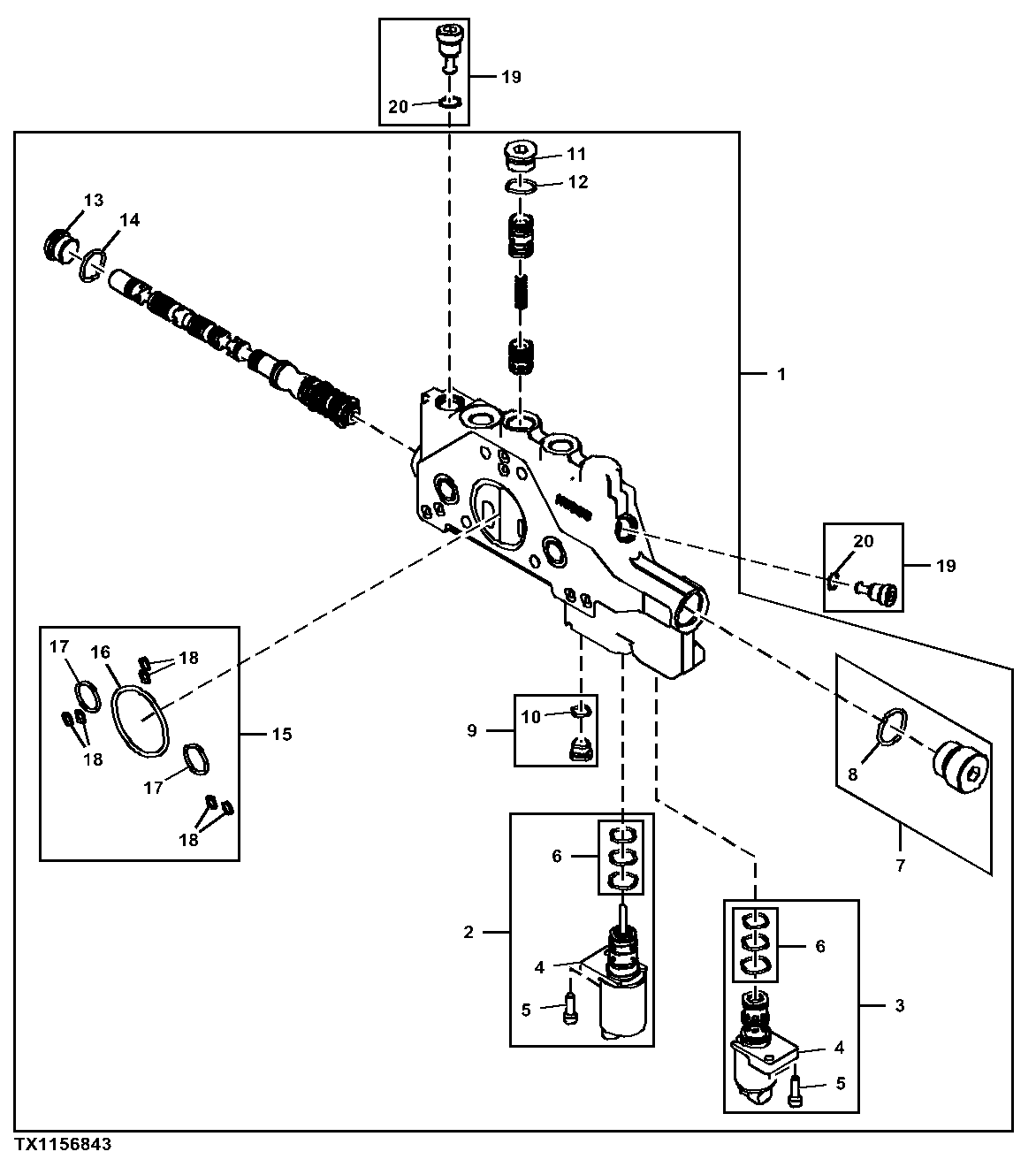

(EH) Loader - Backhoe Auxiliary Section

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT310083	1	Valve	Component Parts Auxiliary Valve Section Kit, NLA, ORDER
1	AT336766	1	Elec-Hyd Proportional Valve	-
2	AT354986	1	Solenoid Valve	-
3	RE244312	1	Solenoid Valve	-
4	AT355058	1	Clamp	-
5	19M7603	1	Screw	M6 X 20
6	RE213499	1	Seal Kit	-
7	AT336679	1	Fitting Plug	-
8	U17409	1	O-Ring	26.594 X 2.946 mm (1-3/64" X 0.116")
9	A73182	1	Pipe Plug	-
10	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
11	X10HP5ON-S	1	Fitting Plug	-
12	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
13	X10HP5ON-S	1	Fitting Plug	-
14	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
15	AT336646	1	Seal Kit	-
16	F37030228	1	O-Ring	56.744 X 3.531 mm (2-15/64" X 0.139")
17	R139897	2	O-Ring	21.895 X 2.616 mm (0.862" X 0.103")
18	R10093	6	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
19	AT338213	2	Pressure Relief Valve	1450 psi
19	AT338214	2	Pressure Relief Valve	1740 psi
19	AT338215	2	Pressure Relief Valve	2030 psi, Required for Thumb Installation
19	AT338216	2	Pressure Relief Valve	2175 psi
19	AT338217	2	Pressure Relief Valve	2320 psi
19	AT338218	2	Pressure Relief Valve	2538 psi
19	AT338219	2	Pressure Relief Valve	2755 psi
19	AT338220	2	Pressure Relief Valve	3045 psi
19	AT338221	2	Pressure Relief Valve	3335 psi
19	AT336651	2	Pressure Relief Valve	3800 psi, Anticavitation Required for Thumb Installation
20	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")

(EH) Loader - Backhoe Auxiliary Section

Нет текстового описания
