Cooling System Hoses and Fittings (Engine 4045HT054, 4045HL288-)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT334597	1	Angle	-
2	19M8637	4	Cap Screw	M10 X 40
3	24M7296	3	Washer	10.500 X 30 X 2.500 mm
4	AT320220	1	Tank	-
5	AH89557	2	Clip	-
6	T152608	1	Clamp	-
7	24M7238	6	Washer	8.700 X 17 X 2 mm
8	19M7008	1	Cap Screw	M8 X 10
9	AT310335	1	Filler Cap	103.42 kp (15 psi)
10	19M7932	4	Cap Screw	M8 X 16
11	AL204009	1	Aftercooler	SUB FOR AL181625
12	T254819	1	Gasket	SUB FOR L157267
13	L171071	4	Bushing	-
14	L171072	4	Bushing	-
15	L157268	1	Elec. Connector Terminal	-
16	19M7868	4	Screw	M8 X 30
17	AT349970	1	Plate	-
18	AT349069	1	Oil Cooler	Hydraulic Oil Cooler
19	19M7785	9	Screw	M10 X 25
20	AT349069	1	Oil Cooler	Transmission Cooler
21	T148409	3	Nut	-
22	19M7804	3	Screw	M10 X 40
23	AH61472	1	Hose Fitting	-
24	U12547	1	O-Ring	-
25	R225971	14	Clamp	SUB FOR T217175
26	T288228	1	Elbow Fitting	-
27	U12547	1	O-Ring	-
28	-	1	Part 28	MAKE FROM T78497 CTL, 109.73 cm (43.200 in)
29	AT454047	1	Elbow Fitting	-
30	R26906	1	O-Ring	-
31	-	1	Part 31	MAKE FROM T78497 CTL, 161.54 cm (63.600 in)
32	AT301917	4	Hose Clamp	-
33	AT300153	3	Hose Clamp	-
34	T162675	2	Clamp	-
35	T239060	1	Radiator Hose	-
36	T238896	1	Radiator Hose	-
37	-	1	Part 37	MAKE FROM TY22556 CTL, 41.91 cm (16.500 in)
38	R191781	4	Hose Clamp	SUB FOR T185826
39	T254529	1	Elbow Fitting	-
40	51M7043	1	O-Ring	15.300 X 2.200 mm
41	AT363659	1	Tube	SUB FOR AT350940
42	AT362597	1	Tube	SUB FOR AT335700
43	28H3383	2	Bushing	0.493" X 0.675" X 3/4"
44	U13055	2	CLAMP	-
45	T226155	1	Radiator Hose	-
46	T174427	7	Clamp	-
47	T226273	1	Hose	-
48	AT105289	2	Clamp	-
49	T226250	2	Radiator Hose	-
49	T250199	2	Radiator Hose	-
50	-	1	Part 51	MAKE FROM TY22566 CTL, 109.73 cm (43.200 in)
51	-	1	Part 52	MAKE FROM TY22566 CTL, 109.73 cm (43.200 in)
52	-	1	Part 53	MAKE FROM TY22566 CTL, 97.54 cm (38.400 in)
53	-	1	Part 54	MAKE FROM TY22566 CTL, 143.26 cm (56.400 in)
54	T246173	1	Bracket	SUB FOR T239061
55	19M7550	3	Cap Screw	M10 X 35
56	14M7274	3	Nut	M10
57	19M8324	3	Cap Screw	M10 X 16
58	T238865	1	Hose	-
59	T238897	1	Hose	-
60	24M7239	5	Washer	10.700 X 21 X 2.500 mm
61	T149597	1	Clamp	-
62	T239433	1	Radiator Hose	-
63	19M7402	1	Cap Screw	M10 X 25
64	T216078	1	Plate	-
65	19M8017	1	Cap Screw	M12 X 20
66	T72393	1	Clamp	-
67	T226138	1	Radiator Hose	-
68	AT349069	1	Oil Cooler	Hydraulic Oil Cooler

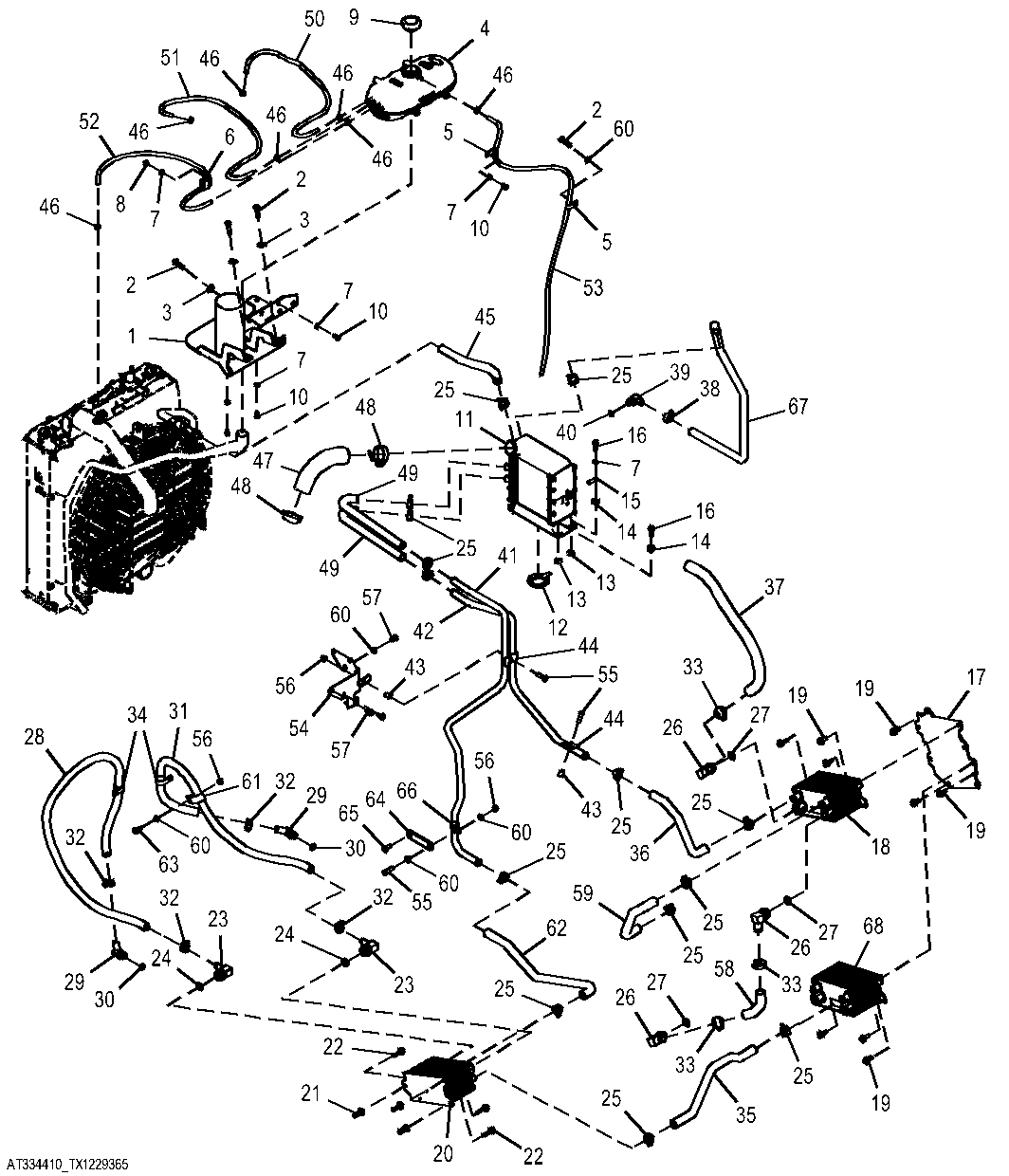

Cooling System Hoses and Fittings (Engine 4045HT054, 4045HL288-)
