Открытый узел

Auxiliary Select Flow Hydraulics Kit

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

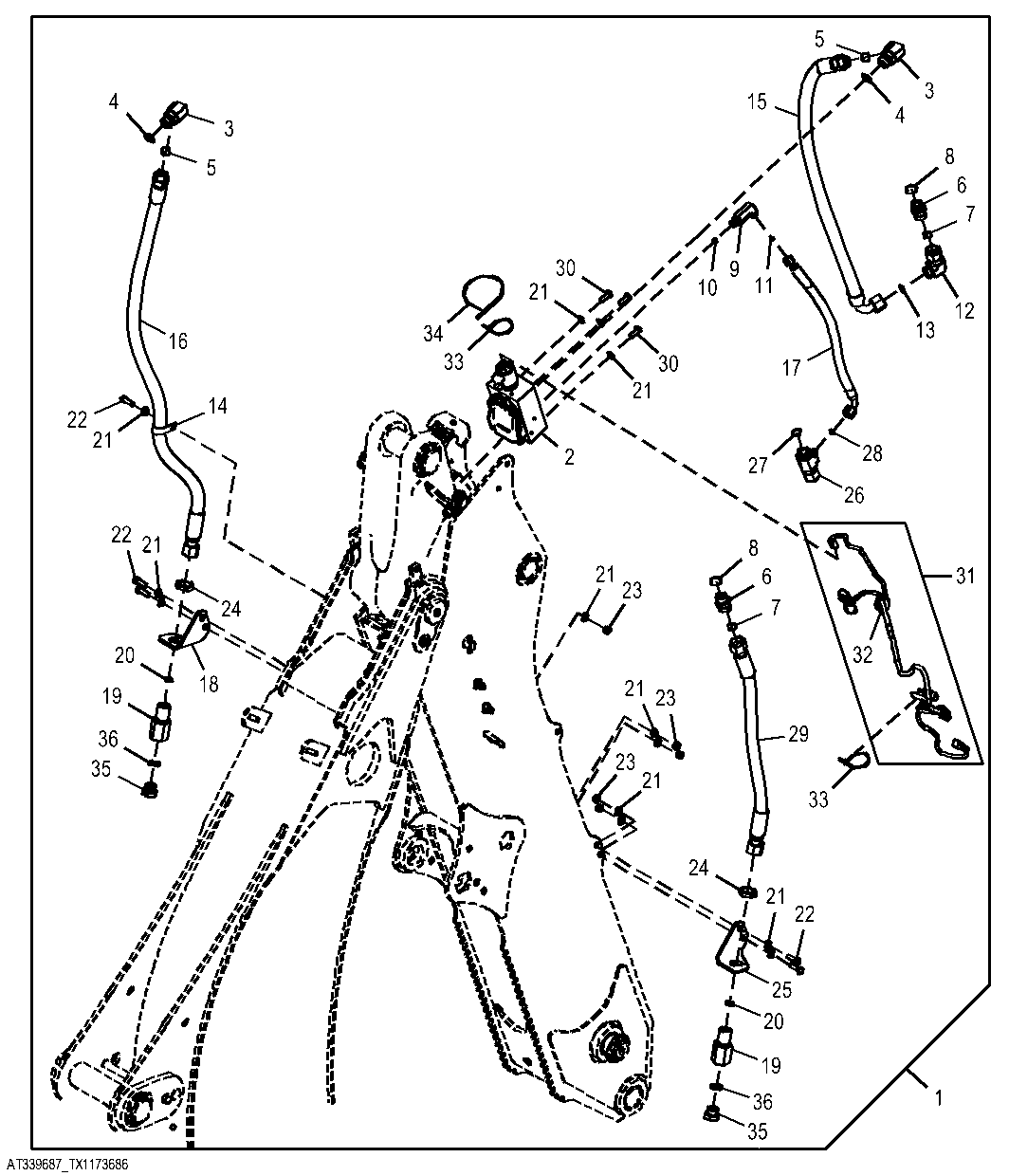

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT417211	1	Software	K-Series Software Available Through John Deere Custom Performance Website
1	AT339687	1	Valve Kit	Whole Goods
2	AT348714	1	Elec-Hyd Proportional Valve	Hammer Valve Components On Separate Page
3	38H1007	2	Elbow Fitting	-
4	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
5	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
6	38H1163	2	Adapter Fitting	-
7	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
8	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
9	38H1568	1	Elbow Fitting	-
10	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
11	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
12	38H1097	1	Elbow Fitting	-
13	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
14	T162675	1	Clamp	-
15	AT325766	1	Hydraulic Hose	-
16	AT325767	1	Hydraulic Hose	-
17	AT325768	1	Hydraulic Hose	-
18	T205636	1	Bracket	-
19	T163702	2	Reducer	-
20	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
21	24M7239	13	Washer	10.700 X 21 X 2.500 mm
22	19M7662	5	Cap Screw	M10 X 30
23	14M7274	5	Nut	M10
24	T78707	2	Nut	-
25	T205637	1	Bracket	-
26	38H1532	1	Tee Fitting	-
27	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
28	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
29	AT325562	1	Hydraulic Hose	-
30	19M7402	3	Cap Screw	M10 X 25
31	AT323642	1	Wiring Harness	Hammer Valve
32	57M8131	1	Electronic Terminator	-
33	R44302	2	Tie Band	-
34	H77698	1	Tie Band	-
35	64H1007	2	Drain Plug	-
36	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")

Auxiliary Select Flow Hydraulics Kit

Нет текстового описания
