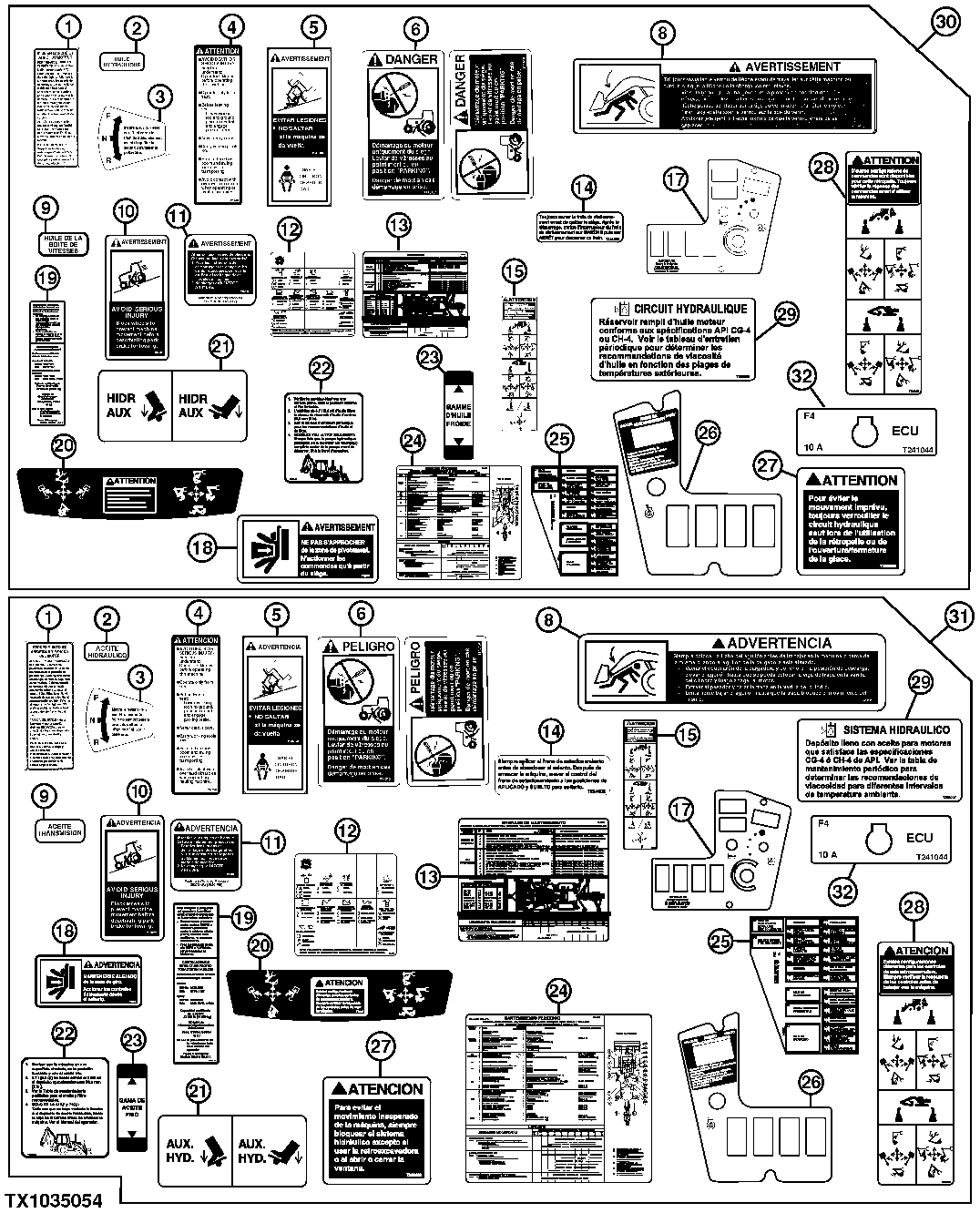

Trademarks and Labels (French and Spanish) (Engine TT095)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
20	T185553	1	Label	BACKHOE CONTROL (2 LEVER) (SPANISH)
20	T188018	1	Label	ATTENTION - BACKHOE CONTROL (2 LEVER) (SAE) (FRENCH)
20	T188019	1	Label	ATTENTION - BACKHOE CONTROL (2 LEVER) (SAE) (SPANISH)
20	T185577	1	Label	BACKHOE CONTROL (2 LEVER) (FRENCH)
21	T185695	1	Label	FOOT PEDAL (FRENCH)
21	T185696	1	Label	FOOT PEDAL (SPANISH)
22	T223062	1	Label	HYDRAULIC RESERVOIR (FRENCH)
22	T223061	1	Label	HYDRAULIC RESERVOIR (SPANISH)
23	T186128	1	Label	HYDRAULIC OIL LEVEL (FRENCH)
23	T186125	1	Label	HYDRAULIC OIL LEVEL (SPANISH)
24	T247904	1	Label	(SUB FOR <service-part qty="1">T216715</service-part>)PERIODIC MAINTENANCE (FRENCH)
24	T247905	1	Label	(SUB FOR <service-part qty="1">T216716</service-part>)PERIODIC MAINTENANCE (SPANISH)
25	T216529	1	Label	FUSE BLOCK (SPANISH)
25	T225661	1	Label	(ALSO ORDER <service-part qty="1">T241044</service-part>)FUSE BLOCK (SPANISH)
25	T225662	1	Label	(ALSO ORDER <service-part qty="1">T241044</service-part>)FUSE BLOCK (FRENCH)
25	T216530	1	Label	FUSE BLOCK (FRENCH)
26	T186441	1	Label	INSTRUMENT PANEL (FRENCH)
26	T186442	1	Label	INSTRUMENT PANEL (SPANISH)
27	T200659	1	Safety Sign	CAUTION (MOTION) (FRENCH)
27	T200660	1	Safety Sign	CAUTION (MOTION) (SPANISH)
28	T200895	1	Safety Sign	BACKHOE CONTROLS (FRENCH)
28	T200896	1	Safety Sign	BACKHOE CONTROLS (SPANISH)
29	T208008	1	Label	HYDRAULIC RESERVOIR (FRENCH)
29	T208007	1	Label	HYDRAULIC RESERVOIR (SPANISH)
30	-	1	Part 25	-
31	-	1	Part 26	-
32	T241044	1	Label	FUSE DECAL - ECU

Trademarks and Labels (French and Spanish) (Engine TT095)

Нет текстового описания
