Stabilizer Cylinder and Repair Kit (Standard Stabilizer) ( - 208445)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH219540	1	Hydraulic Cylinder Barrel	Right, NLA, ORDER AHC14416 ALSO ORDER 38H5035, 51M7042, AND T77613
1	AH219539	1	Hydraulic Cylinder Barrel	Left, NLA, ORDER AHC14415 ALSO ORDER 38H5035, 51M7042, AND T77613
2	19M8353	1	Cap Screw	M30 X 80
3	H145175	1	Washer	-
4	F1430R	1	O-Ring	-
5	R79101	1	Back-Up Ring	-
6	H180103	1	Snap Ring	-
7	H181114	1	O-Ring	-
8	H206859	1	Snap Ring	-
9	AH205060	1	Piston	-
10	H208631	1	Hydr. Cylinder Rod Guide	-
11	AH146561	1	Seal	-
12	H152203	1	Seal	-
13	H208987	1	Wear Ring	-
14	AH146557	1	Seal	-
15	H154404	1	Bushing	-
16	AH147902	1	Hydraulic Cylinder Rod	-
17	AH219537	1	Hydraulic Cylinder	Left Components On Separate Page, NLA, ORDER AHC14415 ALSO ORDER 38H5035, 51M7042, AND T77613
17	AH219538	1	Hydraulic Cylinder	Right Components On Separate Page, NLA, ORDER AHC14416 ALSO ORDER 38H5035, 51M7042, AND T77613
17	AHC14415	1	Hydraulic Cylinder	Left Requires Components On Separate Page, 38H5035, 51M7042, AND T77613
17	AHC14416	1	Hydraulic Cylinder	Right Requires Components On Separate Page, 38H5035, 51M7042, AND T77613
17	38H5035	1	Elbow Fitting	Components On Separate Page
17	51M7042	1	O-Ring	13.300 X 2.200 mm, Components On Separate Page
17	T77613	1	O-Ring	Components On Separate Page
18	AH210484	1	Hydraulic Cylinder Kit	Rod
19	AH212097	1	Hydraulic Cylinder Kit	Bore Does Not Include The Two Outter Injected Nylon Piston Seals

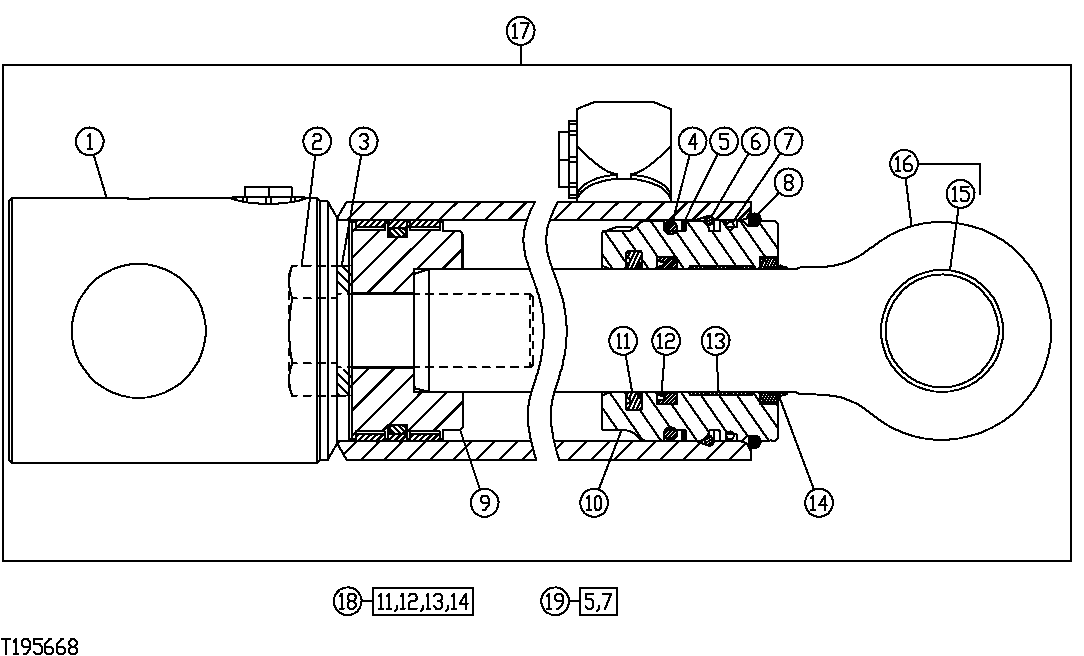

Stabilizer Cylinder and Repair Kit (Standard Stabilizer) ( - 208445)

Нет текстового описания
