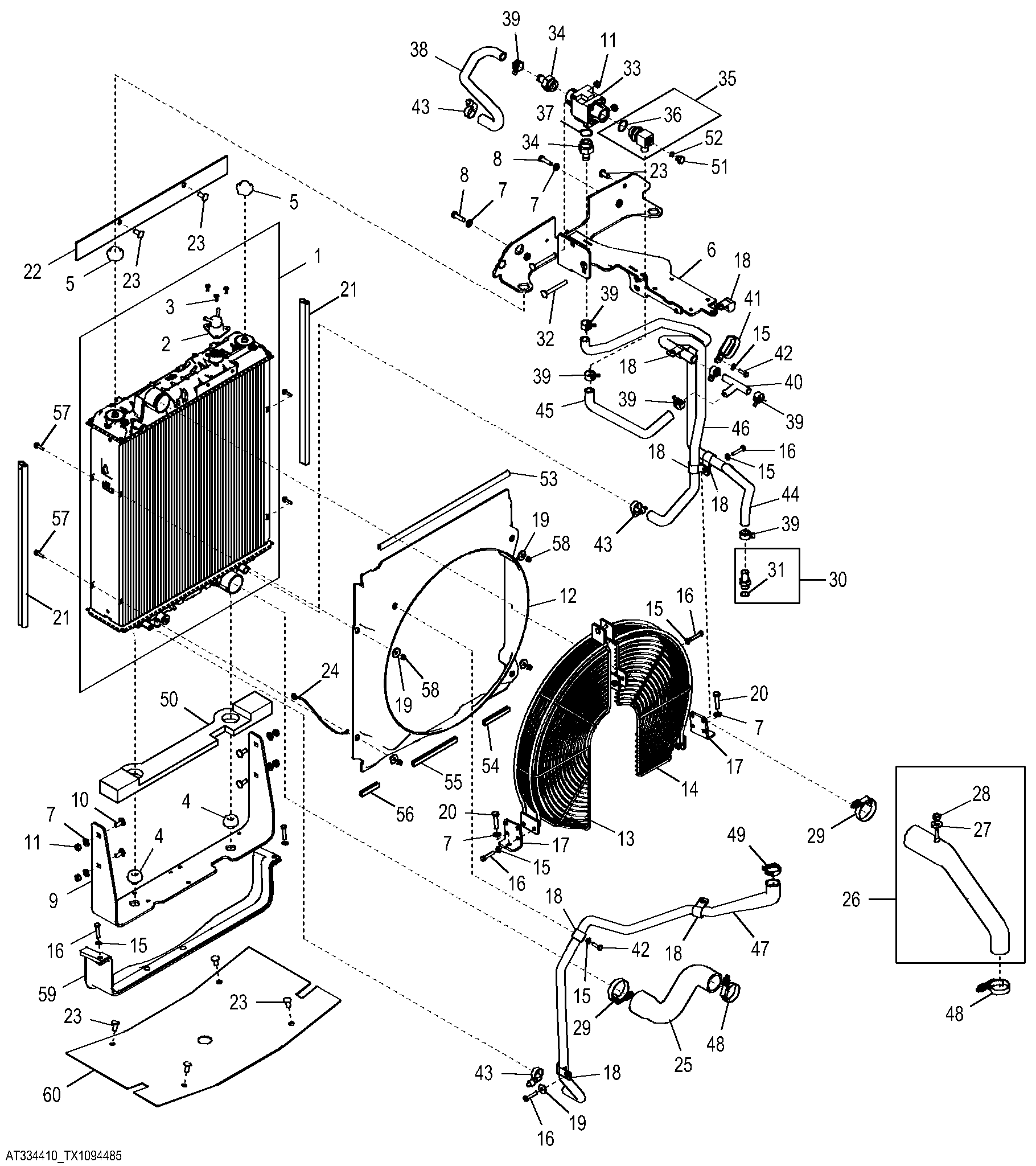

Radiator, Hoses, Fan Shroud, and Guard (Engine 4045HT054, 4045HL288-)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL155781	1	Drain Plug	With O-Ring Not Illustrated
1	AT393358	1	Radiator	66.30 cm (26.102 in), Tank to Tank, SUB FOR AT351272
1	R98502	1	Ring	14.400 X 2 mm (0.567" X 0.079"), Not Illustrated
1	R26286	1	O-Ring	10.516 X 1.829 mm (0.414" X 0.072"), Not Illustrated
1	AL176130	1	Drain Valve	w/ O-Rings Not Illustrated
1	R183409	1	O-Ring	7.645 X 1.778 mm (0.301" X 0.070"), Not Illustrated
1	L77581	1	O-Ring	14 X 2 mm (0.551" X 0.079"), Not Illustrated, FOR AL155781
2	T214276	1	Adapter Fitting	-
2	L169999	1	O-Ring	9.00 mm X 5.00 mm X 3.00 mm (0.354 in X 0.197 in X 0.118 in)
2	L209135	1	O-Ring	27 X 2.800 mm (1-1/16" X 0.110"), SUB FOR L169998
3	21M7246	3	Screw	M6 X 16
4	KV25173	2	Isolator	-
5	T216248	2	Isolator	-
6	AT334592	1	Angle	-
7	24M7239	8	Washer	10.700 X 21 X 2.500 mm
8	19M7550	2	Cap Screw	M10 X 35
9	T213481	1	Angle	-
10	03M7307	4	Bolt	M10 X 25
11	14M7274	6	Nut	M10
12	AT322503	1	Shroud	-
13	AT312426	1	Guard	-
14	AT323152	1	Guard	-
15	24M7238	7	Washer	8.700 X 17 X 2 mm
16	19M7922	6	Cap Screw	M8 X 40
17	T216350	2	Plate	-
18	R46667	7	Clamp	-
19	24M7024	5	Washer	9 X 28 X 3 mm
20	19M7572	2	Cap Screw	M10 X 45
21	-	2	Part 29	MAKE FROM AT305126, CTL 57.91 cm (22.800 in)
22	T216877	1	Isolator	-
23	MT2485	7	Plug	-
24	AT324273	1	Ground Cable	-
25	T217366	1	Radiator Hose	-
26	AT344639	1	Radiator Hose	-
27	24H1789	1	Washer	17/32" X 1-1/4" X 0.105"
28	14H856	1	Nut	1/2"
29	AH170895	2	Clamp	-
30	RE223627	1	Hose Fitting	-
31	51M7045	1	O-Ring	19.300 X 2.200 mm
32	03M7247	2	Bolt	M10 X 90
33	AT354811	1	Thermostatic Control Valve	SUB FOR AT320238
34	AT43223	2	Elbow Fitting	90°, Fitting
34	H65405	1	Fitting	Straight Fitting
35	AT355452	1	Adapter Fitting	-
36	R29936	1	O-Ring	-
37	R29936	1	O-Ring	-
38	T226134	1	Radiator Hose	-
38	T286073	1	Radiator Hose	-
39	R191781	7	Hose Clamp	SUB FOR T185826
40	N221912	1	Fitting	-
41	T225865	1	Clamp	-
42	19M7407	2	Cap Screw	M8 X 25
43	R524513	3	Hose Clamp	-
44	T226153	1	Radiator Hose	-
45	T226135	1	Radiator Hose	-
46	T226154	1	Radiator Hose	-
47	T241004	1	Radiator Hose	-
48	RE56098	2	Clamp	-
49	T251567	1	Clamp	SUB FOR L154742
50	T226132	1	Deflector	-
51	T227450	1	Drain Plug	-
52	R26448	1	O-Ring	-
53	-	1	Part 63	MAKE FROM T61861, CTL 54.87 mm (21.600 in)
54	-	1	Part 64	MAKE FROM T61861, CTL 100.58 mm (3.960 in)
55	-	1	Part 65	MAKE FROM T61861, CTL 18.29 cm (7.200 in)
56	-	1	Part 66	MAKE FROM T61861, CTL 70.11 mm (2.760 in)
57	19M7863	4	Screw	M6 X 25
58	14M7397	4	Lock Nut	M6
59	AT353157	1	Deflector	-
60	T241376	1	Deflector	-

Radiator, Hoses, Fan Shroud, and Guard (Engine 4045HT054, 4045HL288-)
