Pilot Enable Select Valve Hydraulics (178749 - 191460)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H1160	1	Adapter Fitting	-
2	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
3	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
4	62H1021	1	Adapter Fitting	SUB FOR AT195201
4	AT193365	1	Seal Kit	-
5	AT187666	6	Adapter Fitting	-
5	AT193365	1	Seal Kit	-
6	AT187669	3	Adapter Fitting	-
7	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
8	38H1173	1	Adapter Fitting	-
9	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
10	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
11	AH125760	1	Hyd. Quick-Connect Coupler	-
12	38H1171	1	Adapter Fitting	-
13	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
14	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
15	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
16	R77175	1	Cover	-
17	AT362129	2	Union Fitting	-
18	T77814	1	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
19	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
20	AT369671	1	Hydraulic Hose	Requires Fabricate, 62H1042 AND T77613
21	AT371352	1	Hydraulic Hose	Requires, 62H1042 AND T77613
22	AT369717	1	Hydraulic Hose	Requires Fabricate, 62H1042 AND T77613
23	AT369717	1	Hydraulic Hose	Requires Fabricate, 62H1042 AND T77613
24	AT369715	1	Hydraulic Hose	Fabricate
25	AT369715	1	Hydraulic Hose	Fabricate
26	AT371351	1	Hydraulic Hose	Fabricate
27	38H1161	1	Adapter Fitting	Requires, 62H1042 AND T77613
28	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070"), Requires, 62H1042 AND T77613
29	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087"), Requires, 62H1042 AND T77613
30	AT371354	1	Hydraulic Hose	Requires Fabricate, 62H1042 AND T77613

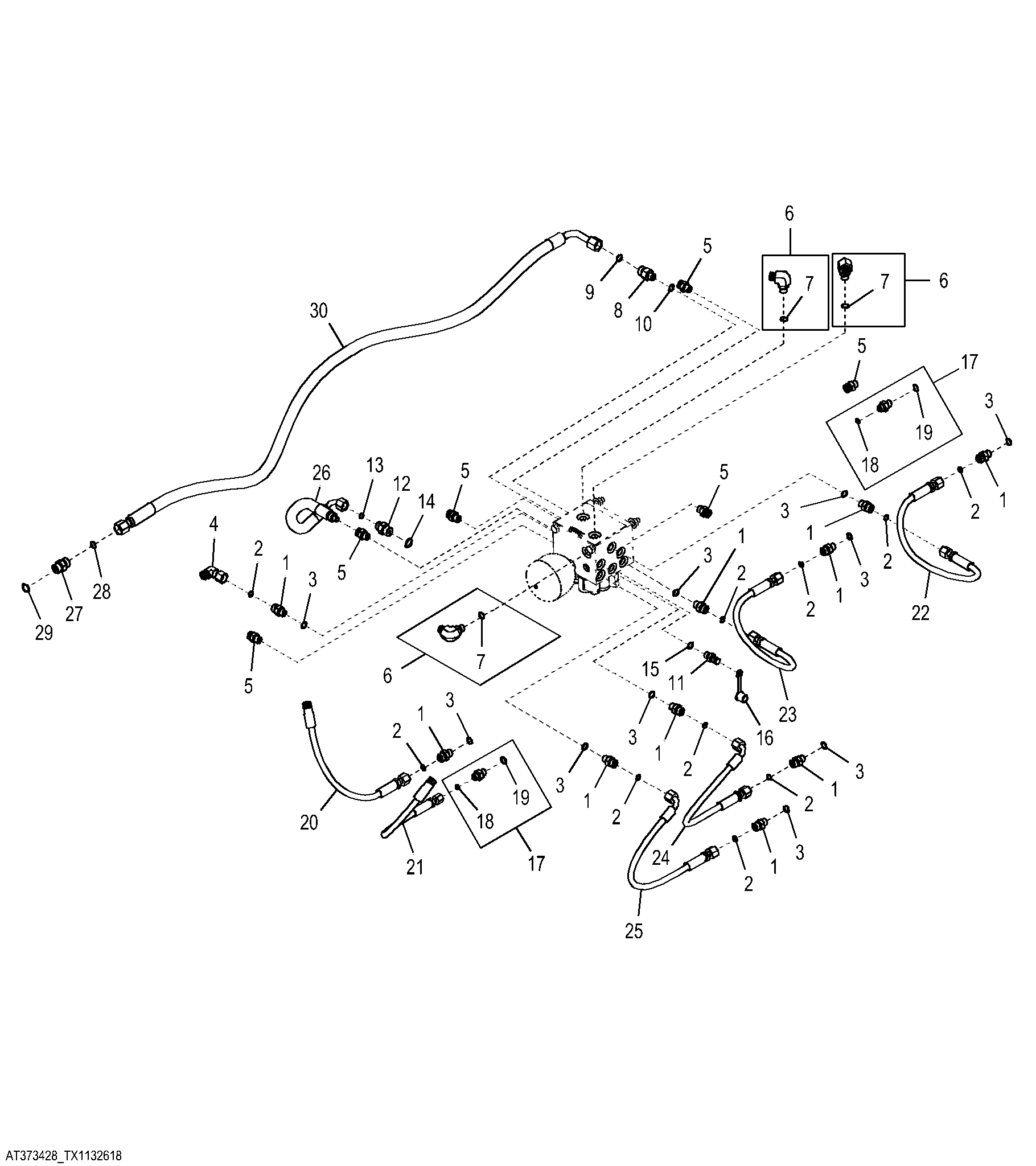

Pilot Enable Select Valve Hydraulics (178749 - 191460)

Нет текстового описания
