Pilot Control Hydraulics (943092 - 178748)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT198416	1	Hydraulic Hose	Fabricate
2	AT198417	1	Hydraulic Hose	Fabricate
3	AT197208	1	Hydraulic Hose	Fabricate
4	AT197208	1	Hydraulic Hose	Fabricate
5	AT197209	1	Hydraulic Hose	Fabricate
5	AT362146	1	Hydraulic Hose	Fabricate
6	AT197208	1	Hydraulic Hose	Fabricate
7	AT199649	1	Hydraulic Hose	Requires Fabricate, 62H1042 AND T77613
8	AT280272	1	Hydraulic Hose	Requires Fabricate, 62H1042 AND T77613
9	38H1160	1	Adapter Fitting	-
10	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
11	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
12	AT362129	2	Union Fitting	-
13	T77814	1	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
14	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
15	38H1045	1	Elbow Fitting	-
16	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
17	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
18	AT197213	1	Hydraulic Hose	Fabricate
19	38H1173	1	Adapter Fitting	-
20	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
21	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
22	AH125760	1	Hyd. Quick-Connect Coupler	-
23	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
24	R77175	1	Cover	-
25	T190311	1	Bracket	-
26	24M7239	4	Washer	10.700 X 21 X 2.500 mm
27	19M7550	2	Cap Screw	M10 X 35
28	14M7274	2	Nut	M10
29	62H1001	5	Adapter Fitting	SUB FOR AT187666
29	AT193365	1	Seal Kit	-
30	AT199495	4	Fitting	Includes, T77613
31	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
32	T81029	6	Nut	-
33	AT199496	2	Tee Fitting	Includes, T77613
34	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
35	AT280200	1	Hydraulic Hose	Requires, 62H1042 AND T77613
36	AT280200	1	Hydraulic Hose	Requires, 62H1042 AND T77613
37	AT317348	1	Hydraulic Hose	Fabricate
38	38H1171	1	Adapter Fitting	-
39	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
40	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
41	38H1161	1	Adapter Fitting	-
42	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
43	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
44	AT187669	3	Adapter Fitting	-
45	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
46	R44302	1	Tie Band	-

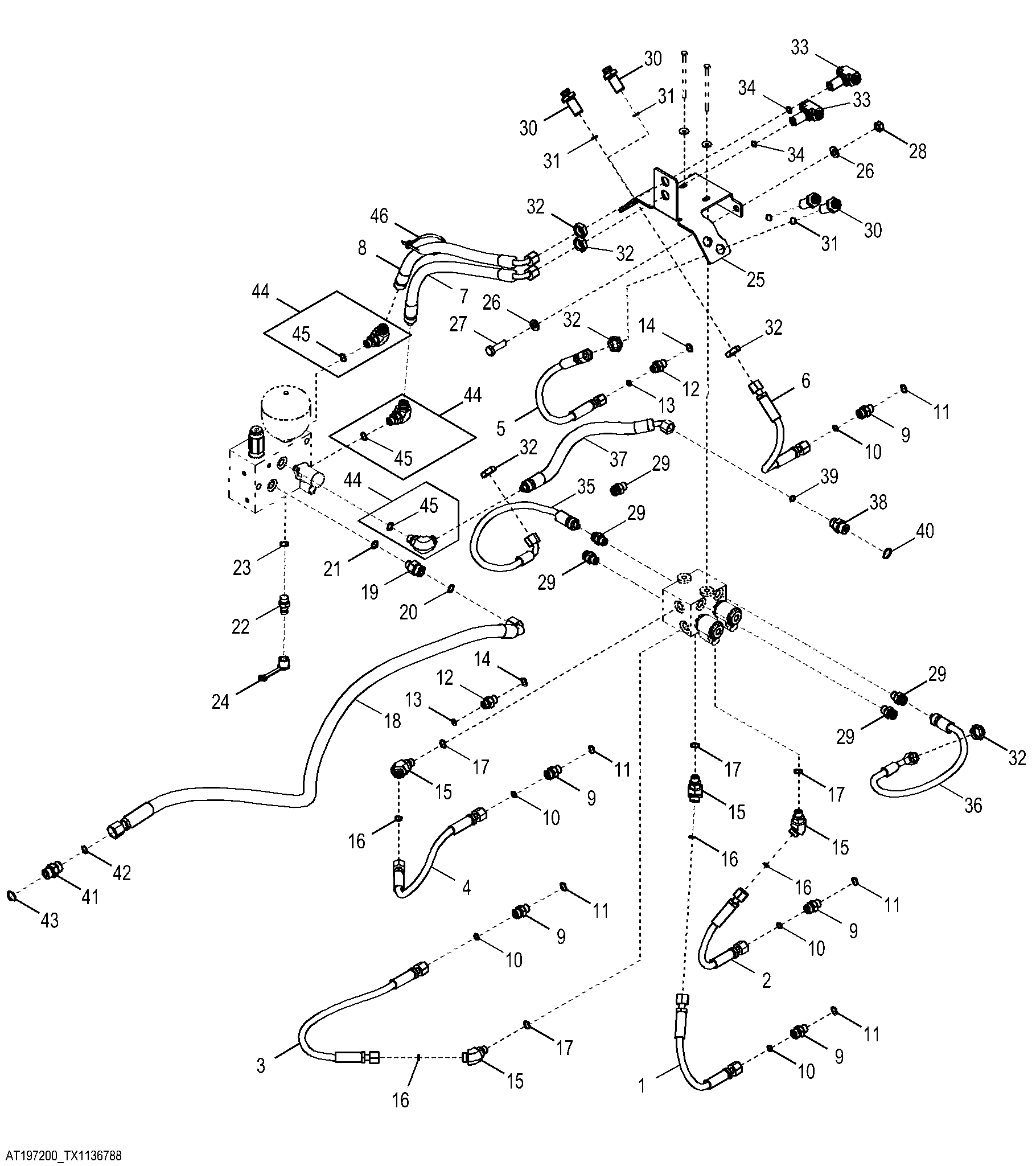

Pilot Control Hydraulics (943092 - 178748)
