Pilot Control Hydraulics ( - 943091)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

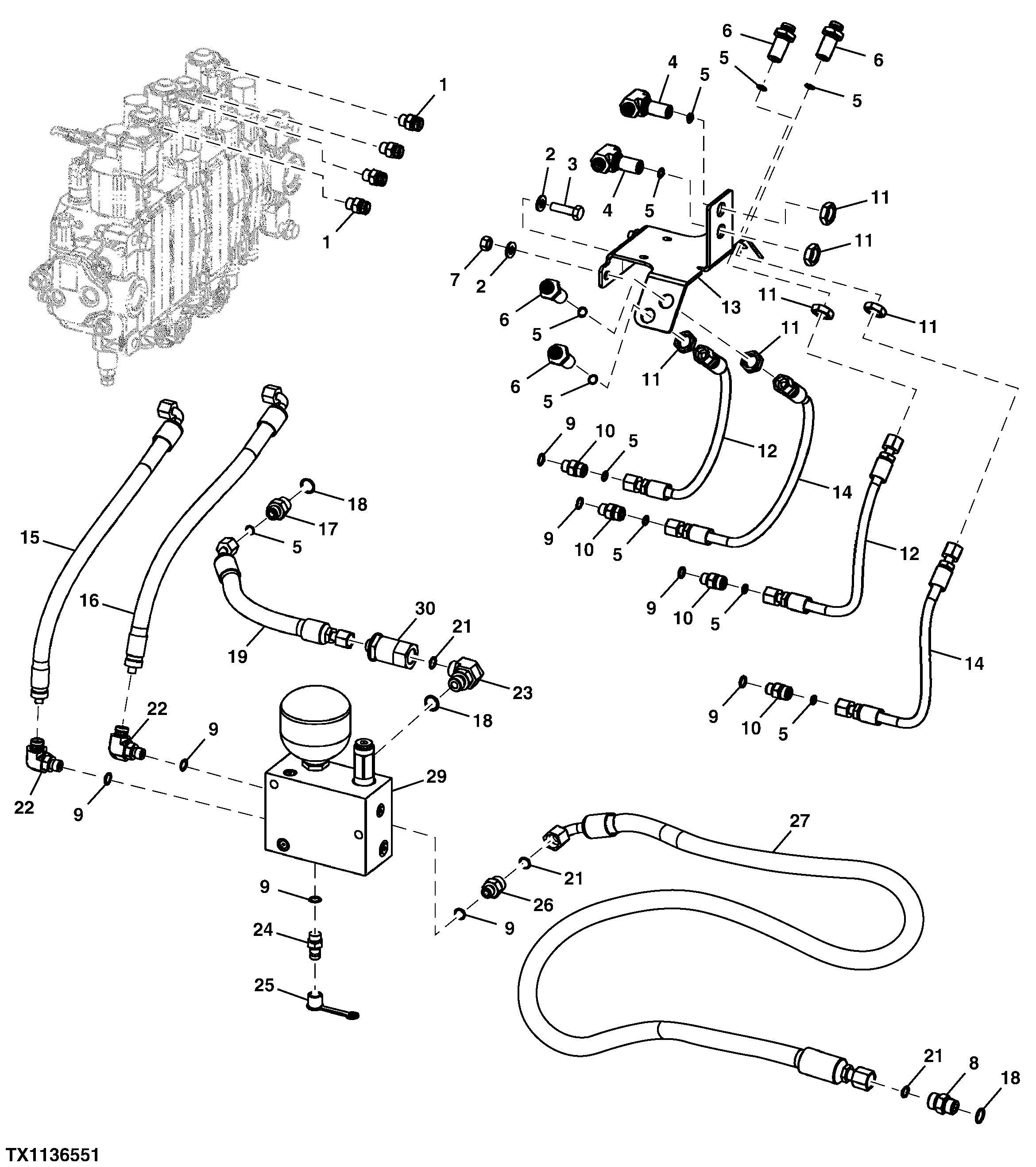

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	62H1001	4	Adapter Fitting	SUB FOR AT187666; INCLUDES R26448
2	24M7239	4	Washer	10.700 X 21 X 2.500 mm
3	19M7550	2	Cap Screw	M10 X 35
4	AT199496	2	Tee Fitting	-
5	T77613	11	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
6	AT199495	4	Fitting	-
7	14M7274	2	Nut	M10
8	38H1161	1	Adapter Fitting	-
9	R26448	8	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
10	38H1160	4	Adapter Fitting	-
11	T81029	6	Nut	-
12	AT197209	2	Hydraulic Hose	17.4752" X 361 mm (14-1/4") X 17.4752", Fabricate
13	T190311	1	Bracket	-
14	AT197208	2	Hydraulic Hose	17.4752" X 400 mm (15-3/4") X 17.4752", Fabricate
15	AT199649	1	Hydraulic Hose	Fabricate, ALSO ORDER 62H1042 AND T77613
16	AT280272	1	Hydraulic Hose	Fabricate, ALSO ORDER 62H1042 AND T77613
17	38H1171	1	Adapter Fitting	-
18	R26375	3	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
19	AT197612	1	Hydraulic Hose	Fabricate
19	AT317348	1	Hydraulic Hose	17.4752" X 368 mm (14-1/2") X 17.4752", Fabricate
21	T77857	3	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
22	62H1011	2	Adapter Fitting	SUB FOR AT187669; INCLUDES R26448
23	38H1005	1	Elbow Fitting	-
23	62H1011	1	Adapter Fitting	-
24	AH125760	1	Hyd. Quick-Connect Coupler	-
25	R77175	1	Cover	-
26	38H1173	1	Adapter Fitting	-
27	AT197213	1	Hydraulic Hose	13/16" X 1540 mm (60-3/4") X 13/16", Fabricate
29	AT197769	1	Flow Control Hyd. Valve	NLA. ORDER AT306550. ALSO ORDER 62H1011, AT317348, 62H1042, AND T77613
29	AT306550	1	Flow Control Hyd. Valve	Components On Separate Page, SUB FOR AT197769
30	AT183869	1	Filter Element	-

Pilot Control Hydraulics ( - 943091)
