Открытый узел

Loader Plumbing 3-Function, Right (204988 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	KV22609	1	Clamp	-
2	T165864	1	Angle	-
3	AT198254	1	Hydraulic Hose	17.3025" X 1834 mm (72-1/4") X 1"
4	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
5	AT198260	1	Hydraulic Hose	13/16" X 1821 mm (71-3/4") X 1", Fabricate
6	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
7	38H1012	1	Elbow Fitting	-
8	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
9	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
10	24M7239	8	Washer	10.700 X 21 X 2.500 mm
11	19M8637	1	Cap Screw	M10 X 40
12	14M7274	4	Nut	M10
13	24M7296	2	Washer	10.500 X 30 X 2.500 mm
14	AT197645	1	Hydraulic Hose	-
15	AT197646	1	Hydraulic Hose	13/16" X 1755 mm (69") X 13/16"
16	AT198257	1	Hydraulic Hose	13/16" X 1896 mm (74-3/4") X 1"
17	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
18	AT198258	1	Hydraulic Hose	13/16" X 1866 mm (73-1/2") X 1"
19	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
20	19M7550	2	Cap Screw	M10 X 35
21	28H3381	6	Spacer	0.493" X 0.675" X 5/8"
22	R46919	6	Half Clamp	-
23	38H1161	1	Adapter Fitting	-
24	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
25	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
26	T105773	2	Guide	-
27	-	1	Part 27	MAKE FROM T78606, CTL 254 mm (10.00 in)
28	-	1	Part 28	MAKE FROM T78606, CTL 254 mm (10.00 in)
29	-	1	Part 29	MAKE FROM T78606, CTL 254 mm (10.00 in)
30	AU12450	1	Hose Clamp	-
31	AT173129	1	Hydraulic Hose	7/8" X 1226 mm (48-1/4") X 1"
32	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
33	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
34	AR21842	1	Clamp	-
35	T159954	4	Clamp	-
36	19M7875	2	Cap Screw	M10 X 70
37	R44302	6	Tie Band	-
38	19M8081	1	Cap Screw	M10 X 80
39	T206908	1	Shield	-
40	19M7662	1	Cap Screw	M10 X 30
41	AT321152	1	Oil Line	-
42	AT321155	1	Oil Line	-
43	AT321156	1	Oil Line	-
44	AT321154	1	Oil Line	-
45	T217085	2	Clamp	-
46	19M7784	2	Screw	M10 X 20
47	AT188560	1	Hydraulic Hose	Fabricate
48	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
49	38H1005	1	Elbow Fitting	-
50	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
51	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")

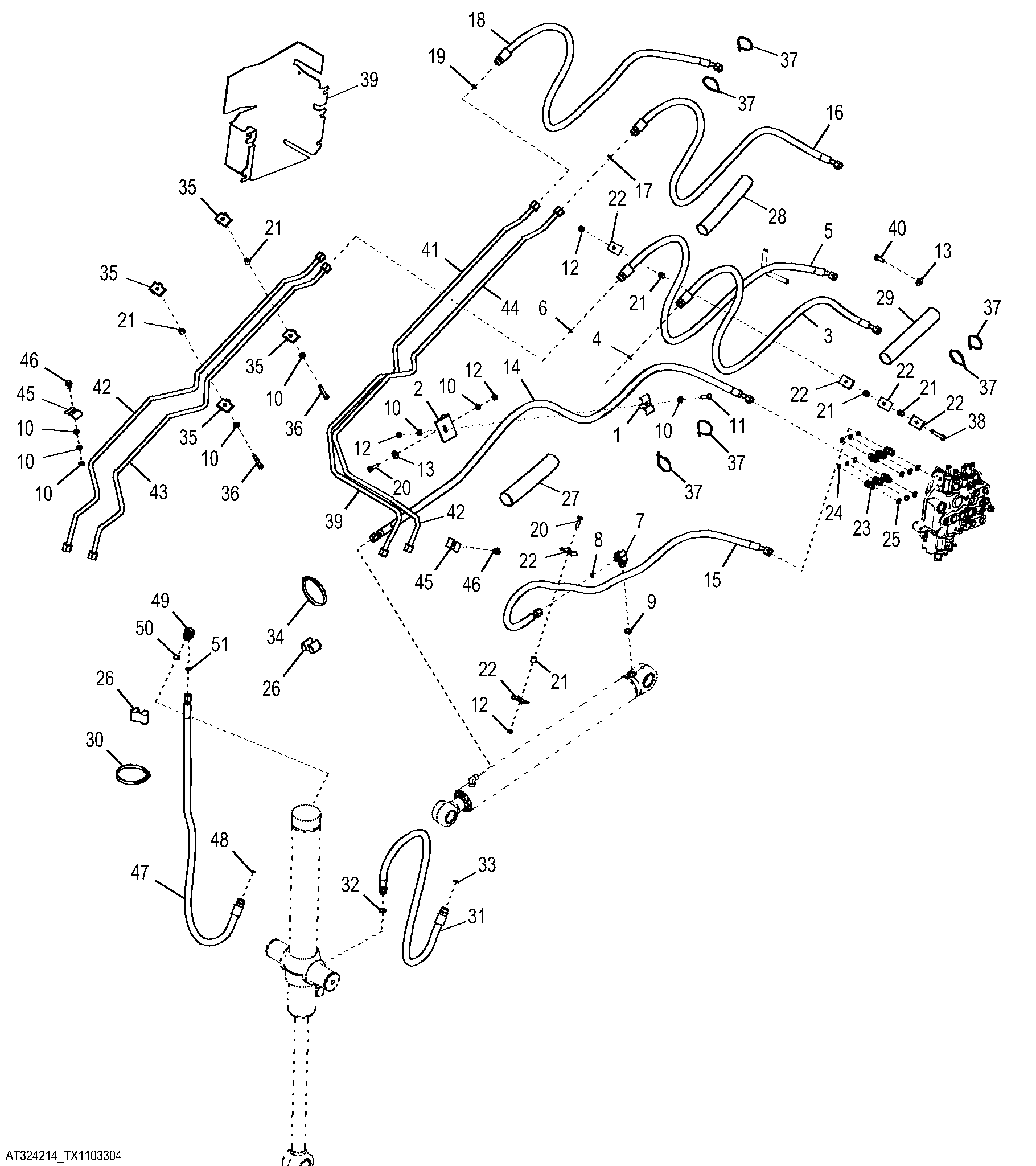

Loader Plumbing 3-Function, Right (204988 - )
