Loader Plumbing, 2-Function Right Side ( - 204987)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H1134	2	Shoulder Fitting	-
1	AT321154	1	Oil Line	Loader Bucket Rod End
1	38H1355	2	Tube Nut	-
2	AT198257	1	Hydraulic Hose	Loader Bucket Rod End Fabricate
3	T77932	1	O-Ring	-
4	AT321152	1	Oil Line	Loader Bucket Head End
4	38H1134	2	Shoulder Fitting	-
4	38H1355	2	Tube Nut	-
5	KV22609	1	Clamp	-
6	T165864	1	Angle	-
7	38H1012	1	Elbow Fitting	-
8	T77857	1	O-Ring	-
9	R26906	1	O-Ring	-
10	38H1174	1	Adapter Fitting	-
11	T77857	1	O-Ring	-
12	R26906	1	O-Ring	-
13	24M7239	5	Washer	10.700 X 21 X 2.500 mm
14	19M8637	1	Cap Screw	M10 X 40
15	14M7274	4	Nut	M10
16	24M7296	2	Washer	10.500 X 30 X 2.500 mm
17	AT197645	1	Hydraulic Hose	Loader Boom Rod Right Side Fabricate
18	AT197646	1	Hydraulic Hose	Loader Head End Right Side Fabricate
19	T206908	1	Shield	-
20	AT198258	1	Hydraulic Hose	Loader Bucket Head End Fabricate
21	T77932	1	O-Ring	-
22	19M7662	1	Cap Screw	M10 X 30
23	19M7550	3	Cap Screw	M10 X 35
24	28H3381	2	Spacer	0.493" X 0.675" X 5/8"
25	R46919	4	Half Clamp	-
26	38H1161	4	Adapter Fitting	-
27	T77857	4	O-Ring	-
28	R26375	4	O-Ring	-
29	T105773	2	Guide	-
30	-	1	Part 34	MAKE FROM T61861, CTL 18.60 cm (7.323 in)
31	AU12450	1	Hose Clamp	-
32	AT173129	1	Hydraulic Hose	Loader Bucket Rod End Fabricate
33	R26906	1	O-Ring	-
34	T77932	1	O-Ring	-
35	T159954	2	Clamp	-
36	19M7658	2	Cap Screw	M10 X 50
37	AR21842	1	Clamp	-
38	H77698	4	Tie Band	-
39	-	1	Part 43	MAKE FROM T78606, CTL 25.40 cm (10.000 in)
40	-	1	Part 44	MAKE FROM T78606, CTL 25.40 cm (10.000 in)
41	AT188560	1	Hydraulic Hose	Loader Bucket Head End Fabricate
42	T77932	1	O-Ring	-
43	38H1005	1	Elbow Fitting	-
44	R26375	1	O-Ring	-
45	T77857	1	O-Ring	-
46	T217085	1	Clamp	-
47	19M7784	1	Screw	M10 X 20

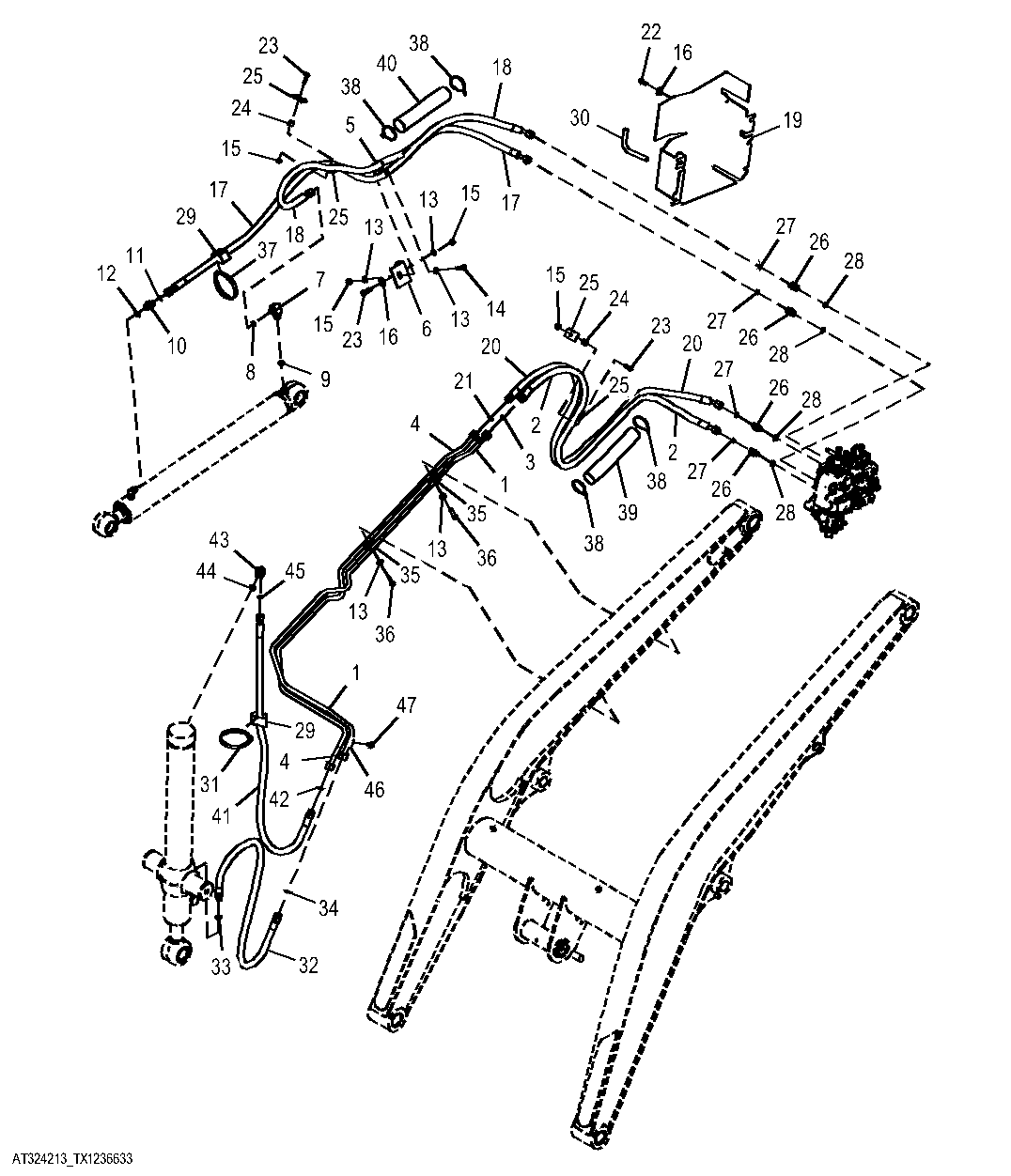

Loader Plumbing, 2-Function Right Side ( - 204987)
