Loader and Stabilizer Valve, Fourth and Fifth Function (Use For AT196630)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H785	1	Nut	5/16"
2	14M7274	2	Nut	M10
3	19M8166	2	Cap Screw	M10 X 110
4	24M7040	3	Washer	11 X 20 X 2 mm
5	24M7239	4	Washer	10.700 X 21 X 2.500 mm
6	14H774	1	Nut	3/8"
7	14H913	3	Nut	3/8"
8	AT169087	3	Ball Joint	-
9	T140328	3	Yoke	-
10	T164259	1	Rod	-
11	T185710	1	Boot	-
12	AT196630	1	Control Valve	Fourth Function Use Until Exhausted Components On Separate Page, NLA, ORDER AT426611 ALSO ORDER RE154027, R111292, R26448, AT319092, T77857, AND AT328992
12	AT426611	1	Control Valve	Fourth Function Components On Separate Page, ALSO ORDER RE154027, R111292, R26448, AT319092, T77857, AND AT328992
12	AT196632	1	Control Valve	Fifth Function Loader Control Valve Components On Separate Page
13	14H774	2	Nut	3/8"
17	T185710	3	Boot	-
18	T188976	2	Rod	-
19	AT199656	2	Bellcrank	-
20	M1036T	1	Screw	-
21	M68954	2	Lock Nut	-
22	R11151	2	Lock Nut	-
23	R46528	2	Spring Locking Pin	-
24	T183617	3	Pin Fastener	ORDER R65563 AND T202956
24	R65563	1	Pin Fastener	-
24	T202956	1	Retainer	-
25	T190296	3	Spacer	-
26	T190300	1	Stud	-
27	T223966	1	Label	-
28	RE154027	1	Adapter Fitting	Not Illustrated Components On Separate Page
29	R111292	1	Disk	Not Illustrated Components On Separate Page
30	R26448	1	O-Ring	Not Illustrated Components On Separate Page
31	AT319092	1	Check Valve	Not Illustrated Components On Separate Page
32	T77857	1	O-Ring	Not Illustrated Components On Separate Page
33	AT328992	1	Flow Control Hyd. Valve	Not Illustrated Components On Separate Page

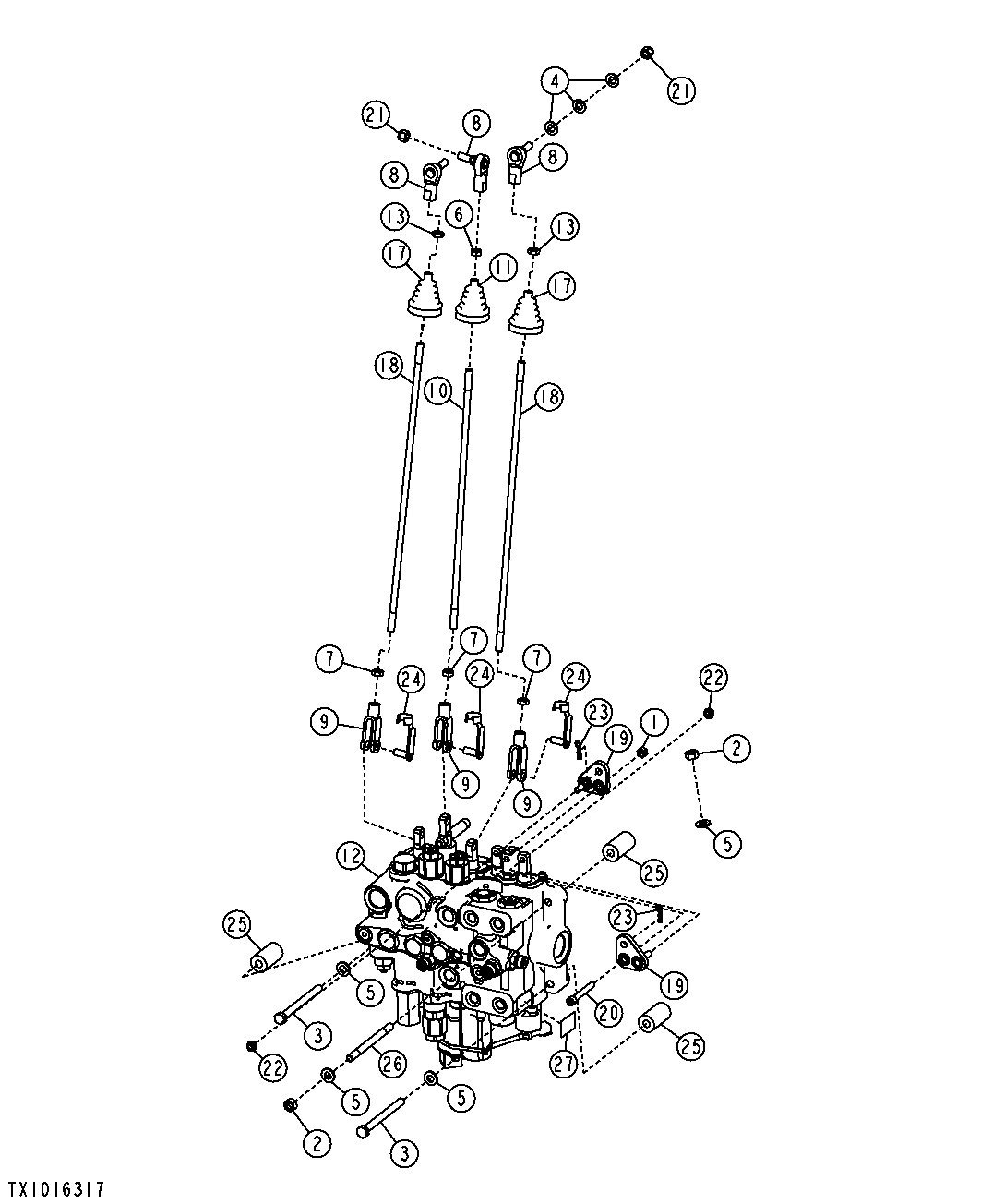

Loader and Stabilizer Valve, Fourth and Fifth Function (Use For AT196630)
