Hydraulic Loader Coupler Kit (Engine 4045TT095)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT329076	1	Control	NLA
2	T190979	1	Half Clamp	-
3	24M7239	7	Washer	10.700 X 21 X 2.500 mm
4	R46919	3	Half Clamp	-
5	AT312547	1	Solenoid Hydraulic Valve	Components On Seperate Page
6	19M7638	2	Cap Screw	M10 X 130
7	38H1160	1	Adapter Fitting	-
8	T77613	1	O-Ring	-
9	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
10	AT308506	1	Hydraulic Hose	17.4752" X 1993 mm (78-1/2") X 13/16", Fabricate
11	38H1212	1	Adapter Fitting	-
12	T77613	1	O-Ring	-
13	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
14	T148409	2	Nut	M10
15	AT311651	1	Hydraulic Hose	17.4752" X 2044 mm (80-1/2") X 13/16", Fabricate
16	28H3381	1	Spacer	0.493" X 0.675" X 5/8"
17	19M7550	1	Cap Screw	M10 X 35
18	14M7274	1	Nut	M10
19	T185089	1	Sleeve	-
20	R44302	6	Tie Band	-
21	-	1	Part 21	MF T78606 254 mm
22	19M7742	2	Cap Screw	M10 X 65
23	28H1697	1	Spacer	0.493" X 0.675" X 3/4"
24	28H1522	1	Spacer	0.493" X 0.675" X 11/16"
25	AT310457	1	Hydraulic Hose	Fabricate
26	-	1	Part 26	MF T78606 254 mm
27	AT321189	1	Oil Line	-
28	AT321190	1	Oil Line	-
29	T217085	3	Clamp	-
30	19M8324	3	Cap Screw	M10 X 16
31	AT309742	1	Hydraulic Hose	Fabricate
32	62H1053	2	Adapter Fitting	-
33	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
34	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
35	AT309743	1	Hydraulic Hose	Fabricate
36	AT329136	1	Wiring Harness	-
37	T209212	1	Label	-
38	AT311598	1	Indicator Lamp	-
39	AT225952	1	Switch	-
40	AT308200	1	Hitch	NLA, ORDER AT434453
40	AT434453	1	Quick Coupler	CA Components On Seperate Page
41	AT309934	1	Hydraulic Hose	-
42	AT309986	1	Hydraulic Hose	1" X 1260 mm (49-1/2") X 1", Fabricate
43	AT312876	1	Hyd. Quick-Connect Coupler	-
44	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
45	KV11305	1	Hyd. Quick-Connect Coupler	-
46	T80306	1	Nut	25.400 mm (1")
47	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
48	T188880	1	Cap	-
49	T188879	1	Cap	-
50	AT339270	1	Hydraulic Hose	Fabricate
51	38H1016	1	Tee Fitting	-
52	T77613	2	O-Ring	-
53	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
54	RE60701	1	Diagnostic Coupling	-
55	R77175	1	Cover	-
56	T217077	1	Bracket	-
57	AT308237	1	Relay Module	-
58	AE44436	1	Horn	Modify Wiring As Required
59	21M7247	1	Screw	M6 X 35
60	24M7139	1	Washer	6.400 X 18 X 1.600 mm
61	14M7303	1	Flange Nut	M6
62	R44302	1	Tie Band	-
63	AT329137	1	Wiring Harness	-

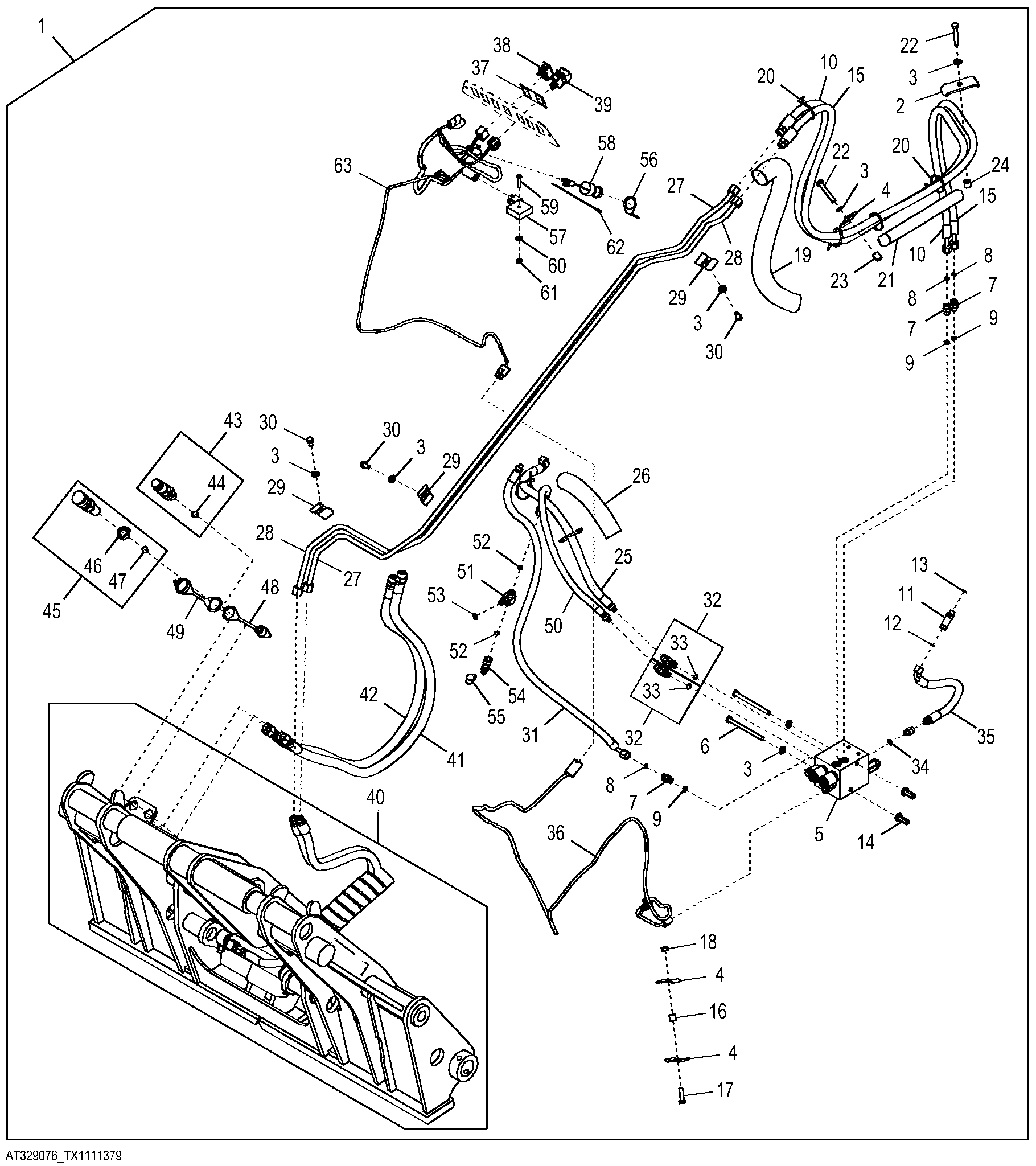

Hydraulic Loader Coupler Kit (Engine 4045TT095)
