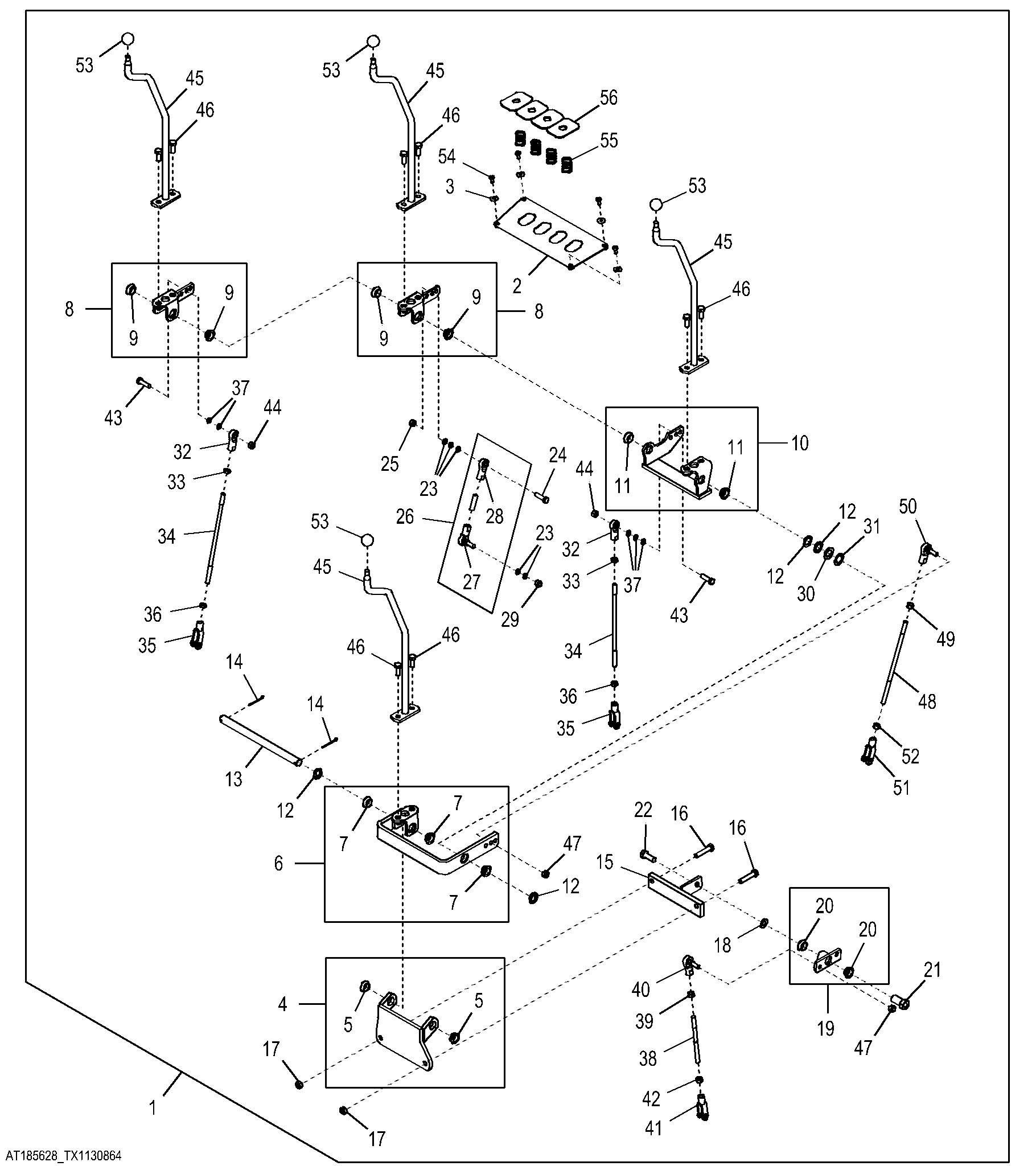

Ford Four Lever Controls, Standard and Extendable Dipperstick

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT189270	1	Cover	Required For K-Series Not Illustrated
1	AT185628	1	Lever Kit	Required For K-Series Whole Goods, ALSO ORDER AT189270
2	AT196419	1	Cover	-
3	T134530	4	Washer	6.756 X 19.050 X 1.524 mm (17/64" X 3/4" X 0.060")
4	AT194686	1	Support	-
5	T125808	2	Bushing	-
6	AT195877	1	Base	-
7	T125808	3	Bushing	-
8	AT150762	2	Base	-
9	T125808	2	Bushing	-
10	AT150763	1	Base	-
11	T125808	2	Bushing	-
12	24H1746	4	Washer	25/32" X 1-1/8" X 0.120"
13	T188268	1	Pin Fastener	-
14	11M7087	2	Cotter Pin	4 X 40 mm
15	AT196839	1	Support	-
16	19M8600	2	Cap Screw	M10 X 50
17	14M7274	2	Nut	M10
18	24M7047	1	Washer	13 X 24 X 2.500 mm
19	AT158197	1	Bellcrank	-
20	T125808	2	Bushing	-
21	T141126	1	Spacer	-
22	19H3029	1	Cap Screw	1/2" X 1-1/4"
23	M359T	5	Washer	-
24	19H3239	1	Cap Screw	3/8" X 1-1/4"
25	H129201	1	Lock Nut	-
26	AT158198	1	Link	-
27	AT169087	1	Ball Joint	-
28	AE37072	1	Link End	-
29	M68954	1	Lock Nut	-
30	24H1184	1	Washer	25/32" X 1-1/4" X 0.105"
31	24H1265	1	Washer	13/16" X 1-1/4" X 0.060"
32	AE37072	2	Link End	-
33	14H774	2	Nut	3/8"
34	T165788	2	Rod	-
35	T140328	2	Yoke	-
36	14H913	2	Nut	3/8"
37	M359T	5	Washer	-
38	T158812	1	Stud	-
39	14H1063	1	Nut	3/8"
40	AT169087	1	Ball Joint	-
41	T140328	1	Yoke	-
42	14H1063	1	Nut	3/8"
43	19H3239	2	Cap Screw	3/8" X 1-1/4"
44	H129201	2	Lock Nut	-
45	AT169512	4	Lever	-
46	19M7402	8	Cap Screw	M10 X 25
47	M68954	2	Lock Nut	-
48	T158810	1	Rod	-
49	14H788	1	Nut	3/8"
50	AT169087	1	Ball Joint	-
51	T140328	1	Yoke	-
52	14H1063	1	Nut	3/8"
53	T35233	4	Grip	-
54	T133674	4	Self-Locking Screw	-
55	T165591	4	Spring	-
56	T183149	4	Cover	-

Ford Four Lever Controls, Standard and Extendable Dipperstick

Нет текстового описания
