Fluid Sampling Ports (Engine 4045HT054, 4045HL287, 4045HL288)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT375407	1	Diagnostic Coupling	-
2	T238489	1	Bracket	-
3	T238490	1	Bracket	-
4	AT322359	1	Adapter Fitting	-
5	51M7045	1	O-Ring	19.300 X 2.200 mm
6	AT327094	1	Fitting	-
7	T222521	1	Fitting	-
8	T77814	1	O-Ring	-
9	R26448	1	O-Ring	-
10	38H1009	1	Elbow Fitting	-
11	T77814	1	O-Ring	-
12	R26448	1	O-Ring	-
13	R71210	1	Adapter Fitting	-
14	38H1167	1	Adapter Fitting	-
15	T77814	1	O-Ring	-
16	R26286	1	O-Ring	-
17	24M7239	4	Washer	10.700 X 21 X 2.500 mm
18	19M7662	2	Cap Screw	M10 X 30
19	14M7274	2	Nut	M10
20	24M7145	8	Washer	15 X 24 X 2.500 mm
21	AT375359	1	Oil Line	Engine Oil
22	AT375360	1	Oil Line	Transmission Oil
23	AT375361	1	Hydraulic Hose	Transmission Oil
24	T77814	1	O-Ring	-
25	T217789	1	Label	-
26	T217792	1	Label	-
27	T217790	1	Label	-
28	T217791	1	Label	-
29	38H1093	1	Elbow Fitting	-
30	T77814	1	O-Ring	-
31	AT351191	1	Hydraulic Hose	Hydraulic Oil
32	AT349966	1	Hydraulic Hose	Engine Coolant
33	RE19797	2	Clamp	-
34	19M6614	1	Cap Screw	M6 X 12
35	38H1029	1	Tee Fitting	-
36	T77814	2	O-Ring	-
37	RE60700	1	Diagnostic Coupling	-
38	R77175	1	Cover	-
39	AT350248	4	Fitting	-
40	24M7238	2	Washer	8.700 X 17 X 2 mm
41	19M7881	2	Screw	M8 X 20
42	28H1522	1	Spacer	0.493" X 0.675" X 11/16"
43	T190979	1	Half Clamp	-
44	19M7742	1	Cap Screw	M10 X 65
45	38H1009	1	Elbow Fitting	-
46	T77814	1	O-Ring	-
47	R26448	1	O-Ring	-

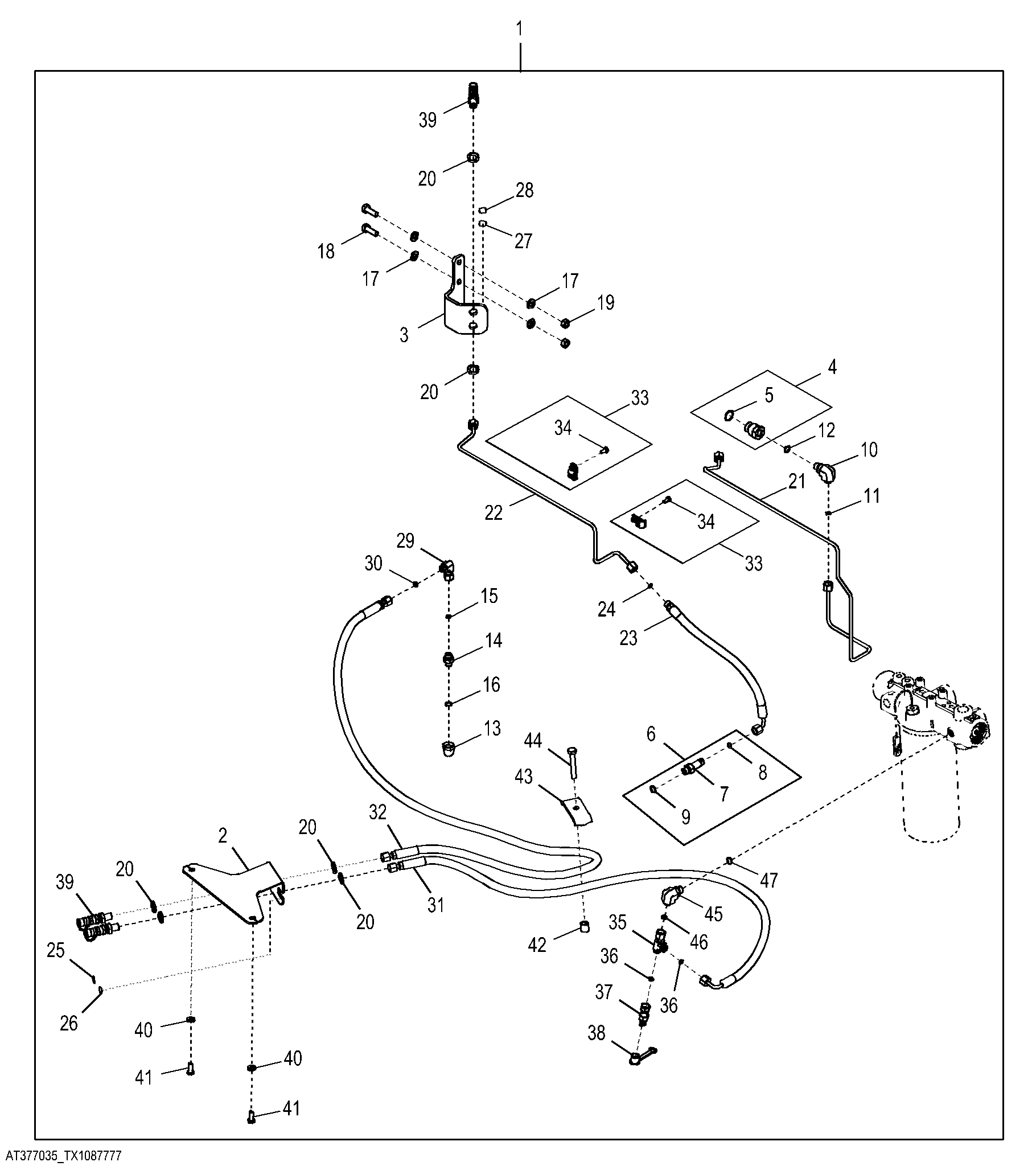

Fluid Sampling Ports (Engine 4045HT054, 4045HL287, 4045HL288)
