Extension and Bucket Cylinder Hydraulics (Extendable Dipperstick)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT327155	1	Hose Support	-
2	AT325075	1	Oil Line	Bucket Cylinder Rod End
3	AT325076	1	Oil Line	Bucket Cylinder Head End
4	AT325077	1	Oil Line	Head End Dipperstick Extension Cylinder
5	AT325078	1	Oil Line	Rod End Dipperstick Extension Cylinder
6	T160554	2	Clamp	-
7	24M7239	2	Washer	10.700 X 21 X 2.500 mm
8	14M7274	4	Nut	M10
9	14M7426	6	Lock Nut	M8
10	19M7550	2	Cap Screw	M10 X 35
11	38H1162	1	Adapter Fitting	-
12	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
13	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
14	38H1214	1	Adapter Fitting	-
15	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
16	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
17	38H1404	1	Elbow Fitting	-
18	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
19	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
20	T105773	1	Guide	SUB FOR T105774
21	T162004	8	Clamp	-
22	T162005	4	Strap	-
23	19M7185	8	Cap Screw	M8 X 60
24	T165889	4	Screw	-
25	AR21839	2	Clamp	-
26	C16054	1	Clamp	-
27	R46919	4	Half Clamp	-
28	28H3381	2	Spacer	0.493" X 0.675" X 5/8"
29	19M8637	2	Cap Screw	M10 X 40
30	AT174604	1	Hydraulic Hose	Bucket Cylinder Rod End
31	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
32	AT174605	1	Hydraulic Hose	Bucket Cylinder Head End
33	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
34	AT178413	1	Hydraulic Hose	Head End Dipperstick Extension Cylinder
35	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
36	AT178413	1	Hydraulic Hose	Rod End Dipperstick Extension Cylinder
37	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
38	AT179238	1	Hydraulic Hose	Head End Dipperstick Extension Cylinder
39	AT179238	1	Hydraulic Hose	Rod End Dipperstick Extension Cylinder
40	AT280340	1	Hydraulic Hose	Head End Dipperstick Extension Cylinder Fabricate
41	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
42	AT280340	1	Hydraulic Hose	Rod End Dipperstick Extension Cylinder Fabricate
43	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
44	AT280341	1	Hydraulic Hose	Bucket Cylinder Head End Fabricate
45	AT280341	1	Hydraulic Hose	Bucket Cylinder Rod End Fabricate

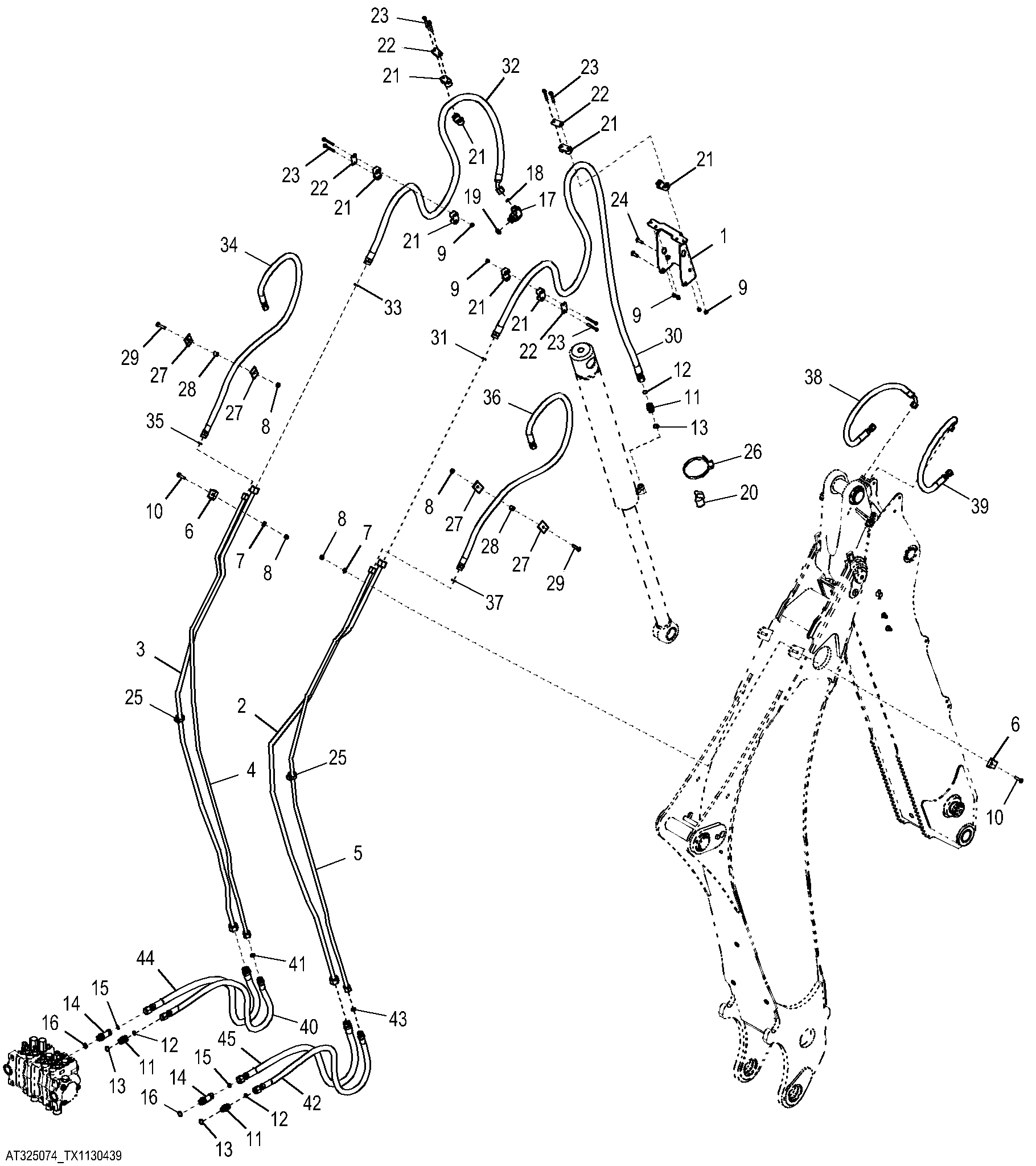

Extension and Bucket Cylinder Hydraulics (Extendable Dipperstick)
