Controlled Load Lowering Device Kit, Backhoe Boom Cylinder

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T161665	1	Label	Service Information
1	AT336392	1	Valve Kit	Whole Goods
1	T76938	1	O-Ring	-
1	R44302	3	Tie Band	-
1	M86863	1	Tee Fitting	-
1	38H1038	1	Tee Fitting	-
1	38H1414	1	Fitting	-
1	19M8456	1	Cap Screw	M8 X 100
1	AR21837	3	Clamp	-
2	AT337460	1	Oil Line	-
2	38H1355	2	Tube Nut	-
3	38H1162	1	Adapter Fitting	-
4	T77932	1	O-Ring	-
5	R26906	1	O-Ring	-
6	AT175177	1	Hyd Actuated Control Valve	Components On Separate Page
7	T228016	1	Plate	-
8	24M7239	4	Washer	10.700 X 21 X 2.500 mm
9	19H1648	2	Cap Screw	3/8" X 3/4"
10	38H1006	1	Elbow Fitting	-
11	R26906	1	O-Ring	-
12	T77932	1	O-Ring	-
13	38H1161	2	Adapter Fitting	-
14	T77857	2	O-Ring	-
15	R26375	2	O-Ring	-
16	38H1095	1	Elbow Fitting	-
17	T77857	1	O-Ring	-
18	38H1163	1	Adapter Fitting	-
19	T77858	1	O-Ring	-
20	U12547	1	O-Ring	-
21	38H1007	1	Elbow Fitting	-
22	U12547	1	O-Ring	-
23	T77858	1	O-Ring	-
24	AT84191	2	Hose Clamp	-
25	AT337461	1	Oil Line	-
26	T77858	2	O-Ring	-
27	38H1482	1	Reducer	-
28	AT180208	1	Hydraulic Hose	-
29	AT180859	1	Hydraulic Hose	-
30	AT180212	1	Hydraulic Hose	-
31	AT180860	1	Hydraulic Hose	-
32	T160376	3	Clamp	-
33	19M7572	1	Cap Screw	M10 X 45
34	03M7192	2	Bolt	M10 X 30
35	14M7274	2	Nut	M10
36	38H1418	1	Fitting	-
37	38H1149	1	Fitting Plug	-
38	T77858	1	O-Ring	-
39	38H1003	1	Elbow Fitting	-
40	R28782	1	O-Ring	-
41	T77814	1	O-Ring	-
42	AT180861	1	Hydraulic Hose	-
43	AT198366	1	Hydraulic Hose	-
44	38H1194	1	Adapter Fitting	-
45	T77858	1	O-Ring	-
46	R29936	1	O-Ring	-
47	AT332135	1	Hydraulic Hose	Pilot Controls Fabricate
48	38H1205	1	Tee Fitting	-
49	T77613	3	O-Ring	-
50	AT332157	1	Hydraulic Hose	Manual Controls Fabricate
51	38H1480	1	Reducer	-
52	T77814	1	O-Ring	-
53	38H1415	1	Fitting	-
54	38H1031	1	Tee Fitting	-
55	T77857	2	O-Ring	-

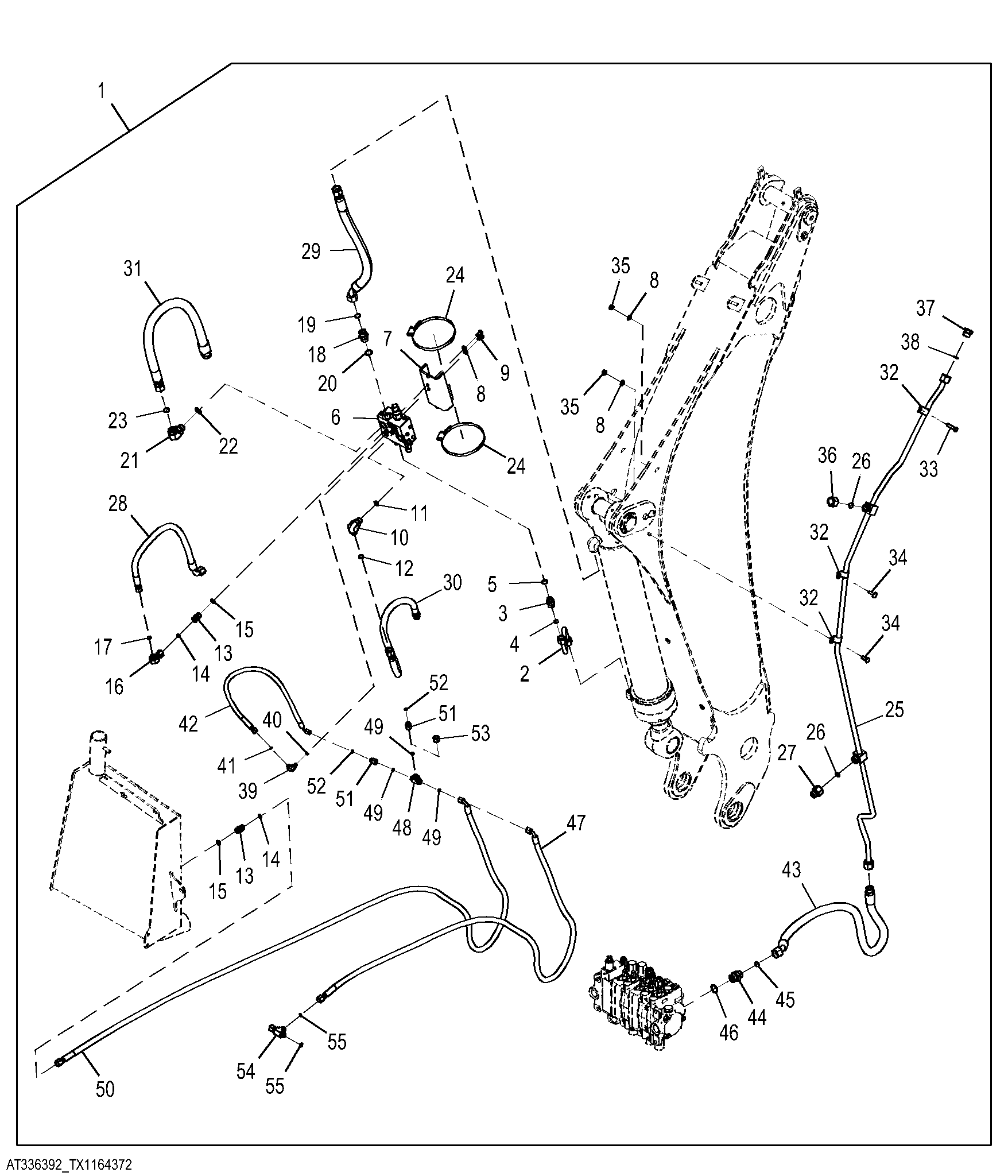

Controlled Load Lowering Device Kit, Backhoe Boom Cylinder
