Bucket, Dipperstick Extension, and Auxiliary Equipment Hydraulics, Extendable Dipperstick

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T160376	8	Clamp	-
2	03M7192	4	Bolt	M10 X 30
3	24M7239	22	Washer	10.700 X 21 X 2.500 mm
4	14M7274	14	Nut	M10
5	38H1163	1	Adapter Fitting	-
6	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
7	U12547	3	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
8	38H1194	1	Adapter Fitting	-
9	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
10	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
11	19M7572	2	Cap Screw	M10 X 45
12	T162004	16	Clamp	-
13	19M8456	8	Cap Screw	M8 X 100
14	T205637	1	Bracket	-
15	T163702	2	Reducer	-
16	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
17	T205636	1	Bracket	-
18	19M7662	6	Cap Screw	M10 X 30
19	T78707	2	Nut	-
20	R27175	2	Drain Plug	INCLUDES U12547
21	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
22	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
22	AT198366	1	Hydraulic Hose	Auxiliary
23	AT198366	1	Hydraulic Hose	Auxiliary
24	T161365	1	Sleeve	-
25	T161365	1	Sleeve	-
26	H77698	4	Tie Band	-
27	AT310321	1	Hydraulic Hose	Auxiliary
28	AT310321	1	Hydraulic Hose	Auxiliary
29	T102934	2	Clamp	-
30	AT361744	1	Oil Line	Auxiliary
31	AT361743	1	Hydraulic Equipment	Auxiliary
32	AT327155	1	Hose Support	-
33	AT325075	1	Oil Line	Bucket Rod End
34	AT325076	1	Oil Line	Bucket Head End
35	AT325077	1	Oil Line	Extension Cylinder Head End
36	AT325078	1	Oil Line	Extension Cylinder Rod End
37	T160554	2	Clamp	-
38	14M7426	6	Lock Nut	M8
39	38H1162	1	Adapter Fitting	-
40	T77932	5	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
41	R26906	2	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
42	38H1214	2	Adapter Fitting	-
43	T77932	5	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
44	R26906	2	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
45	38H1404	1	Elbow Fitting	-
46	T77932	5	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
47	U12547	3	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
48	T105773	1	Guide	-
49	T162005	4	Strap	-
50	T165889	4	Screw	-
51	T189065	4	Isolator	-
52	AR21839	2	Clamp	-
53	C16054	1	Clamp	-
54	R46919	4	Half Clamp	-
55	28H3381	2	Spacer	0.493" X 0.675" X 5/8"
56	19M8637	2	Cap Screw	M10 X 40
57	AT174604	1	Hydraulic Hose	Rod End
58	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
59	AT174605	1	Hydraulic Hose	Head End
60	T77858	8	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
61	AT178413	1	Hydraulic Hose	Extension Cylinder Head End
62	T77932	5	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
63	AT178413	1	Hydraulic Hose	Rod End
64	T77932	5	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
65	AT179238	1	Hydraulic Hose	13/16" X 459 mm (18") X 13/16", Head End
66	AT179238	1	Hydraulic Hose	13/16" X 459 mm (18") X 13/16", Rod End
67	AT280340	1	Hydraulic Hose	Extension Cylinder Head End Fabricate
68	T77932	5	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
69	AT280340	1	Hydraulic Hose	Extension Cylinder Rod End Fabricate
70	T77932	5	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
71	AT280341	1	Hydraulic Hose	Bucket Head End Fabricate
71	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
72	AT280341	1	Hydraulic Hose	Bucket Rod End Fabricate

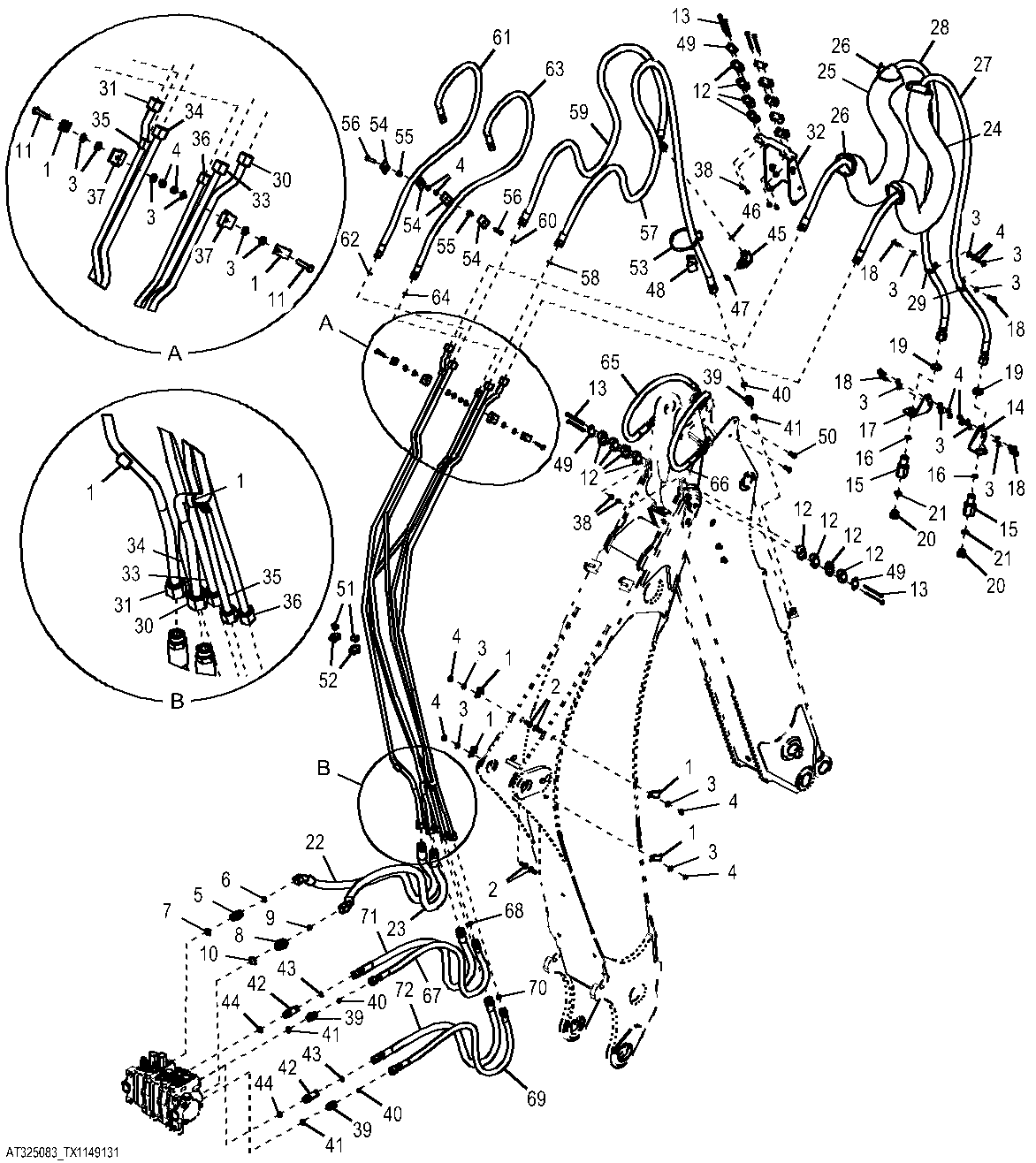

Bucket, Dipperstick Extension, and Auxiliary Equipment Hydraulics, Extendable Dipperstick
