Открытый узел

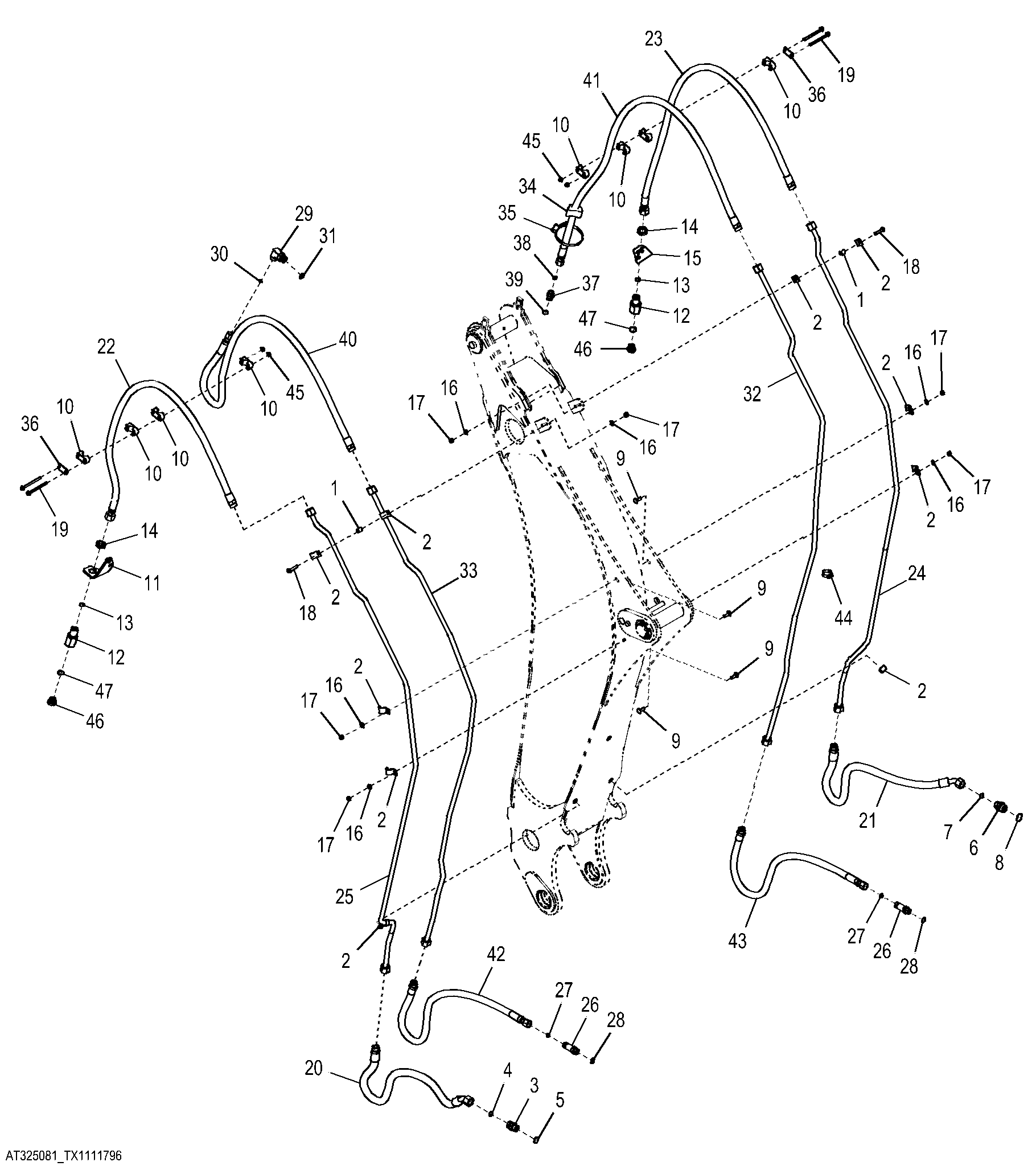

Bucket and Auxiliary Equipment Hydraulics, Standard Dipperstick

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	28H3383	2	Bushing	0.493" X 0.675" X 3/4"
2	T160376	10	Clamp	-
3	38H1163	1	Adapter Fitting	-
4	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
5	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
6	38H1194	1	Adapter Fitting	-
7	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
8	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
9	03M7192	4	Bolt	M10 X 30
10	T162004	8	Clamp	-
11	T205636	1	Bracket	-
12	T163702	2	Reducer	-
13	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
14	T78707	2	Nut	-
15	T205637	1	Bracket	-
16	24M7239	6	Washer	10.700 X 21 X 2.500 mm
17	14M7274	6	Nut	M10
18	19M7572	2	Cap Screw	M10 X 45
19	19M7873	4	Screw	M8 X 110
20	AT198366	1	Hydraulic Hose	-
21	AT198366	1	Hydraulic Hose	-
21	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
22	AT310292	1	Hydraulic Hose	-
22	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
23	AT310292	1	Hydraulic Hose	-
23	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
24	AT361744	1	Oil Line	-
25	AT361743	1	Hydraulic Equipment	-
26	38H1214	2	Adapter Fitting	-
27	T77932	2	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
28	R26906	2	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
29	38H1404	1	Elbow Fitting	-
30	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
31	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
32	AT325075	1	Oil Line	Bucket Cylinder Rod End
33	AT325076	1	Oil Line	Bucket Cylinder Head End
34	T105773	1	Guide	-
35	C16054	1	Clamp	-
36	T162005	2	Strap	-
37	38H1162	1	Adapter Fitting	-
38	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
39	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
40	AT174907	1	Hydraulic Hose	Bucket Cylinder Head End
40	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
41	AT174908	1	Hydraulic Hose	Bucket Cylinder Rod End
41	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
42	AT280341	1	Hydraulic Hose	Bucket Cylinder Head End Fabricate
43	AT280341	1	Hydraulic Hose	Bucket Cylinder Rod End Fabricate
43	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
44	AR21839	1	Clamp	-
45	14M7298	4	Flange Nut	M8
46	R27175	2	Drain Plug	INCLUDES U12547
47	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")

Bucket and Auxiliary Equipment Hydraulics, Standard Dipperstick

Нет текстового описания
