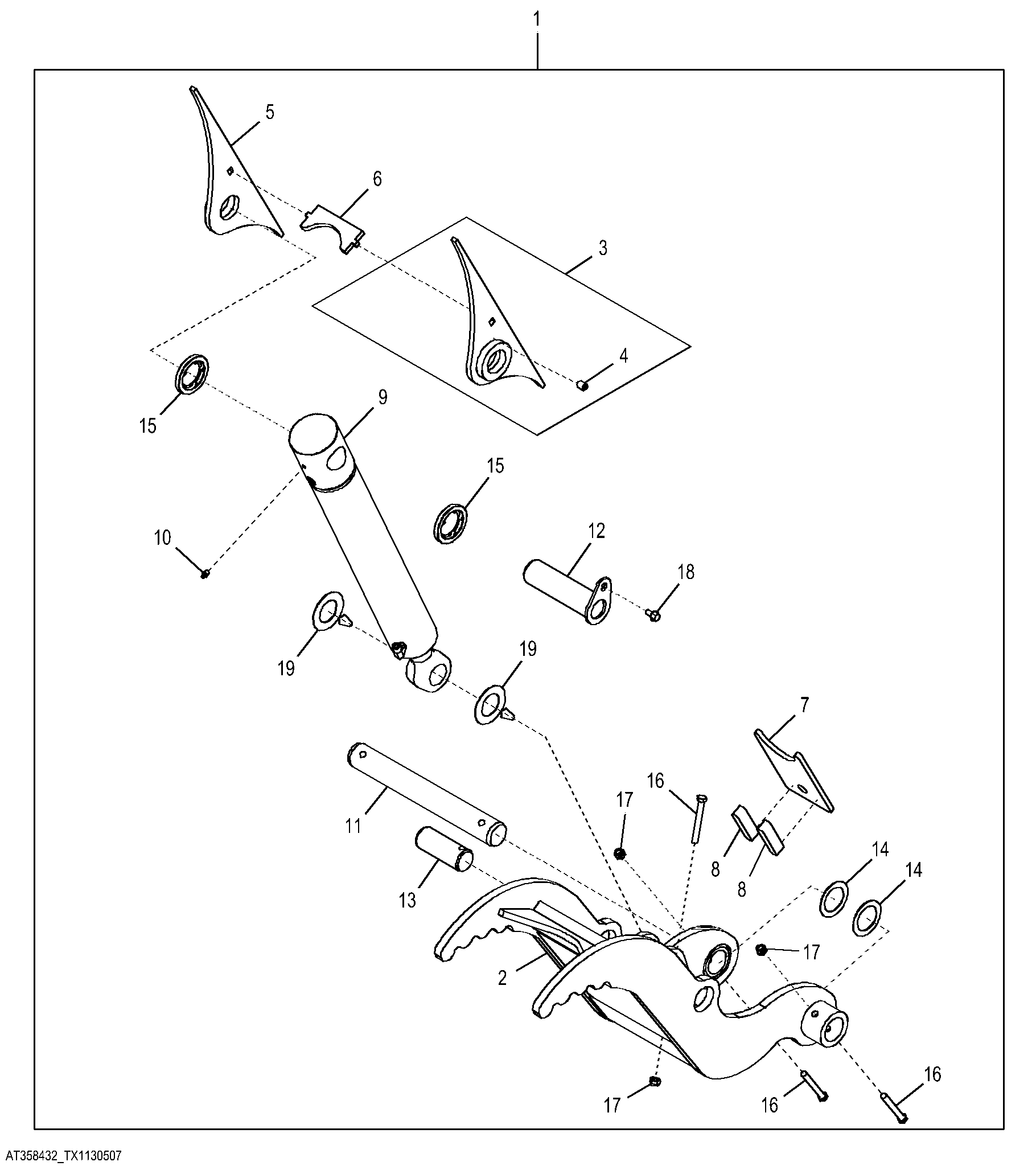

Backhoe Thumb Kit, 45.72 cm (18 in.) and 76.20 cm (30 in.) Buckets

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT456088	1	Grapple	Components On Separate Page Whole Goods
1	AT358432	1	Grapple	Two Tine Do Not Use With 30 in. Buckets That Have TK Teeth, NLA, ORDER AT456088
2	AT356863	1	Clamp	NLA, ORDER AT456088
3	AT356865	2	Bracket	Standard Dipperstick, NLA, ORDER AT436605 AND AT436604
3	AT356866	2	Bracket	Extendable Dipperstick
3	AT436604	1	Bracket	Right Hand Standard Dipperstick
4	T238886	1	Bushing	-
5	AT436605	1	Bracket	Left Hand Standard Dipperstick
6	T244678	1	Plate	Standard Dipperstick
6	T244683	1	Plate	Extendable Dipperstick
7	T244679	1	Plate	-
8	T244680	2	Plate	Standard Dipperstick
9	AHC14415	1	Hydraulic Cylinder	Components Listed On Separate Page, SUB FOR AH233825 AND AHC11115
9	T77613	1	O-Ring	Not Illustrated
9	51M7042	1	O-Ring	13.300 X 2.200 mm, Not Illustrated
9	38H5035	1	Elbow Fitting	Not Illustrated
9	AHC11115	1	Hydraulic Cylinder	Components Listed On Separate Page, NLA, ORDER AHC14415 ALSO ORDER 38H5035, 51M7042, AND T77613
9	AH233825	1	Hydraulic Cylinder	Components Listed On Separate Page, NLA, ORDER AHC14415 ALSO ORDER 38H5035, 51M7042, AND T77613
10	T162396	1	Lubrication Fitting	-
11	T244674	1	Pin Fastener	-
12	AT356868	1	Pin Fastener	-
13	T244675	1	Pin Fastener	-
14	24H1679	2	Washer	2-17/64" X 3-1/4" X 0.060"
15	T160303	2	Spacer	11.00 mm, Wide Standard Dipperstick
15	T160300	2	Wear Plate	5.50 mm, Wide Extendable Dipperstick
16	19M7949	3	Cap Screw	M12 X 100
17	14M7319	3	Lock Nut	M12
18	19M7784	1	Screw	M10 X 20
19	T223740	2	Shim	-

Backhoe Thumb Kit, 45.72 cm (18 in.) and 76.20 cm (30 in.) Buckets
