Auxiliary Equipment Hydraulic Kit, Extendable Dipperstick

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT325084	1	Hose Kit	Whole Goods
2	T160376	8	Clamp	-
3	03M7192	4	Bolt	M10 X 30
4	24M7239	20	Washer	10.700 X 21 X 2.500 mm
5	14M7274	10	Nut	M10
6	38H1163	2	Adapter Fitting	-
7	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
8	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
9	38H1194	1	Adapter Fitting	-
10	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
11	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
12	19M7572	2	Cap Screw	M10 X 45
13	T162004	8	Clamp	-
14	19M8456	8	Cap Screw	M8 X 100
15	T205637	1	Bracket	-
16	T163702	2	Reducer	-
17	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
18	T205636	1	Bracket	-
19	19M7662	6	Cap Screw	M10 X 30
20	T78707	2	Nut	-
21	64H1007	2	Drain Plug	INCLUDES U12547
22	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
23	T162005	4	Strap	-
24	AT198366	1	Hydraulic Hose	To Auxiliary Control Valve, INCLUDES T77858
24	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
25	AT198366	1	Hydraulic Hose	To Auxiliary Control Valve, INCLUDES T77858
25	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
26	T161365	1	Sleeve	-
27	T161365	1	Sleeve	-
28	H77698	4	Tie Band	-
29	AT310321	1	Hydraulic Hose	Auxiliary Extendable, INCLUDES T77858
29	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
30	AT310321	1	Hydraulic Hose	Auxiliary Extendable, INCLUDES T77858
30	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
31	T102934	2	Clamp	-
32	AT361744	1	Oil Line	To Hydraulic Auxiliary Oil Line
33	AT361743	1	Hydraulic Equipment	To Hydraulic Auxiliary Oil Line

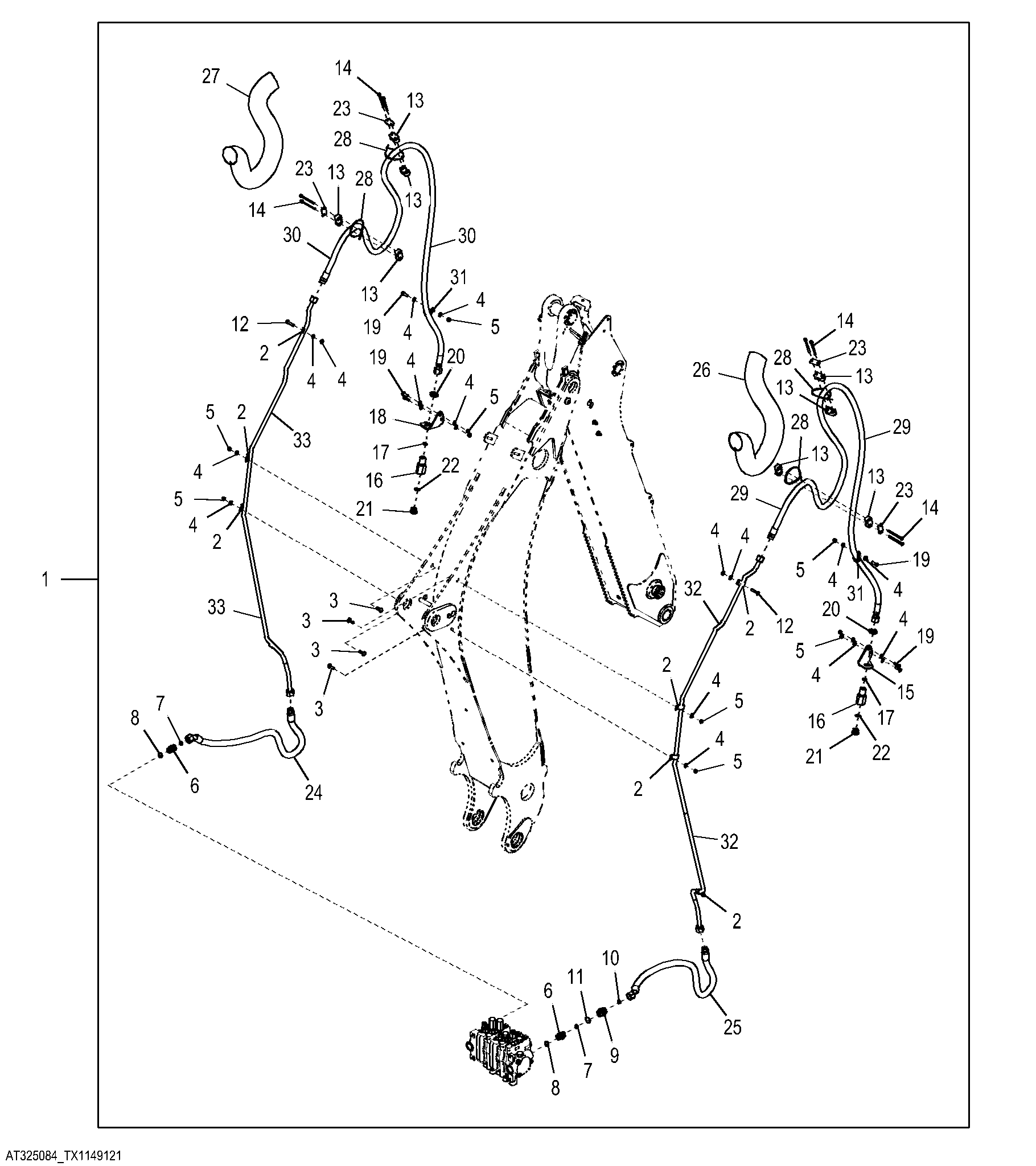

Auxiliary Equipment Hydraulic Kit, Extendable Dipperstick
