Air Conditioning Kit (Engine 4045HT054, 4045HL287, 4045HL288)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT334966	1	Refrigerant Hose	-
2	H77698	1	Tie Band	-
3	R73975	1	Bracket	-
5	R10093	4	O-Ring	-
6	T143169	1	O-Ring	-
7	R33259	1	O-Ring	-
8	AT190658	1	AC Compressor WRG Harness	-
9	19M7513	1	Cap Screw	M8 X 30, SUB FOR 19M7881
10	24M7238	7	Washer	8.700 X 17 X 2 mm
11	T78787	1	Clamp	-
12	14M7273	6	Nut	M8
14	AH89557	1	Clip	-
15	21M7283	1	Screw	M5 X 8
16	12H316	1	Lock Washer	0.216"
17	19M7932	4	Cap Screw	M8 X 16
18	19M8539	4	Cap Screw	M8 X 90
21	T226626	1	Bracket	-
22	AH96317	1	Clip	-
23	T223616	1	Bracket	-
24	34M7189	2	Spring Pin	11 X 8 mm
25	TY6764	1	Compressor	NLA, ORDER SE501462
25	SE501462	1	Compressor Reman	REMAN FOR TY6764
27	AT348349	1	Refrigerant Hose	-
28	R128661	1	Pulley	High Ambient
28	R128662	1	Pulley	STD
30	R113050	2	O-Ring	Rubber
32	T158424	8	Washer	-
33	T238043	4	Bushing	-
34	24M7101	4	Washer	11 X 34 X 3 mm
35	TY22472	2	Clamp	-
36	19M8081	2	Cap Screw	M10 X 80
37	AT348322	1	Vapor Condenser	-
38	19M7808	1	Screw	M10 X 65
39	R502079	1	Sleeve	-
40	RE505264	1	Pulley	-
41	R500320	1	Spacer	-
42	AT323646	1	Refrigerant Hose	-
43	R115350	1	Grommet	-
44	RE291796	1	Air Dryer	SUB FOR RE214440
45	19M7898	2	Screw	M10 X 130
46	19M7806	1	Screw	M10 X 50
47	AT323647	1	Refrigerant Hose	-
48	R36235	2	Grommet	-
49	T242165	1	Spacer	-
50	19M7785	1	Screw	M10 X 25
51	R136508	1	Screw	M10 X 95, SUB FOR 19M7812
52	T216548	1	Bracket	-
54	T240081	1	V-Belt	High Ambient, ORDER T428836
54	T428842	1	V-Belt	LGTH = 2380 mm, STD, SUB FOR T225495
54	T428839	1	V-Belt	LGTH = 2370 mm, STD, SUB FOR T227401
54	T428836	1	V-Belt	LGTH = 2355 mm
55	AT334873	1	Air Conditioner Kit	Includes Evaporator and Ducting Components On Separate Page Whole Goods

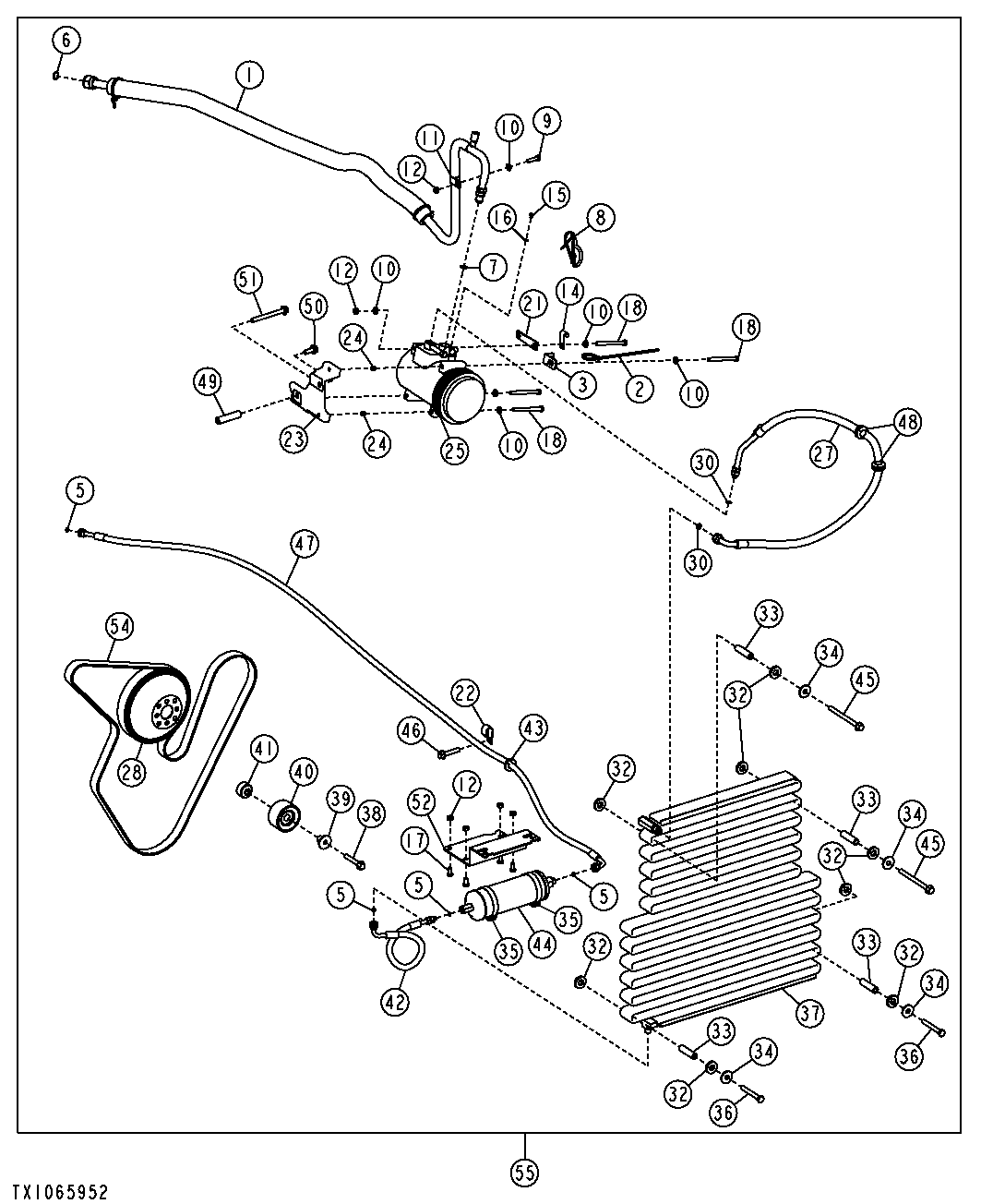

Air Conditioning Kit (Engine 4045HT054, 4045HL287, 4045HL288)
