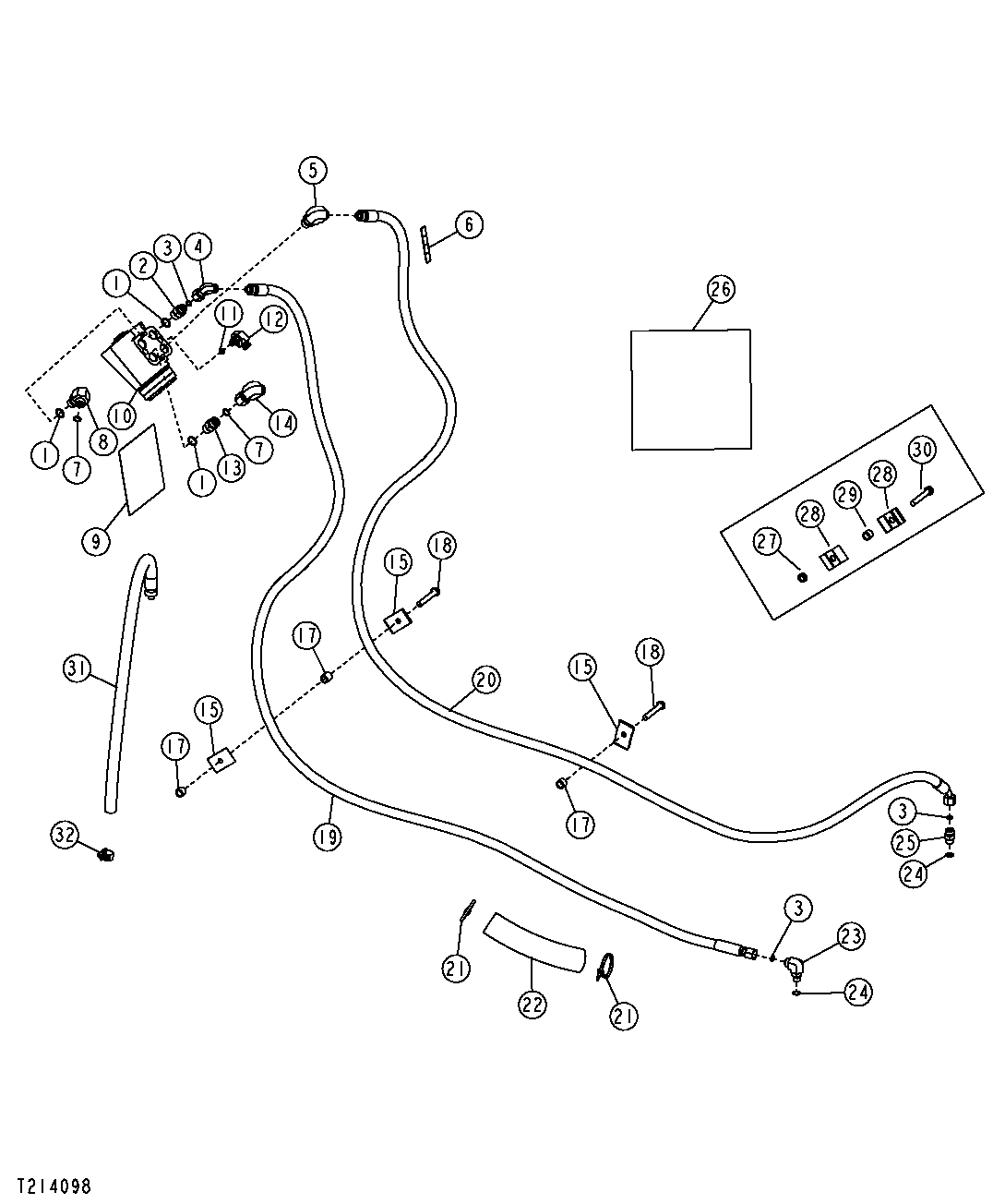

Steering Hydraulics (w/ MFWD) (911132 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26375	4	O-Ring	-
2	38H1171	1	Adapter Fitting	-
3	T77613	3	O-Ring	-
4	62H1021	1	Adapter Fitting	-06, SUB FOR AT195201
5	62H1019	1	Adapter Fitting	(-06), SUB FOR AT195202
6	T184320	1	Label	-
7	T77857	2	O-Ring	-
8	38H1005	1	Elbow Fitting	-
9	T191425	1	Label	-
10	19M7938	4	Cap Screw	M10 X 20
10	AT433078	1	Manual Hydraulic Valve	Component On Separate Page
10	AT309882	1	Manual Hydraulic Valve	Convenience Assembly, SUB FOR AT192243 NLA; ORDER AT433078 AND (4) 19M7938
11	R28782	1	O-Ring	-
12	62H1018	1	Adapter Fitting	-06, SUB FOR AT188010
13	38H1161	1	Adapter Fitting	-
14	62H1022	1	Adapter Fitting	-08, SUB FOR AT195203
15	R46919	4	Half Clamp	-
15	R46919	3	Half Clamp	-
16	28H3394	3	Bushing	0.493" X 0.675" X 1/2"
17	28H3421	3	Spacer	0.493" X 0.675" X 7/16"
17	28H3383	1	Bushing	0.493" X 0.675" X 3/4"
18	19M7742	2	Cap Screw	M10 X 65
18	19M8600	2	Cap Screw	M10 X 50
19	AT188383	1	Hydraulic Hose	(ALSO ORDER 62H1042 AND T77613)
19	62H1042	1	Adapter Fitting	STC
20	AT188382	1	Hydraulic Hose	(ALSO ORDER 62H1042 AND T77613)
20	62H1042	1	Adapter Fitting	STC
21	R44302	2	Tie Band	-
22	-	1	Part 29	254 mm, (MAKE FROMT78606) (CTL)
23	38H1004	1	Elbow Fitting	-
24	R26448	2	O-Ring	-
25	38H1160	1	Adapter Fitting	-
26	AT193365	1	Seal Kit	STC Repair (-06)
26	AT193366	1	Seal Kit	STC Repair (-08)
27	14M7273	1	Nut	M8
28	R27491	2	Clamp	-
29	24M7106	2	Washer	10 X 18 X 2.500 mm
30	19M7881	1	Screw	M8 X 20
31	AT184900	1	Hydraulic Hose	(ALSO ORDER 62H1043 AND T77857)
32	AR21836	1	Clamp	-

Steering Hydraulics (w/ MFWD) (911132 - )
