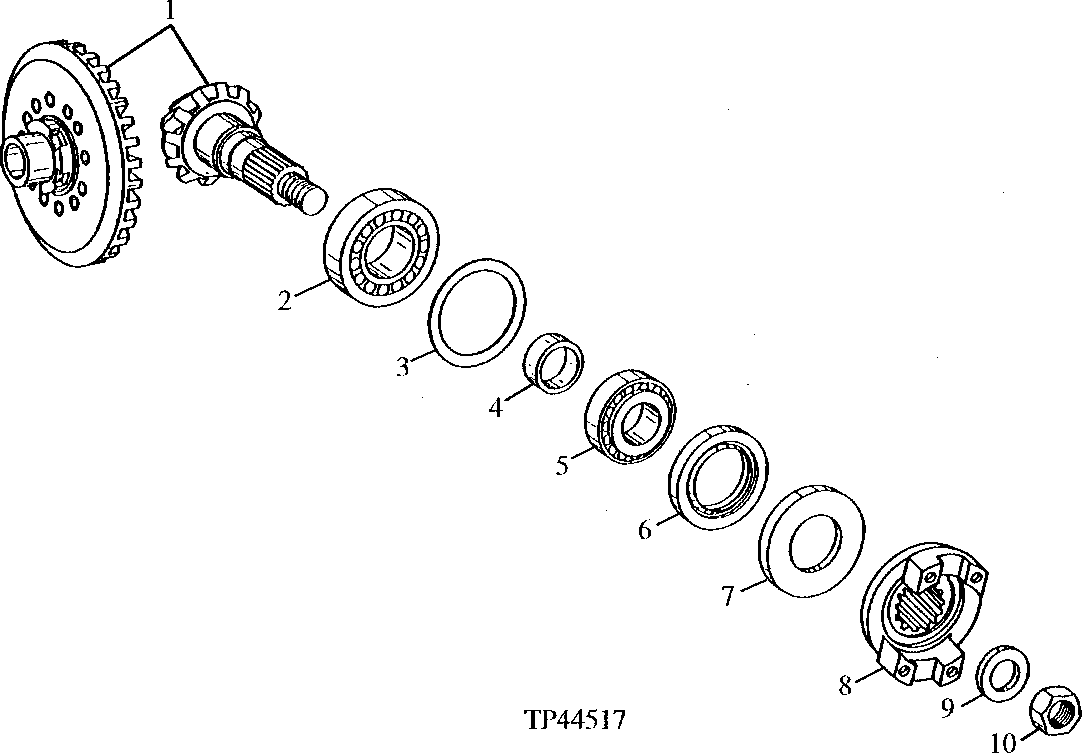

Spiral Bevel Input Pinion and Ring Gear, Front Differential

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT178002	1	Bevel Gear Drive	Front Axle
2	AL79794	1	Tapered Roller Bearing	-
3	L55606	1	Shim	-
3	L55610	1	Washer	72 X 88.600 X 0.850 mm (2.835" X 3.488" X 0.033")
3	L40982	1	Washer	72 X 88.600 X 1 mm (2.835" X 3.488" X 0.039")
3	L40985	1	Washer	72 X 88.600 X 1.150 mm (2.835" X 3.488" X 0.045")
3	L40988	1	Washer	72 X 88.600 X 1.300 mm (2.835" X 3.488" X 0.051")
3	L40991	1	Washer	72 X 88.600 X 1.450 mm (2.835" X 3.488" X 0.057")
3	L40994	1	Washer	72 X 88.600 X 1.600 mm (2.835" X 3.488" X 1/16")
4	T183512	1	Spacer	15.84 mm
4	T183510	1	Spacer	15.78 mm
4	T183513	1	Spacer	15.88 mm
4	T183514	1	Spacer	15.89 mm
4	T183515	1	Spacer	15.91 mm
4	L100080	1	Spacer	15.93 mm (0.6272 in.)
4	T183516	1	Spacer	15.94 mm
4	T183517	1	Spacer	15.97 mm
4	L100066	1	Spacer	16.00 mm (0.6299 in.)
4	L100077	1	Spacer	16.06 mm (0.6323 in.)
4	L100074	1	Spacer	16.23 mm (0.6390 in.)
4	L100069	1	Spacer	16.30 mm (0.6417 in.)
4	L100083	1	Spacer	15.76 mm (0.6205 in.)
4	L100057	1	Spacer	15.10 mm (0.5945 in.)
4	L100092	1	Spacer	15.33 mm (0.6035 in.)
4	L100060	1	Spacer	15.40 mm (0.6063 in.)
4	L100089	1	Spacer	15.46 mm (0.6089 in.)
4	L100096	1	Spacer	15.48 mm (0.6094 in.)
4	L100086	1	Spacer	15.63 mm (0.6154 in.)
4	T183508	1	Spacer	15.69 mm
4	L100063	1	Spacer	15.70 mm (0.6181 in.)
4	T183509	1	Spacer	15.72 mm
4	T183511	1	Spacer	15.81 mm
5	AL111096	1	Bearing	-
6	AL79797	1	Seal	(SUB FOR AT113921)
7	L100230	1	Guard	-
8	T151072	1	Flange	-
9	L35714	1	Washer	-
10	14M7498	1	Lock Nut	M24

Spiral Bevel Input Pinion and Ring Gear, Front Differential

Нет текстового описания
