Открытый узел

Service Brake Assembly

Service Brake Assembly

Service Brake Assembly

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

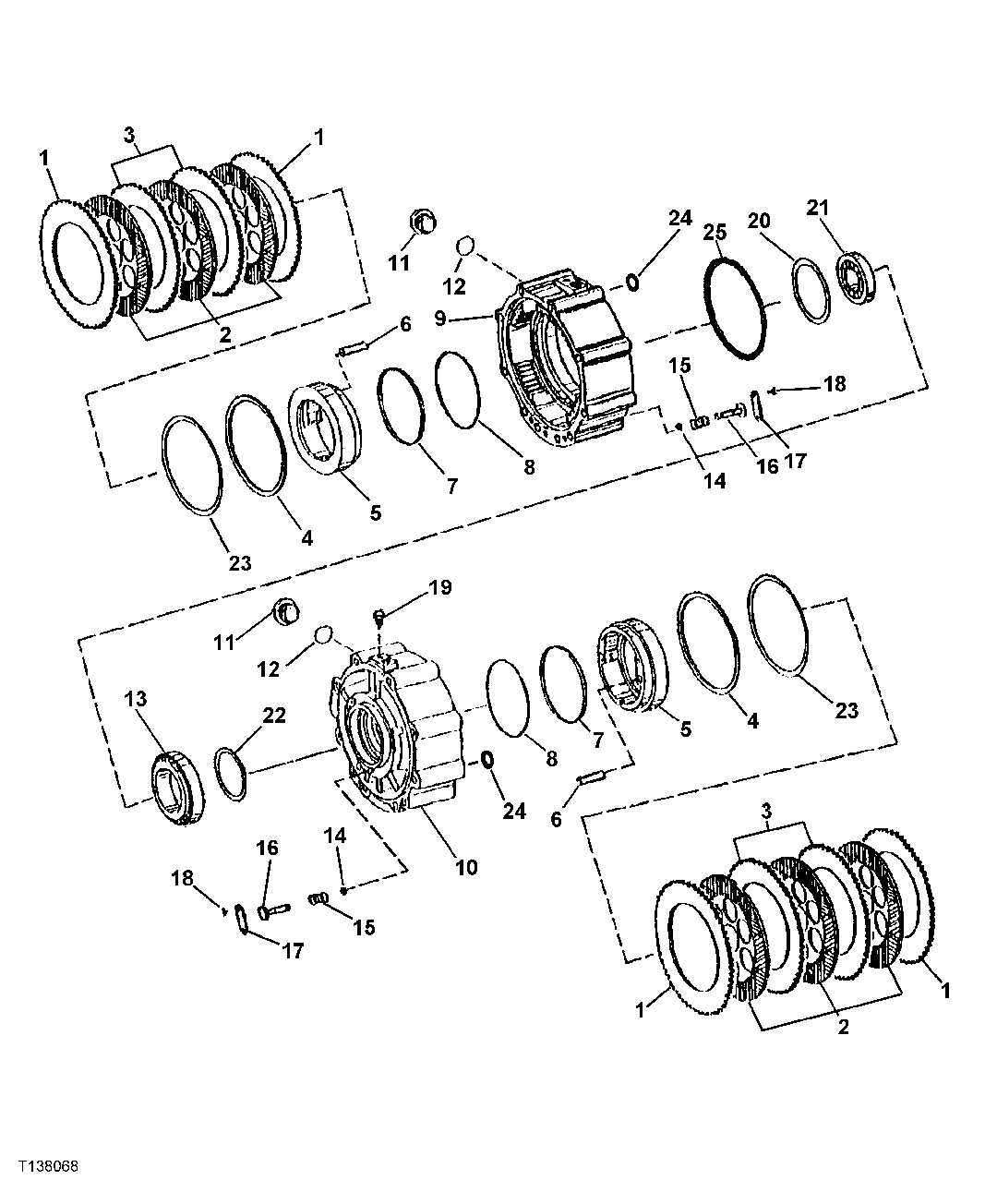

Service Brake Assembly

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T159409	4	Plate	3 mm (.118 in.)
2	AT179503	6	Brake Disk	-
3	T161233	4	Disk	4 mm (.157 in.)
4	T159402	2	Seal	-
5	T185443	2	Piston	-
6	T159399	4	Dowel Pin	-
7	T353709	2	Seal	SUB FOR T159400
8	T353713	2	Back-Up Ring	SUB FOR T159401
9	T159396	1	Housing	RH
10	T159397	1	Housing	LH
11	15M7030	2	Pipe Plug	-
12	L55580	2	O-Ring	-
13	AT179504	1	Tapered Roller Bearing	LH
14	T159407	6	Ring	-
15	T159408	6	Spring	-
16	T159406	6	Pin	-
17	T159398	6	Lock Plate	-
18	19M8425	12	Cap Screw	M6 X 16
19	T162517	2	Brake	Bleeder Fitting
20	T159425	1	Shim	TK = 1.5 mm (.059 in)
20	T159427	1	Shim	TK = 1.4 mm (.055 in.)
20	T159429	1	Shim	TK = 1.3 mm (.051 in.)
20	T159431	1	Shim	TK = 1.2 mm (.047 in)
20	T159435	1	Shim	TK = 1.0 mm (.039 in)
20	T161238	1	Shim	TK = .95 mm (.037 in.)
20	T161239	1	Shim	TK = .90 mm (.035 in)
20	T161241	1	Shim	TK = .80 mm (.031 in.)
20	T161242	1	Shim	TK =.75 mm (.030 in.)
20	T161243	1	Shim	TK = .70 mm (.028 in)
20	T161244	1	Shim	TK = .50 mm (.020 in.)
20	T161245	1	Shim	TK = .40 mm (.016 in)
20	T161246	1	Shim	TK = .30 mm (.019 in)
20	T161247	1	Shim	TK = .20 mm (.008 in.)
20	T161240	1	Shim	TK = .85 mm (.033 in.)
21	AT179505	1	Tapered Roller Bearing	RH
22	T159452	1	Shim	TK = 1.7 mm (.067 in.)
22	T159448	1	Shim	TK = 1.3 mm (.051 in.)
22	T159453	1	Shim	TK = 1.8 mm (.071 in.)
22	T183500	1	Solid Shim	TK = 2.15 mm (.085 in.)
22	T183502	1	Solid Shim	TK = 2.25 mm (.089 in.)
22	T183505	1	Solid Shim	TK = 2.4 mm (.094 in.)
22	T183506	1	Solid Shim	TK = 2.45 mm (.096 in.)
22	T183507	1	Solid Shim	TK = 2.5 mm (.098 in.)
22	T159457	1	Shim	TK = 2.8 mm (.110 in.)
22	T159459	1	Shim	TK = 3.0 mm (.118 in.)
22	T159461	1	Shim	TK = 3.2 mm (.126 in.)
22	T159463	1	Shim	TK = 3.4 mm (.134 in.)
22	T159451	1	Shim	TK = 1.6 mm (.063 in.)
22	T159450	1	Shim	TK = 1.5 mm (.060 in.)
22	T159449	1	Shim	TK = 1.4 mm (.055 in.)
22	T159447	1	Shim	TK = 1.2 mm (.047 in.)
22	T159446	1	Shim	TK = 1.1 mm (.043 in.)
22	T159442	1	Shim	TK = 1.0 mm (.040 in.)
22	T159441	1	Shim	TK = .5 mm (.020 in.)
22	T159440	1	Shim	TK = .3 mm (.012 in.)
22	T159443	1	Shim	TK = .2 mm (.008 in.)
22	T159445	1	Shim	TK = .15 mm (.006 in.)
22	T159444	1	Shim	TK = .1 mm (.004 in.)
23	T159403	2	Back-Up Ring	-
24	T159373	8	O-Ring	-
25	T159362	2	O-Ring	-
