Открытый узел

Seat Suspension with Suspended Seat

Seat Suspension with Suspended Seat

Seat Suspension with Suspended Seat

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

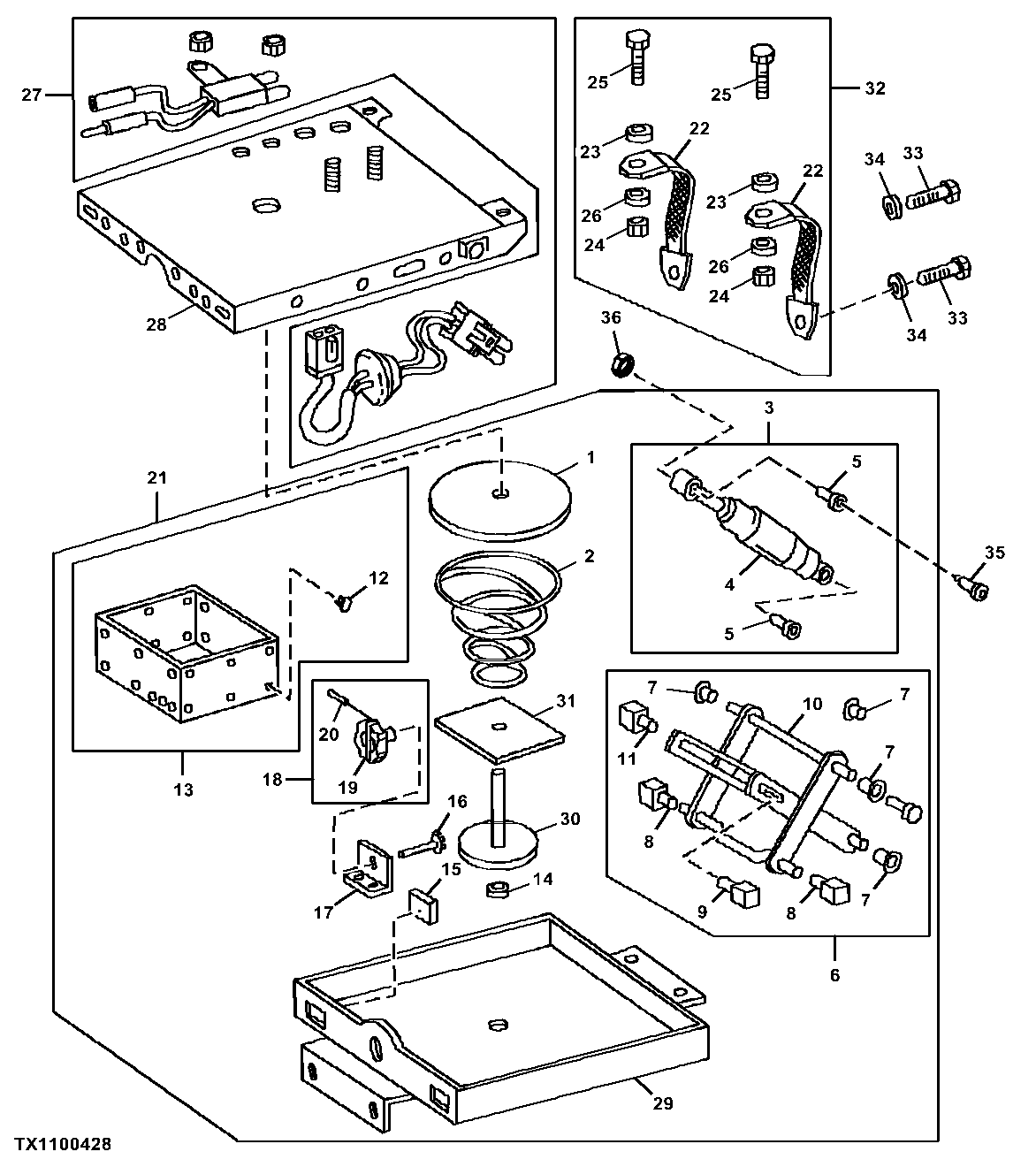

Seat Suspension with Suspended Seat

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T55208	1	PAD	-
2	AT125801	1	Spring	Regular
2	T160315	1	Spring	Heavy Duty
3	AT175436	1	Seat Shock Absorber Kit	Shock Absorber
4	-	1	Part 5	Shock
5	T55222	2	Bushing	Shock Absorber
6	AT106397	1	Bearing Kit	Bearing /Bushing
7	-	4	Part 8	-
8	-	2	Part 9	-
9	-	1	Part 10	-
10	-	1	Part 11	Scissor
11	-	1	Part 12	-
12	T63798	25	Plug	Fastener
13	AT179699	1	Boot	Vinyl
14	T158481	1	Washer	-
15	T55224	2	Bumper	-
16	AT175353	1	Gear	-
17	T55214	1	Angle	-
18	AT125805	1	Seat Knob Kit	Adjusting Knob
19	AT125829	1	Knob	-
20	25H729	1	Groove Pin	5/32" X 1", Adjusting Knob
21	AT186150	1	Kit	NLA, ORDER AT407315 OR AT407317
21	AT407317	1	Seat Kit	Cloth Components On Separate Page
21	AT407315	1	Seat Kit	Vinyl Components On Separate Page
22	-	2	Part 25	Tether
23	24H1309	2	Washer	13/32" X 1-1/16" X 0.120", SUB FOR M1340T
24	M47031	2	Lock Nut	9.525 mm (3/8")
25	19H2676	2	Cap Screw	3/8" X 1"
26	24H1305	2	Washer	13/32" X 13/16" X 0.065"
27	AT377163	1	Electrical Repair Kit	Reference DTAC Solution 78585 Rear Seat Position With Pilot Controls 2 Gray Wires 28.5 in., SUB FOR AT304776 AND AT196793 APPL
27	AT304776	1	Switch	Reference DTAC Solution 78585 Rear Seat Position Switch With Pilot Controls, INCLUDES AT196793
27	AT304775	1	Kit	Reference DTAC Solution 78585 Forward Seat Position Switch 2 Black Wires 28.5 in., SUB FOR AT192687
27	AT179694	1	Swivel Kit	Reference DTAC Solution 78585 Seat Position Switch 2 Black Wires 8 in.
28	-	1	Part 34	Upper
29	-	1	Part 35	Lower
30	-	1	Part 36	Large Base
31	-	1	Part 37	Spring Support
32	AT179693	1	Strap Kit	Tether Belt Set
33	19M7402	4	Cap Screw	M10 X 25
34	24M7239	4	Washer	10.700 X 21 X 2.500 mm
35	T58781	1	BOLT	9.525 X 57.150 mm (3/8" X 2-1/4")
36	K40003	1	Lock Nut	9.525 mm (3/8")
