Открытый узел

Low Pressure Auxiliary Return Kit (905458 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7363	2	Cap Screw	M12 X 60
2	T190702	1	Bracket	-
3	38H1276	1	Adapter Fitting	-
4	T77858	5	O-Ring	-
5	AT330793	1	Hydraulic Hose	(SUB FOR AT197926)
6	T78707	1	Nut	30.175 mm (1-3/16")
7	AT197075	1	Wiring Harness	-
8	19M8637	4	Cap Screw	M10 X 40
9	T215845	1	Bracket	(SUB FOR T190245)
10	19M7938	4	Cap Screw	M10 X 20
11	24M7239	4	Washer	10.700 X 21 X 2.500 mm
12	T76938	2	O-Ring	-
13	38H1489	2	Elbow Fitting	Old Design
13	38H1325	1	Elbow Fitting	New Design
14	U13639	2	O-Ring	-
15	AT224105	1	Filter Head	-
16	AR21837	3	Clamp	-
17	N195450	1	Tee Fitting	-
18	38H1007	1	Elbow Fitting	Old Design New Design, (REPL 38H1026)
19	U12547	1	O-Ring	-
20	38H1033	1	Tee Fitting	Old Design
20	38H1026	1	Tee Fitting	New Design
21	AT224105	1	Filter Head	Head and Filter, (SUB FOR AT223277)
22	AT308274	1	Oil Filter	(SUB FOR AT228474)
23	AT331907	1	Hydraulic Hose	(SUB FOR AT197927)
24	AT330792	1	Hydraulic Hose	(SUB FOR AT197925)
25	AT280258	1	Kit	(WHOLE GOODS)
26	19M7875	1	Cap Screw	M10 X 70, Brake Boost Fitting Not Illustrated

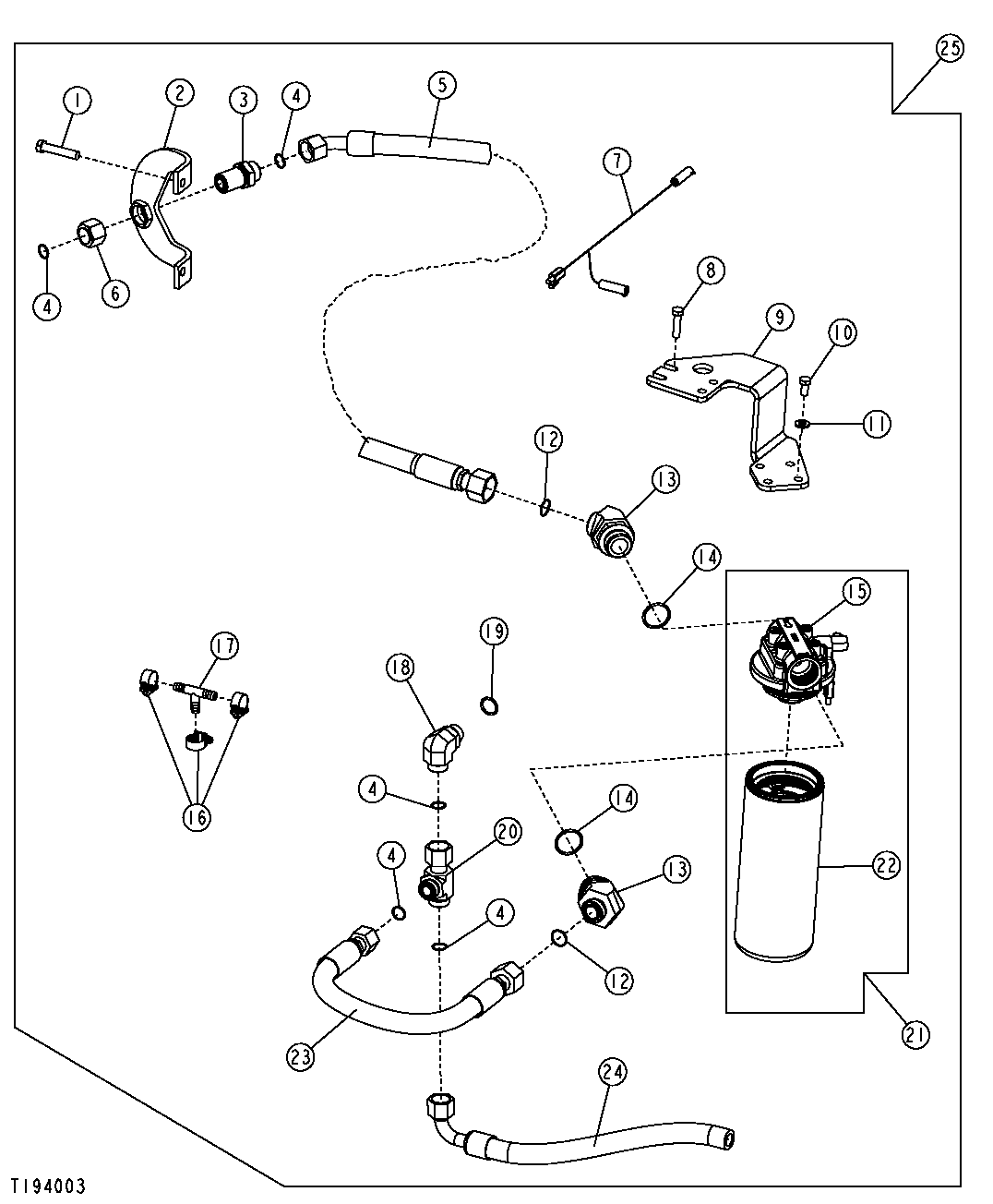

Low Pressure Auxiliary Return Kit (905458 - )

Нет текстового описания
